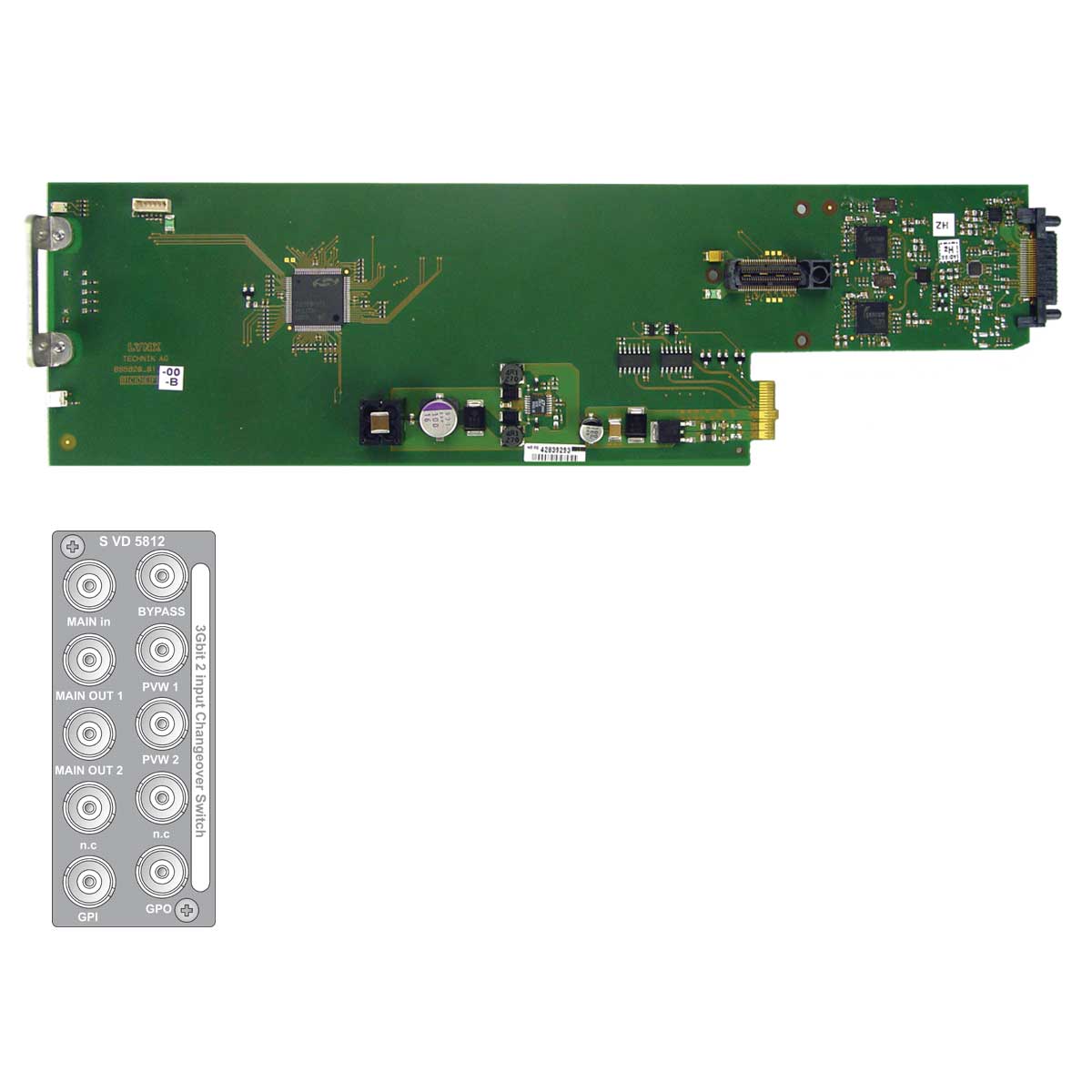

SVD 5812

2 Channel SDI Changeover Switch (SD/HD/3G)

Specialty

SDI 1.5G, SDI 270MBit, SDI 3Gbit

Documentation

Product Documentation

Features

  • Supports SDI / DVB-ASI and SMPTE 310 inputs up to 3Gbit/s
  • 2 x Inputs and 2 sets of switched outputs
  • Inputs can be reclocked or non-reclocked
  • Auto detect input video standard
  • Manual switching from external GPI trigger or from control system GUI
  • Automatic emergency switching when designated input fails
  • Select latch or automatic return when main input returns
  • GPO output trigger provided when switch operates
  • Transparently pass data between 15Mbit/s and 3Gbit/s in non- reclocked mode.
  • Input presence detection with LED indicators
  • Version available with power fail relay connecting inputs to outputs
  • Remote control and status monitoring with LYNX APPolo control system
  • Hot swappable

Description

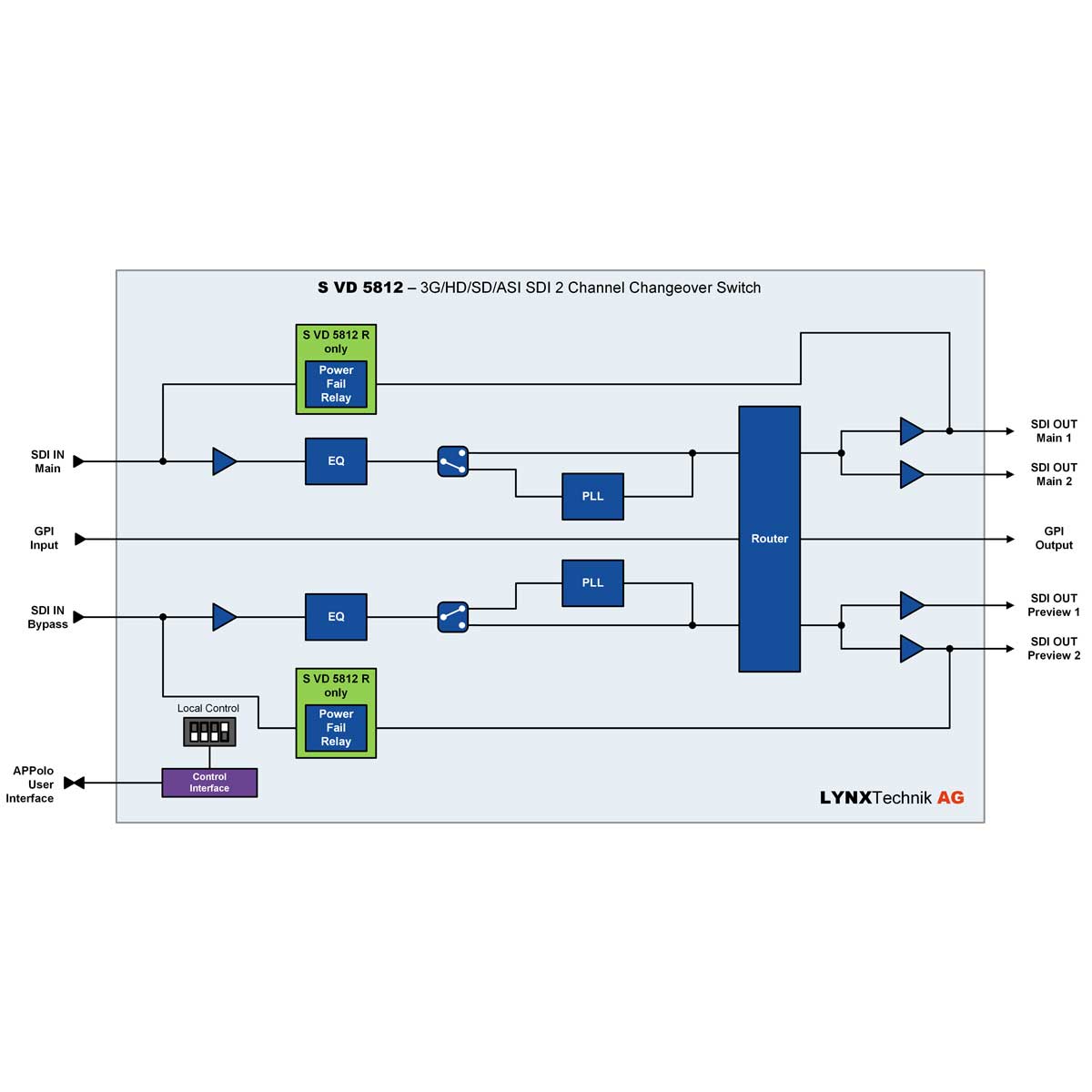

The S VD 5812 is a 2 channel changeover switch which can be automatically triggered when an input fails or manually triggered. Fully compatible with SDI / DVB-ASI and SMPTE 310 signals up to 3Gbits/s. This module is ideally suited for demanding multi-format broadcast and professional video applications.

In re-clocked mode the module will auto-detect the connected video standard. When set to non re-clocked mode the module will transparently pass data from 15Mbit/s to 3Gbit/s.

The switch can be configured to switch manually from a external GPI input trigger or from the control system GUI. When configured for emergency switching the module will automatically switch when a designated input fails. This can be set to latch permanently or switch back automatically when main input returns. A GPO output trigger is provided when the emergency switch operates.

Version available which adds a mechanical relay which will connect inputs to outputs in the event of a power failure.

Local control capability is provided via the integrated dip switch. Remote control, status monitoring and error reporting is possible when using the LYNX control system.

Accessories

Ordering Information

UPC / EANModelDescription
4250479321816SVD 58122 Channel SDI Changeover Switch (SD/HD/3G)
4250479321823SVD 5812 R2 Channel SDI Changeover Switch with Bypass Relay (SD/HD/3G)
Options
4250479324411RFR 5018 US2RU 19" Rack Frame + PSU for up to 10 Modules
4250479321410RFR 5014 US1RU 19" Rack Frame + PSU for up to 4 Modules
