RFR 5018 US
19″ 2RU Rack Frame for 10 Modules

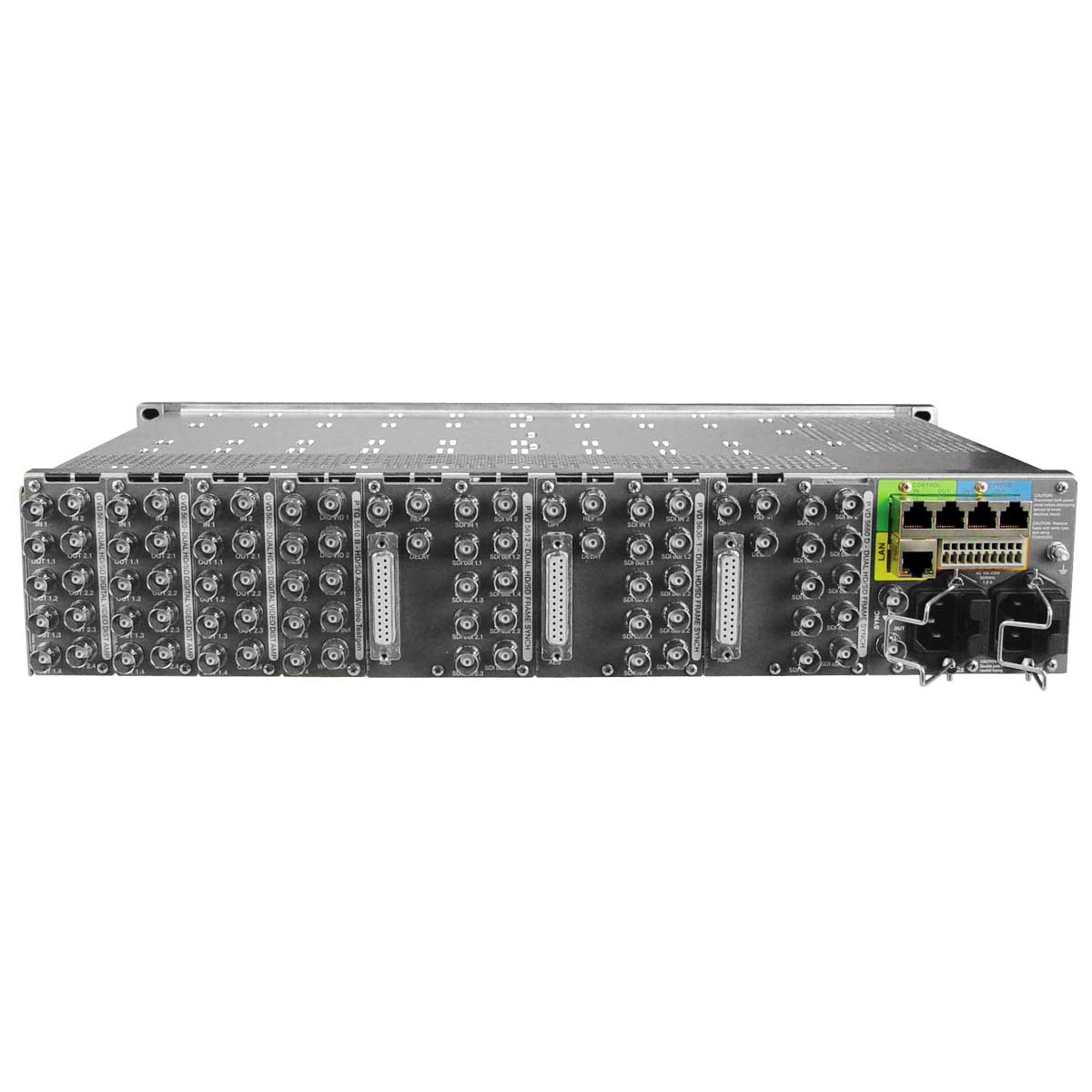

The primary building block to a Series 5000 system is the rack frame. The RFR 5018 US is a 2RU rack mount chassis which can accommodate up to 10 Series 5000 modules, plus a rack controller and primary / redundant power supplies. Each module has its own associated rear connection panel so any mixture of modules can be accommodated with no configuration restrictions.

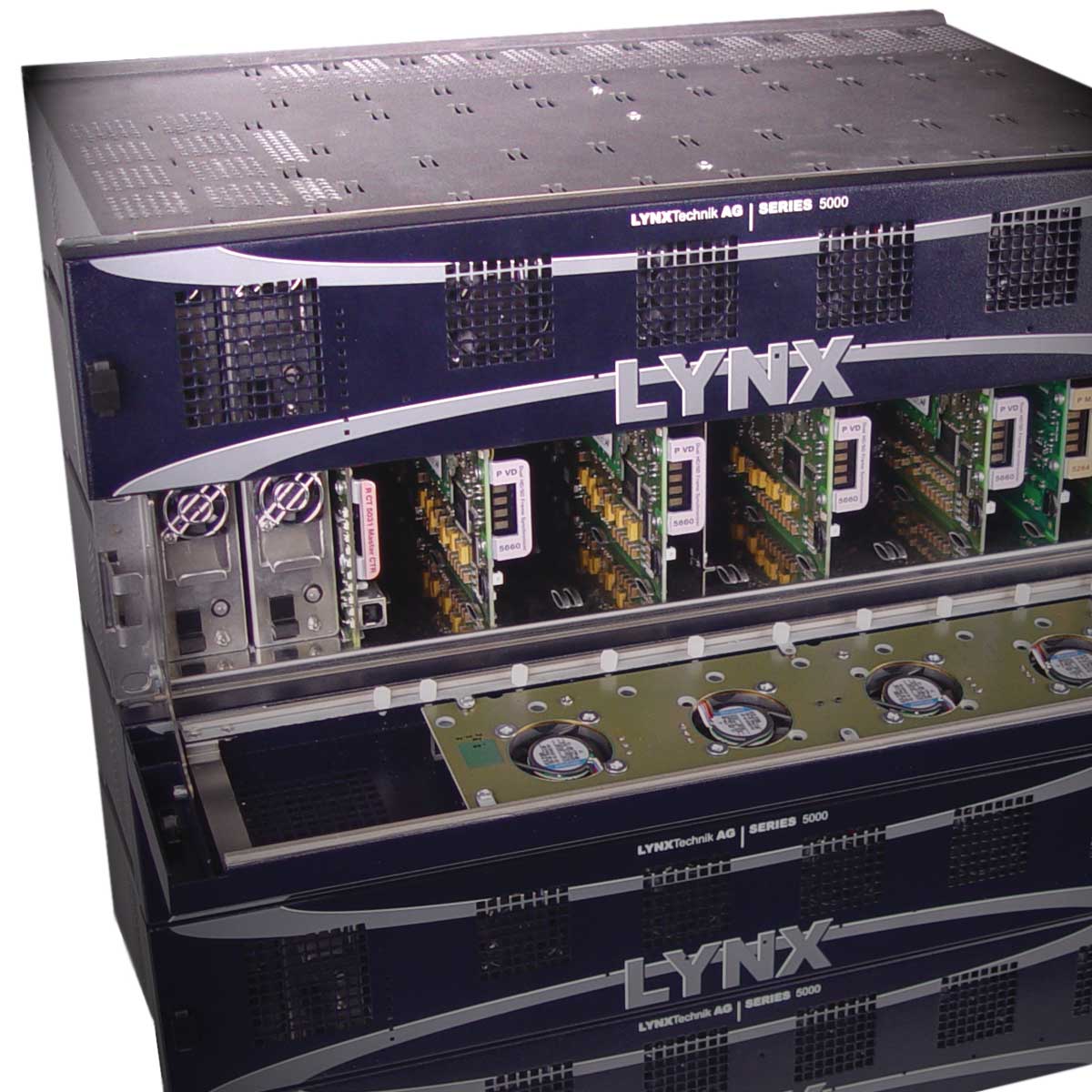

The frame features integrated cooling via 5 low noise fans housed in the front panel and also an internal fan inside the chassis. All fans are alarmed into the control system. The front panel is hinged for easy access and can be easily removed for system installation and maintenance if required.
All plug in modules, plus the primary and redundant power supply are hot swappable and are easily accessed from the front of the rack. Module alarm LED’s are visible with the front panel closed.
The rack is pre-wired for the control system, and includes the termination panel. Field upgrades to add the control system are fast and simple, its just a case of plugging in the rack controller and making the connections to the termination panel. The termination panel also includes various GPO alarm outputs.
The construction is extremely robust, suitable for studio installations and the most demanding mobile applications. The frame is constructed from non magnetic stainless steel and is fully compliant with EMC / FCC RFI interference emission regulations.

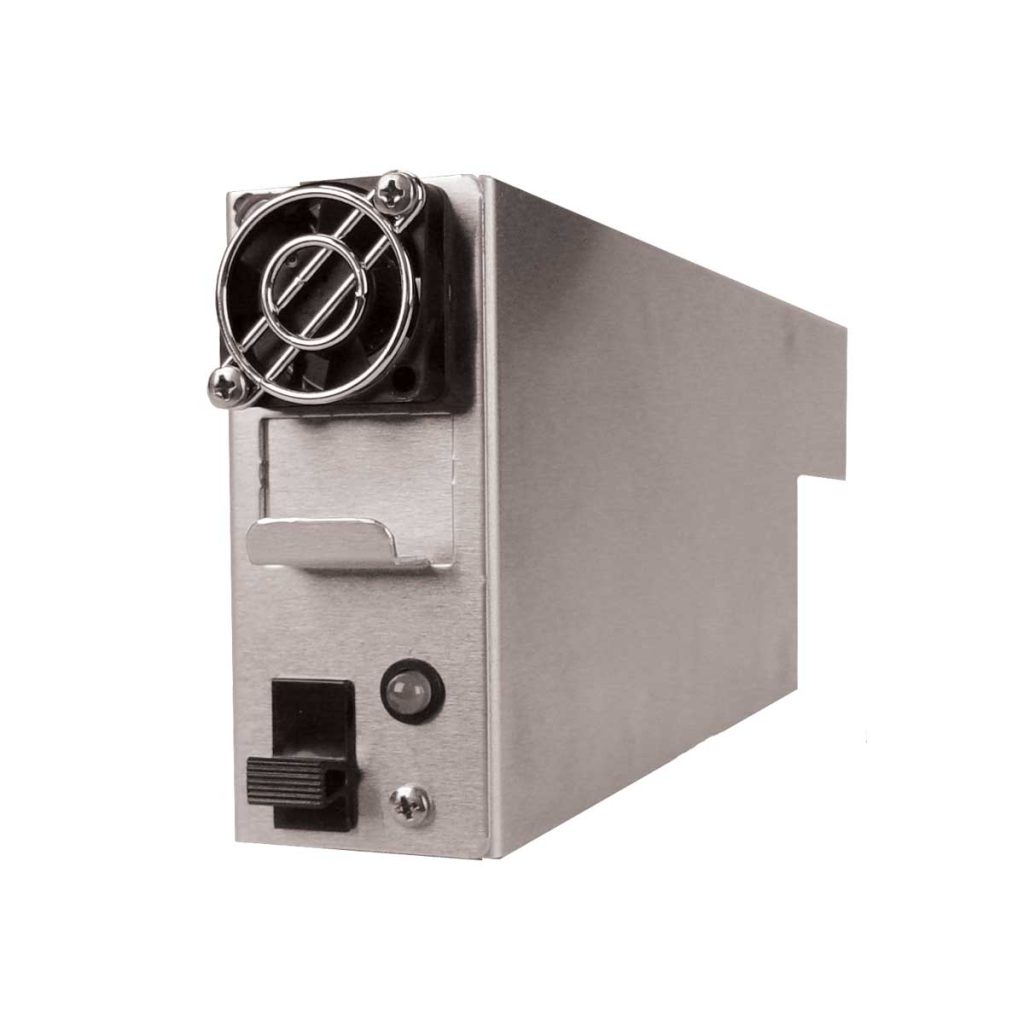

Primary power supply is included with room in the rack for a second optional RPS 5018 redundant supply. Standard IEC power cord with USA AC power plug included
No more pages to load
Key Features
- High quality steel construction, 19″ rack mount – 2RU high
- Compact, very small depth, ideal for mobile applications
- Accommodates any mixture of Series 5000 modules
- Supports up to 10 modules + controller + primary and redundant power supply
- Integrated cooling, low noise fans
- Hinged front panel, which can be removed if required
- All modules hot swappable
- Pre-wired for Control system
- Includes primary power supply with optional redundant supply
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479324411 | RFR 5018 US | 19″ 2RU Rack Frame + Primary PSU |
| Options | ||
| 4250479321434 | RCT 5023 G | Rack Controller |
| 4250479321366 | RPS 5018 | Redundant Power Supply |
Mechanical
- Size 2 RU high x 325mm deep
- Standard 19” rack mount
- Weight (empty) 4.9 kg (with single power supply)

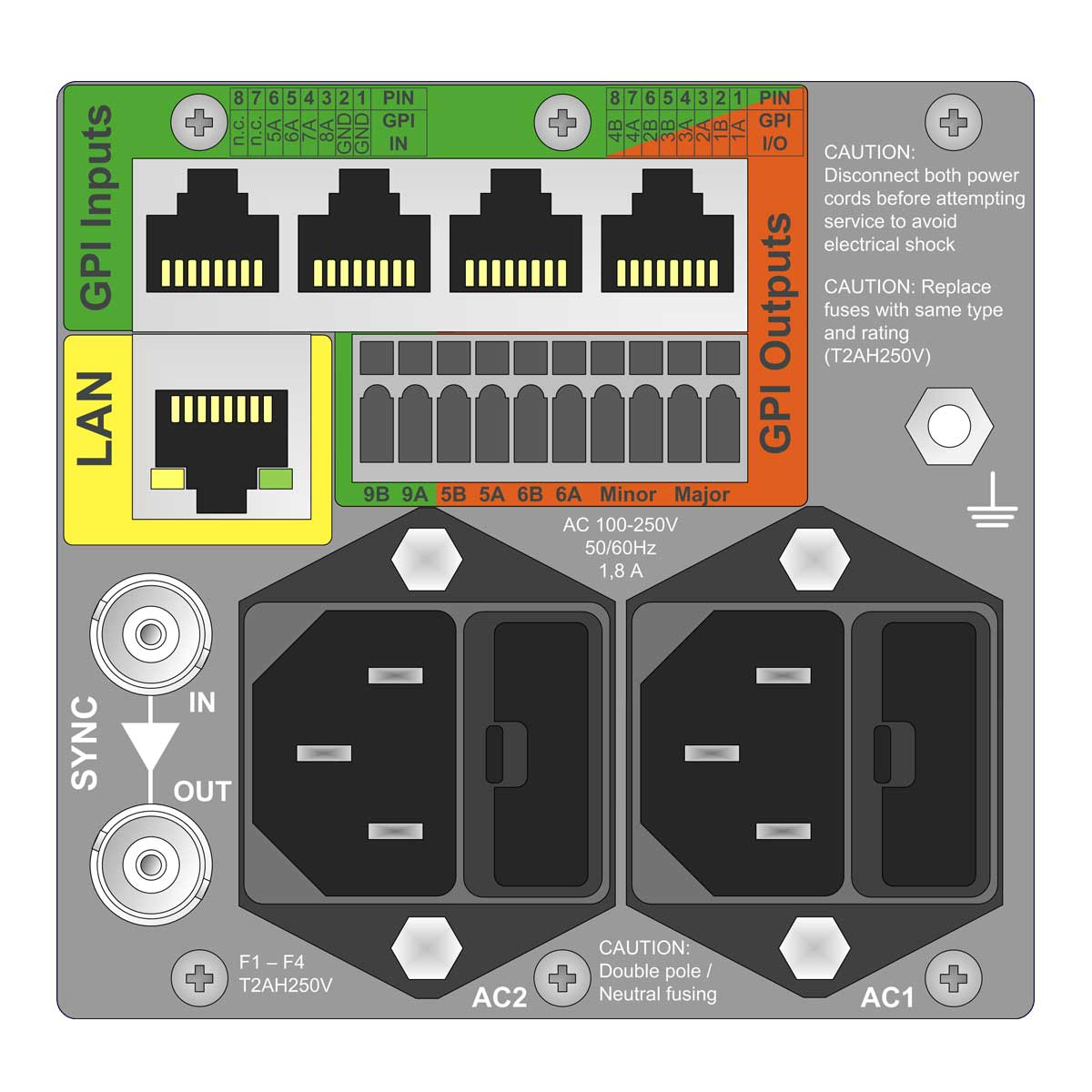

- All connections of rear of rack frame
Capacity
- Processing Modules
- Up to 10 x Series 5000 card modules
- Controller
- 1 x rack controller
- Power Supplies
- 1 x Primary (included) + 1 x redundant (optional)
Connections
- LAN connection RJ 45 (10/100 Base T) **
- Control RJ 45 input, and RJ 45 daisy chain output **
- Extend RJ 45 input, and RJ 45 daisy chain output **
- Alarms
- Alarm Major + Alarm Minor – Relay contact closures (max 220VDC/250AV 2A)
- GPO outputs / GPI input on terminal strip
- GPO outputs – Opto coupled outputs (max 60VDC/0.6A)
- GPI Input – Opto coupled input (max 60VDC/0.6A)
- Reference Input
- BNC analog sync reference input. Bi-level or Tri-level,
- Active loop output
- Primary AC input
- Standard IEC 60320 C13 AC power connector, double pole fused (2A)
- Redundant AC input
- Standard IEC 60320 C13 AC power connector, double pole fused (2A)
- Connections (modules)
- Connection type Connections are provided on the individual modules associated rear connection panel.
Electrical Specifications
- Power Input 90-250VAC 47-63Hz
- No of AC inputs 2 (completely independent for primary and redundant power supply)
- AC connector IEC 60320 C13 (10/15A)
- AC inputs are double pole fused (2.0A max)
- Power Consumption 180W max.
- Safety IEC 60950/ EN 60950/VDE0805
Ambient
- Temperature 5°C to 40°C Maintaining specifications
- Humidity 90% Max non-condensing
** Connections are not active until the required rack controller is installed
