RBO A025
25 Pin SubD Audio Adapter PCB

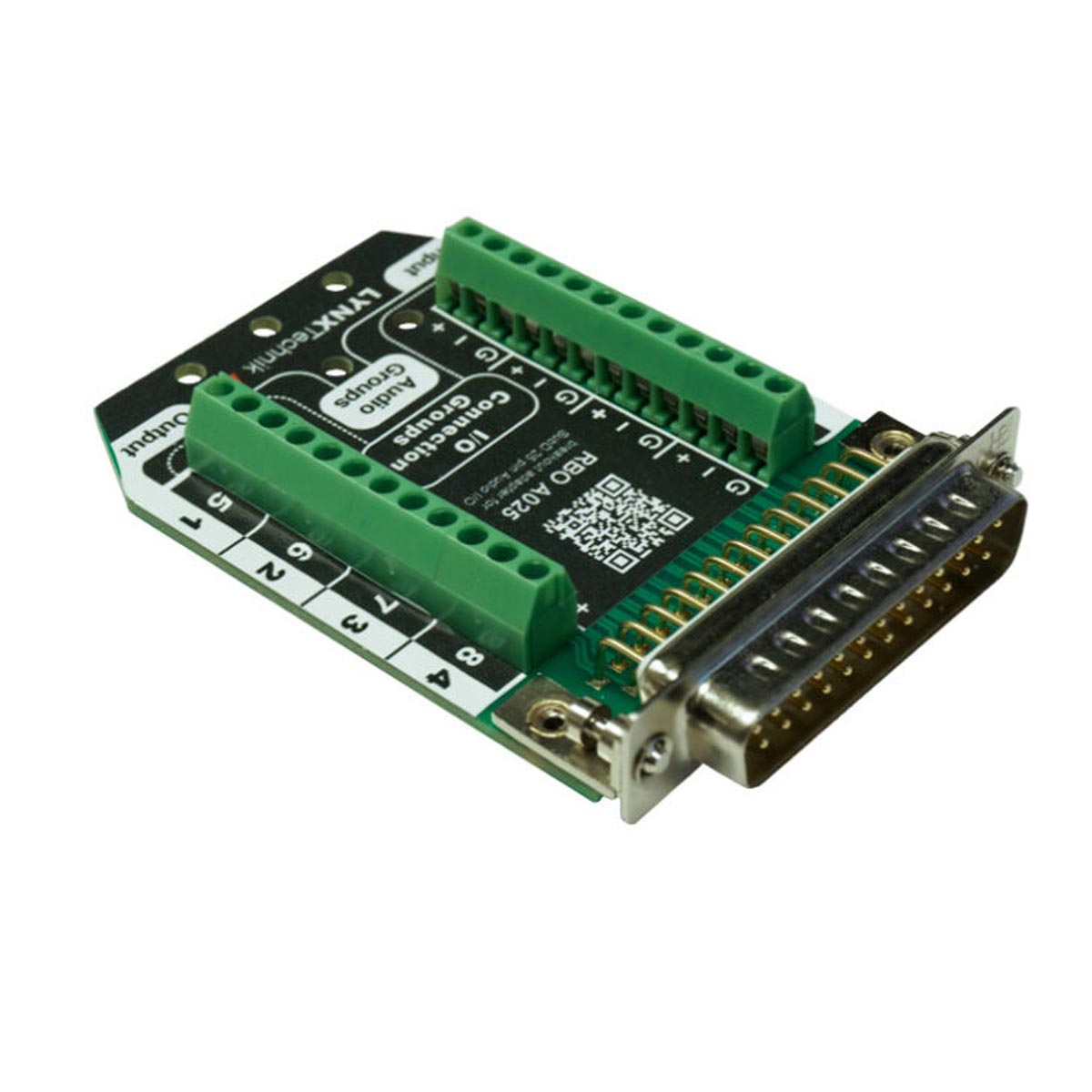

The RBO A025 is a multi-purpose breakout board for various LYNX Technik products with a 25 pin D-Sub connector.
LYNX Technik consistently uses D-Sub connectors to offer flexible audio wiring connections. The specific pinout on the RBO board depends on the product. Certain products use the I/O connection groups. Recent LYNX Technik products use the predefined Audio In/Outputs. Legacy pinout connections have been included for backward compatibility.
We recommend to route the wires through the center of the PCB and secure them with tie-wraps (zip ties) through the holes provided. All connections are balanced audio and the +/-/GND designation is marked for each connection on the PCB.
Key Features
- Easy to use adapter for AES or analog audio cabling
- 8 x balanced audio connections available
- For use with a variety of LYNX Technik products
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479328860 | RBO A025 | 25 Pin SubD Audio Adapter PCB |
Refer to Quick Reference
