PVD 5802

Dual Input SDI Frame Synchronizer (SD/HD/3G)

Specialty

Frame Synchronizer, SDI 1.5G, SDI 270MBit, SDI 3Gbit

Documentation

Product Documentation

Features

  • Supports SDI formats up to 3Gbit (auto-detect)
  • Two SDI inputs (switchable)
  • Robust “flywheel” synchronization for a wide variety of problematic sources
  • “Cross lock” compatible reference input
  • All 16 channels of audio de-embedded from SDI input, delayed to match video processing delay and re-embedded
  • 5 x SDI outputs provided
  • Integrated test pattern generator
  • Auto-tracking audio delay with no “pops” or “clicks” in audio even when dropping and adding frames
  • Up to 62 frames of programmable delay
  • 2 external GPI inputs, with choice of GPI connector
  • Remote control and status monitoring with LYNX APPolo control system
  • Hot swappable

Description

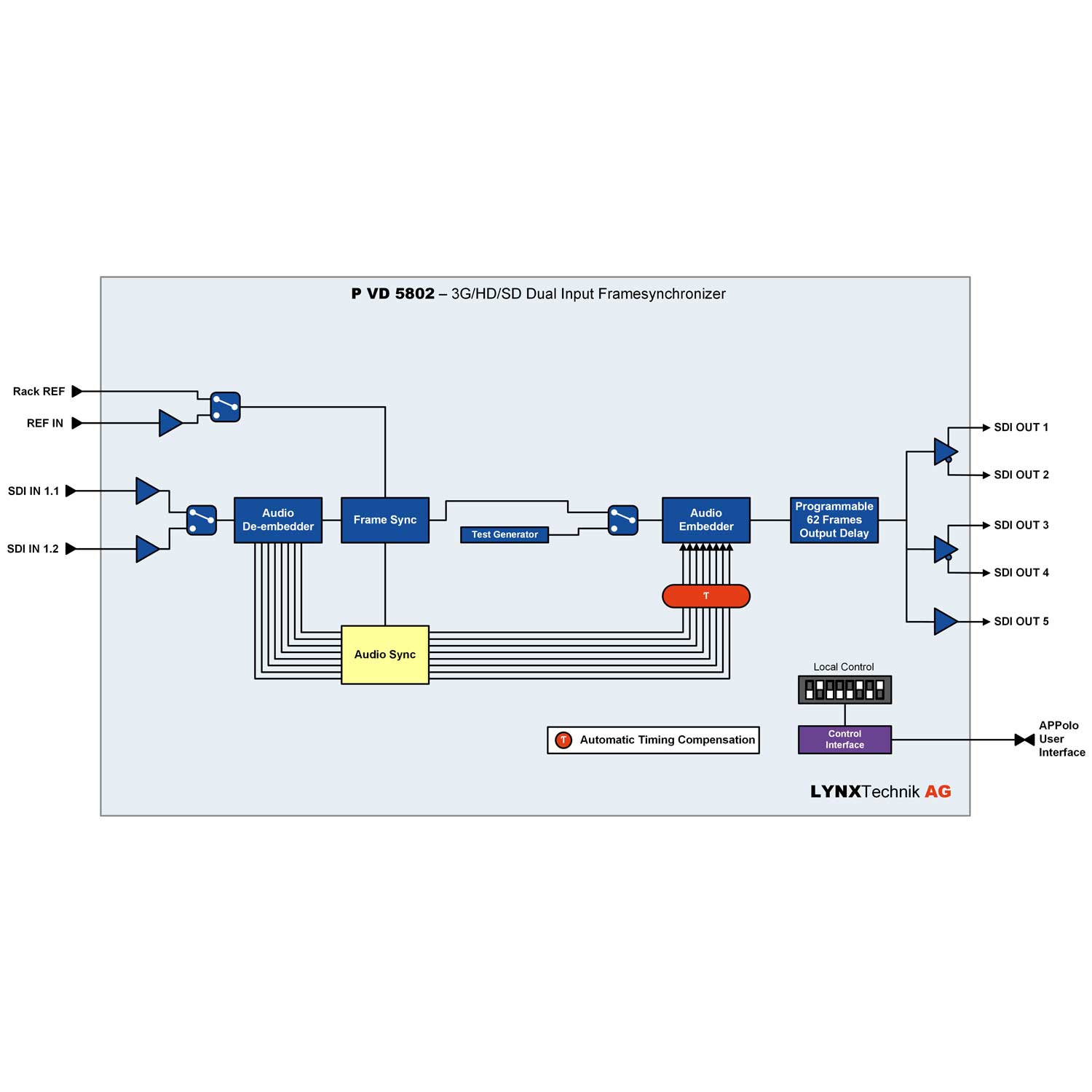

The P VD 5802 is a low cost utility SDI frame synchronizer which can be used for basic SDI synchronization issues in broadcast. The module offers multi-format support for SDI formats up to 3Gbit/s (auto-detect)

The module utilizes robust “flywheel” synchronization which can accommodate a wide variety of poor quality asynchronous SDI sources. All embedded audio is extracted and delayed automatically to match the video processing delay. Audio is free from disturbances even when dropping and adding frames.

The module also provides up to 62 frames of programmable output delay, adjustable in frames, lines and pixels. Microprocessor control and on-board Flash RAM enable configurations and settings to be stored within the module.

2 x GPI inputs are provided with a choice of GPI connection. Store and recall (via GPI) specific module settings (programmed settings are made using the APPolo control system)

Full remote control, status monitoring and error reporting is possible when using the LYNX APPolo Control System.
.
