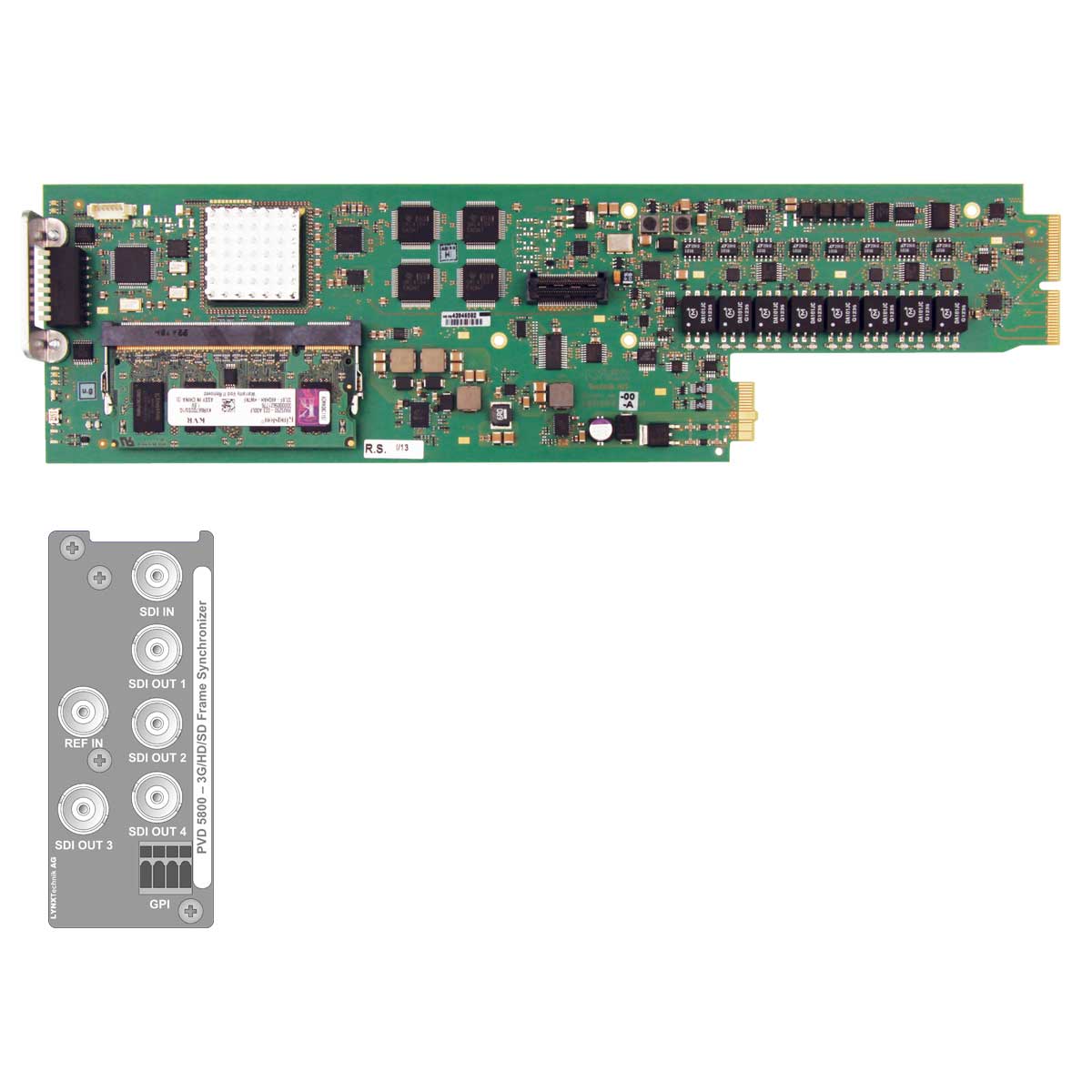

PVD 5800
3G-SDI Frame Synchronizer

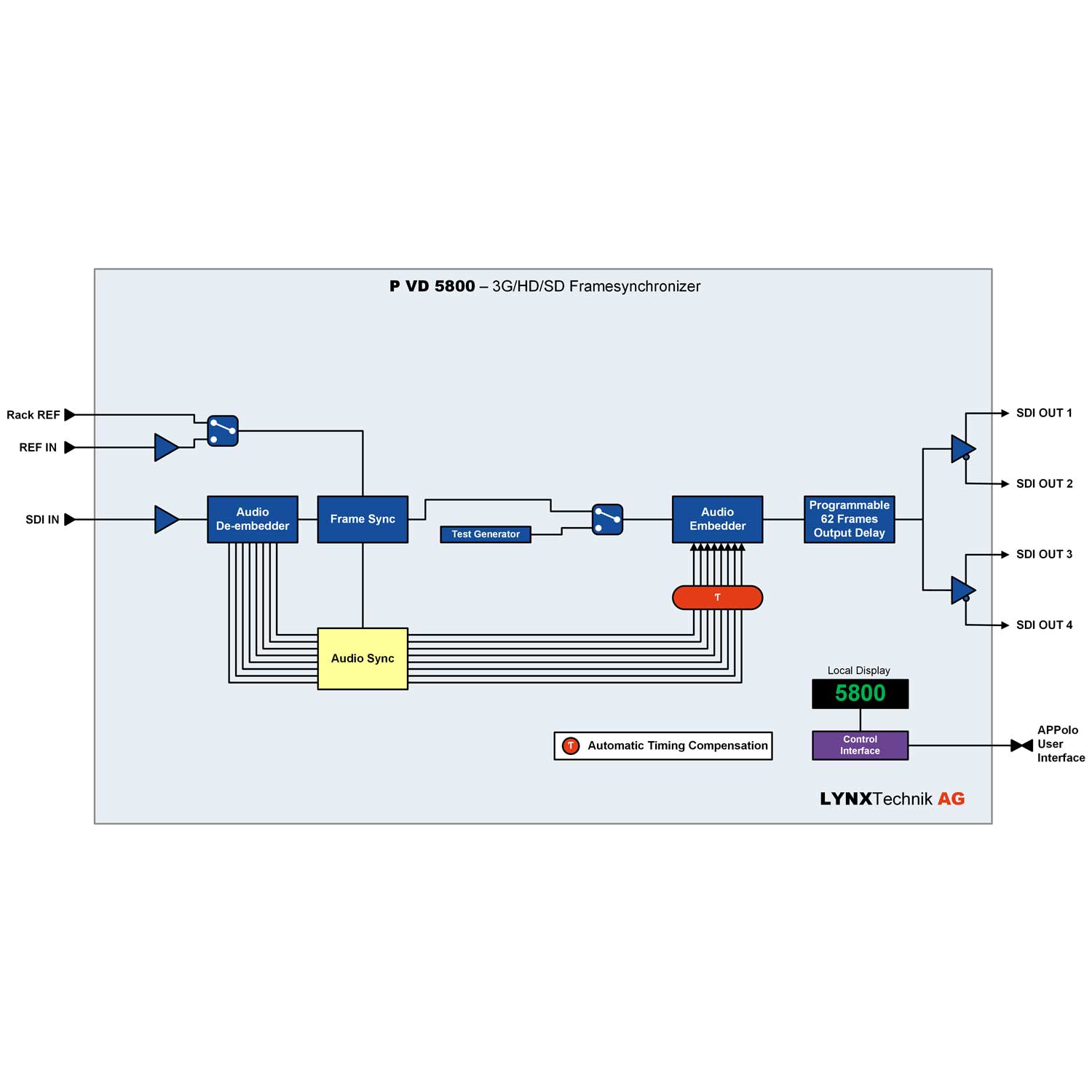

The PVD 5800 is a low cost utility SDI frame synchronizer which can be used for basic SDI synchronization issues in broadcast. The module offers multiformat support for SDI formats up to 3Gbit/s (auto-detect)
The module utilizes robust “flywheel” synchronization that will accommodate a wide variety of low quality asynchronous SDI sources. All embedded audio is extracted and delayed automatically to match the video processing delay. Audio is free from disturbances even when dropping and adding frames.
The module also provides up to 62 frames of programmable output delay, adjustable in frames, lines and pixels.
Microprocessor control and on-board Flash RAM enable configurations and settings to be stored within the module.
Remote control, status monitoring and error reporting is possible when using the LynxCentraal Control System.
Key Features
- Supports SDI formats up to 3Gbit (auto-detect)
- Robust “flywheel” synchronization for a wide variety of problematic sources
- “Cross lock” compatible reference input
- All 16 channels of audio de-embedded from SDI input, delayed to match video processing delay and re-embedded
- 4 x SDI outputs provided
- Integrated test pattern generator
- Auto-tracking audio delay with no “pops” or “clicks” in audio even when dropping and adding frames
- Up to 62 frames of programmable delay
- Remote control and status monitoring with LynxCentraal control system
- Hot swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479321984 | PVD 5800 | SDI Frame Synchronizer (3G/HD/SD) |
| Options | ||
| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
Supported Video Formats
- 2K 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080PsF 23.98, 24, 25, 29.97, 30
- HD 1920x1080i 50, 59.94, 60
- HD 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- SD 720x625i 50
- SD 720x525i 59.94
SDI Video Input
- SMPTE, 292M, 424M, 259M with automatic video format and standard detection
- YCbCr 4:2:2
- 10-bit
- 3G-SDI Level A or B Dual Link
- One Input 75 Ohm BNC connector
- Return loss
- > 15dB (270Mbit)
- > 10dB (2.97Gbit)
SDI Video Outputs
- Four outputs 75 Ohm BNC connectors
- SMPTE, 292M, 424M, 259M
- Output format Follows input format
- Timing jitter
- < 0.2UI (270Mbit)
- < 1.0UI (1.48Gbit)
- < 2.0UI (2.97GBit)
- Alignment jitter
- < 0.2UI (270Mbit)
- < 0.2UI (1.48Gbit)
- < 0.3UI (2.97GBit)
- Return loss
- > 15dB (270Mbit),
- >10dB (2.97Gbit)
Reference Input
- Signal type Analog bi-level (SDTV) or tri-level (HDTV)
- Auto-detect and cross lock compatible
- 1 external input or 1 internal input (rack frame reference)
- Connection, 75 Ohm BNC
Audio Processing
- De-embedder
- All 16 audio channels are de-embedded from SDI input
- Embedder
- All 16 audio channels re-embedded into output (1 to 1)
- Audio delay Auto track video processing delay
Video Delay
- Fixed delay Frame sync mode = 1 frame
- Line sync mode = 0.5 frame
- Adjustable delay Up to 62 frames of delay manually adjustable in frame / line / pixel increments
Electrical Specifications
- Operating voltage 12 VDC
- Power consumption < 10W
- Safety IEC 60950/ EN 60950/VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g (4.2oz), connector plate 50g (1.8oz)
Ambient
- Temperature 5°C to 40°C (41°F – 104°F) maintaining specifications
- Humidity 90% maximum, non-condensing
