PVD 5400 O

12G-SDI Frame Synchronizer with Fiber I/O

Datasheet
Manual

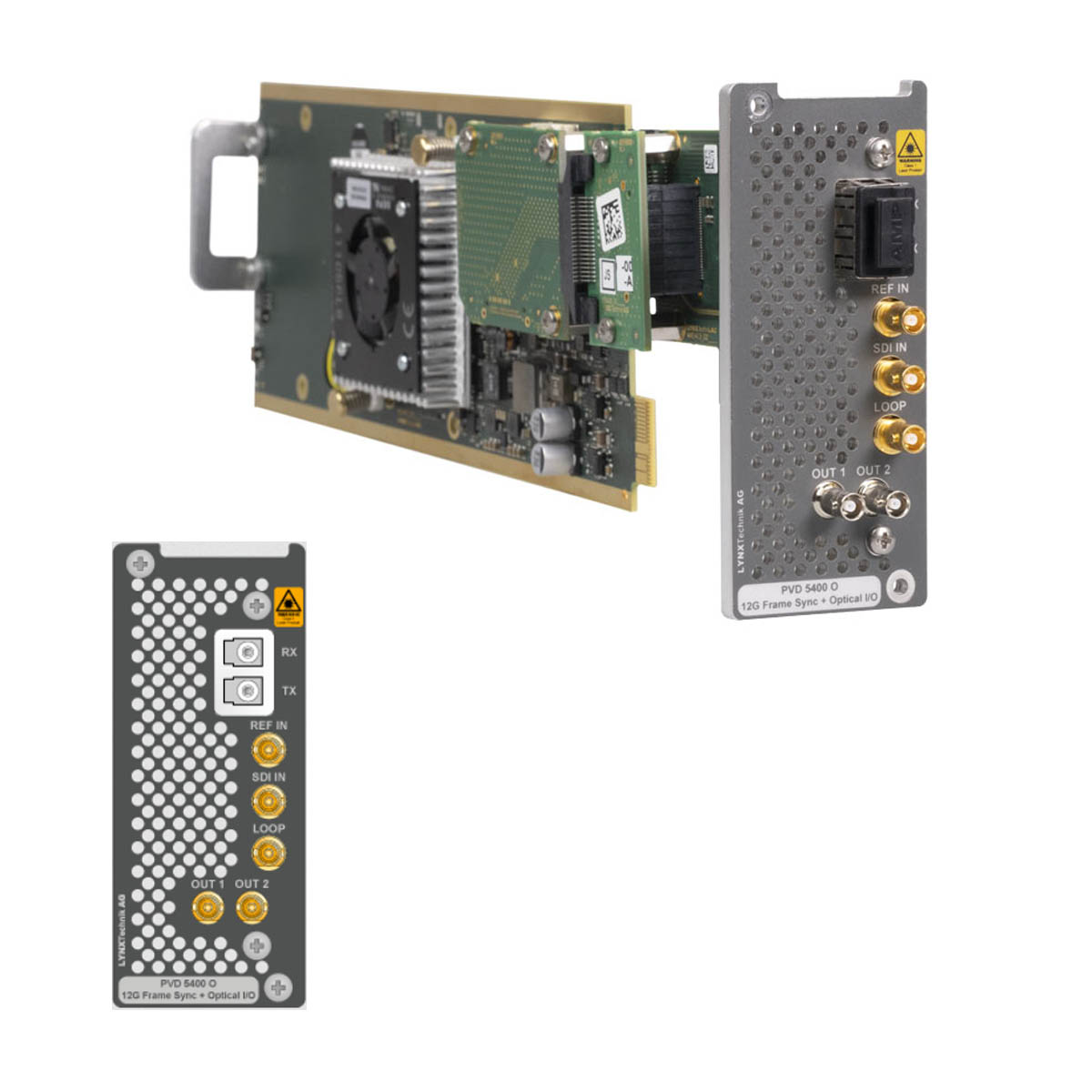

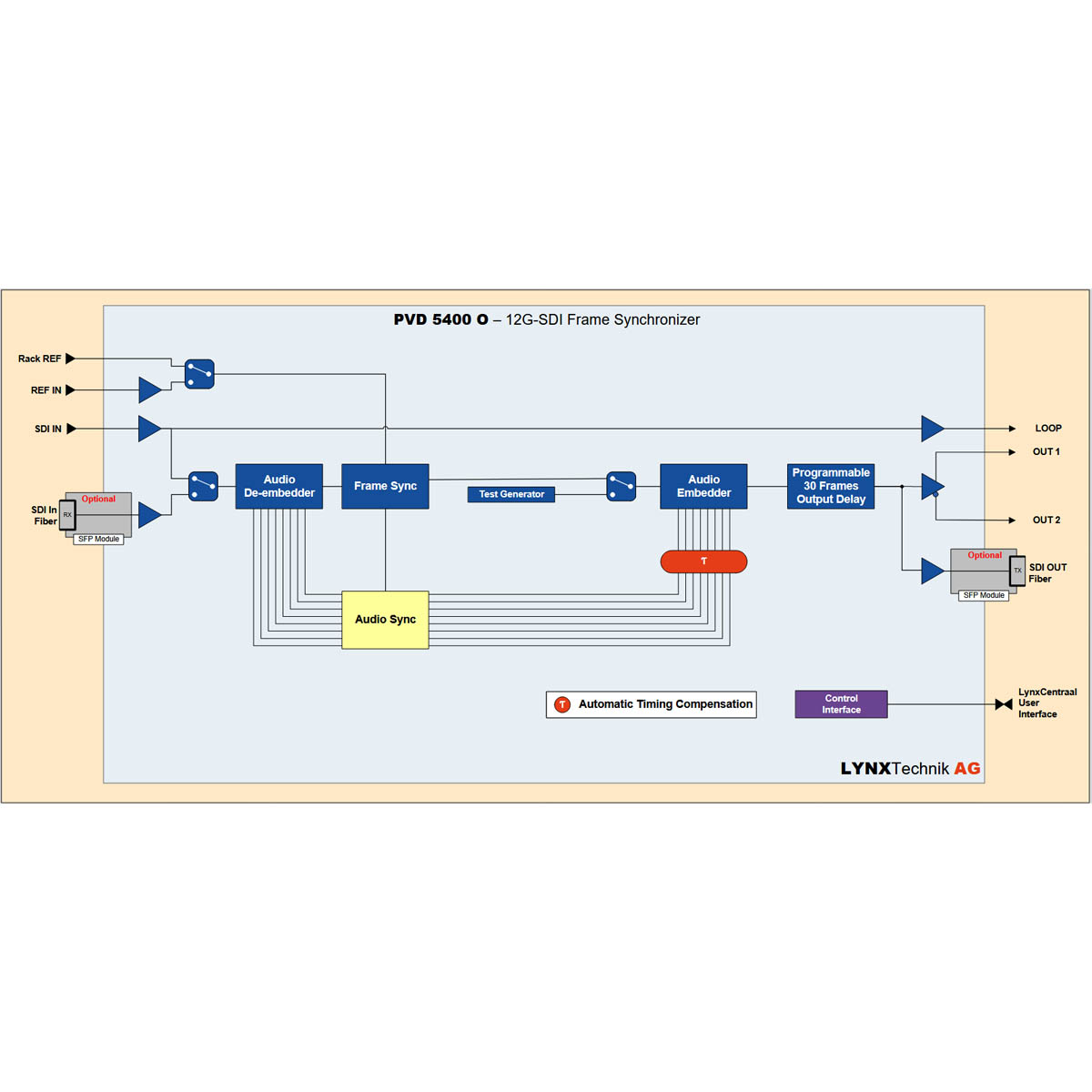

The PVD 5400 O is a 12G-SDI frame synchronizer for professional applications in the Broadcast and Post Production industry. It support 12G-SDI video formats up to 4K DCI in 4:2:2 and 4:4:4 chroma sub-sampling as well as 10 and 12-bit depth. The card module can generate Test patterns when no input signal is present.

The frame synchronizer utilizes robust “flywheel” algorithms that will accommodate a wide variety of low quality asynchronous SDI sources. All embedded audio is extracted and delayed automatically to match the video processing delay. The PVD 5400 provides up to 30 frames of programmable output delay adjustable in frames, lines and pixels.

The module is fully compatible with LynxCentraal. It can be configured, controlled and updated using Windows or MacOS.

Loading...

Accessories

No more pages to load

Key Features

  • Supports 12G/6G/3G/1.5G/SD-SDI Formats
  • Optional Fiber I/O
  • Robust “flywheel” synchronization
  • “Cross lock” compatible reference input
  • Integrated Test Pattern Generator
  • Audio is delayed to track video synchronizer automatically
  • Auto-tracking Audio delay with no “pops” or “clicks” when adding and dropping frames
  • Up to 30 frames of programmable delay
  • Monitor and Control using the powerful and intuitive Lynx Centraal application
  • Full SNMP support when used with the LynxCentraal control system
  • Hot Swappable

Ordering Information

UPC / EAN Model Description
4250479329232 PVD 5400 O 12G SDI Frame Synchroniser with Fiber I/O
Options

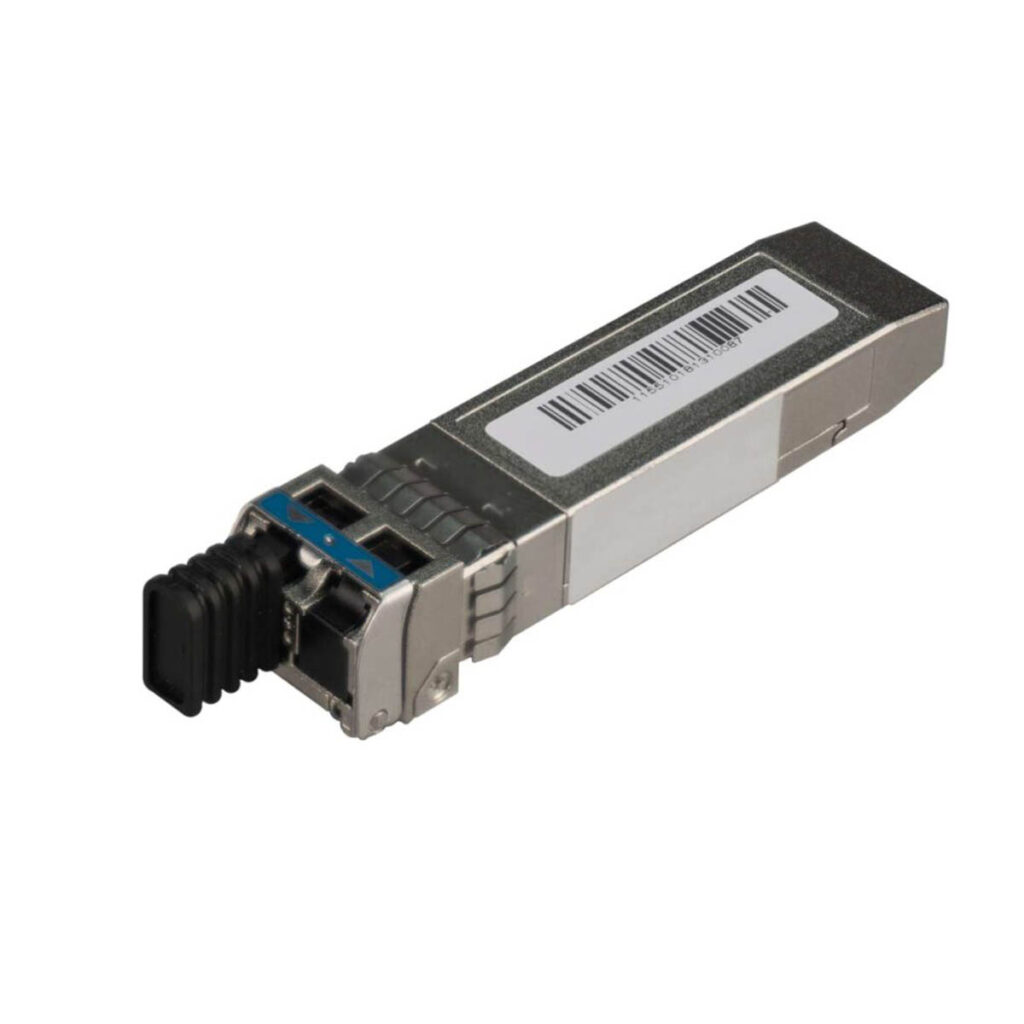

4250479325036 OH-TX-12G-LC 12G SDI Fiber Transmitter 1310nm LC

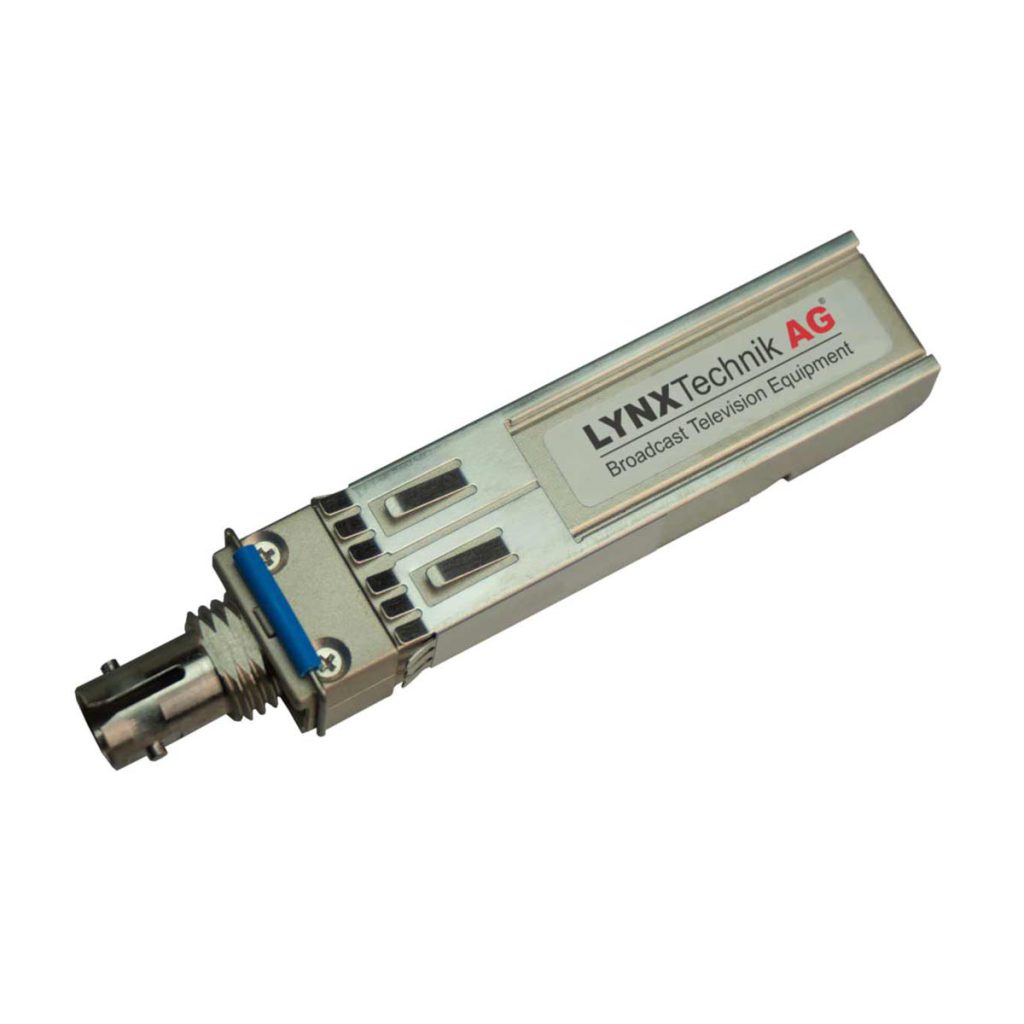

4250479327528 OH-TX-12G-ST 12G SDI FiberTransmitter 1310nm ST

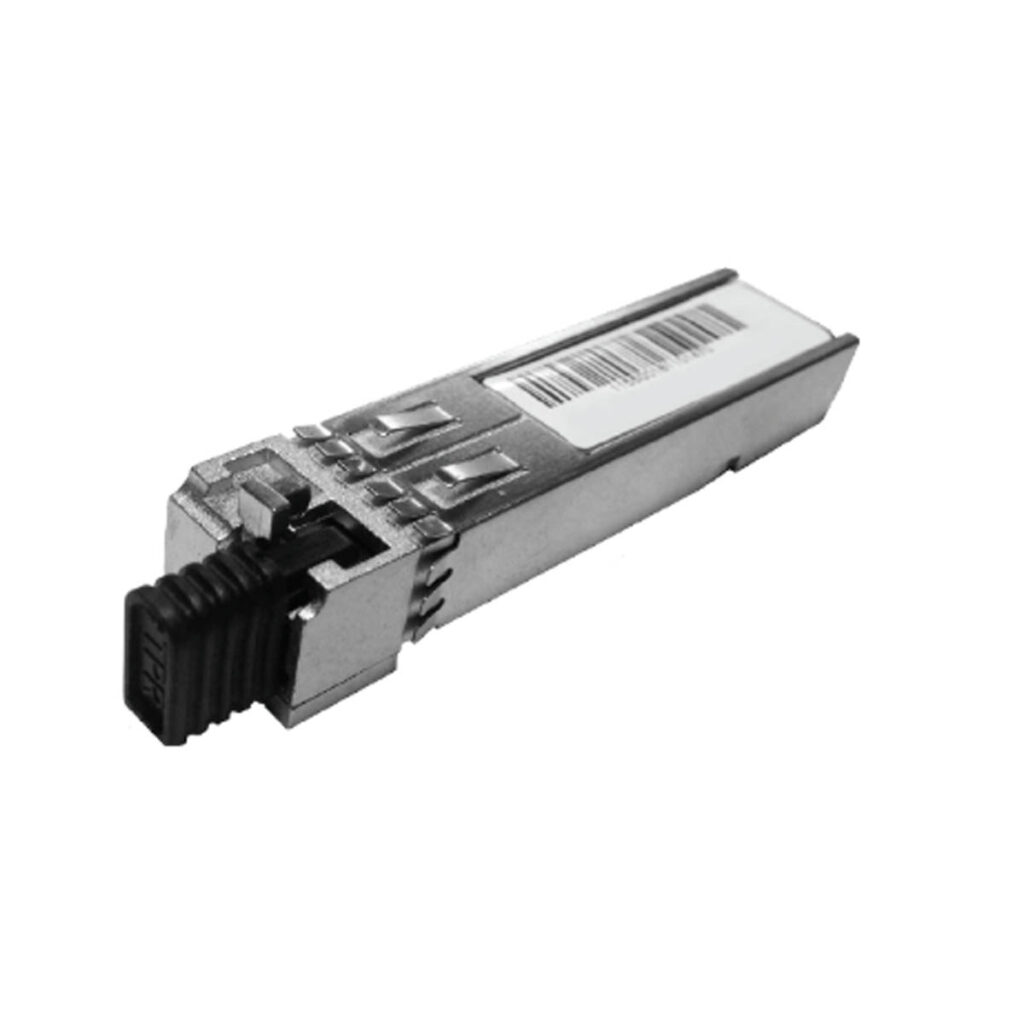

4250479325043 OH-RX-12-LC 12G SDI Fiber Receiver LC
4250479327511 OH-RX-12-ST 12G SDI Fiber Receiver ST
4250479325029 OH-TR-12G-LC 12G SDI Fiber Transceiver 1310nm LC
CWDM TX options

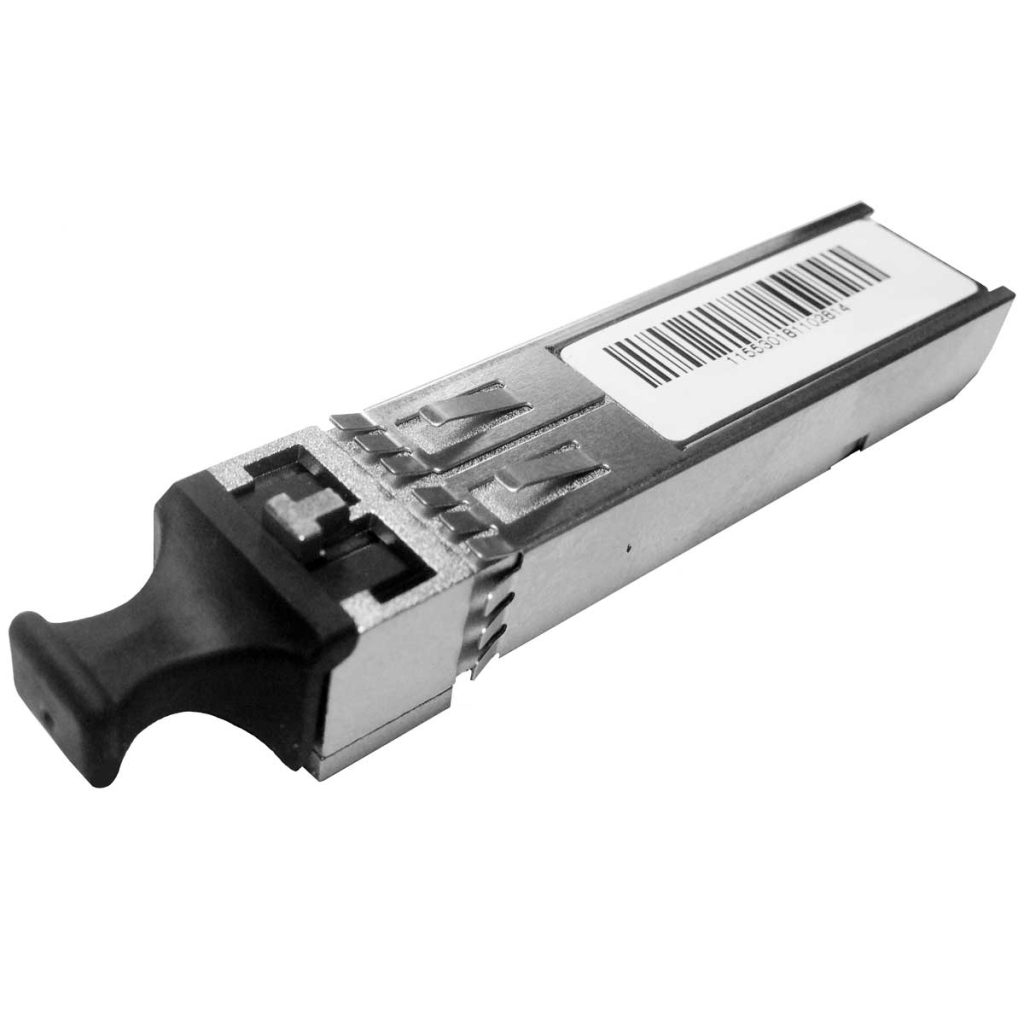

4250479325630 OH-TX-12-1270 SDI TX Fiber SFP (CWDM) 1270nm
4250479325647 OH-TX-12-1290 SDI TX Fiber SFP (CWDM) 1290nm
4250479325654 OH-TX-12-1310 SDI TX Fiber SFP (CWDM) 1310nm
4250479325661 OH-TX-12-1330 SDI TX Fiber SFP (CWDM) 1330nm
4250479327979 OH-TX-12-1350 SDI TX Fiber SFP (CWDM) 1350nm
4250479327986 OH-TX-12-1370 SDI TX Fiber SFP (CWDM) 1370nm
4250479327993 OH-TX-12-1390 SDI TX Fiber SFP (CWDM) 1390nm
4250479328006 OH-TX-12-1410 SDI TX Fiber SFP (CWDM) 1410nm
4250479328013 OH-TX-12-1430 SDI TX Fiber SFP (CWDM) 1430nm
4250479328020 OH-TX-12-1450 SDI TX Fiber SFP (CWDM) 1450nm
4250479328037 OH-TX-12-1470 SDI TX Fiber SFP (CWDM) 1470nm
4250479328044 OH-TX-12-1490 SDI TX Fiber SFP (CWDM) 1490nm
4250479328051 OH-TX-12-1510 SDI TX Fiber SFP (CWDM) 1510nm
4250479328068 OH-TX-12-1530 SDI TX Fiber SFP (CWDM) 1530nm
4250479325685 OH-TX-12-1550 SDI TX Fiber SFP (CWDM) 1550nm
4250479325692 OH-TX-12-1570 SDI TX Fiber SFP (CWDM) 1570nm
4250479325708 OH-TX-12-1590 SDI TX Fiber SFP (CWDM) 1590nm
4250479325715 OH-TX-12-1610 SDI TX Fiber SFP (CWDM) 1610nm
CWDM TR Options
4250479326552 OH-TR-12G-1270 SDI TR Fiber SFP (CWDM) 1270nm
4250479326569 OH-TR-12G-1290 SDI TR Fiber SFP (CWDM) 1290nm
4250479326576 OH-TR-12G-1310 SDI TR Fiber SFP (CWDM) 1310nm
4250479326583 OH-TR-12G-1330 SDI TR Fiber SFP (CWDM) 1330nm
4250479326682 OH-TR-12G-1350 SDI TR Fiber SFP (CWDM) 1350nm
4250479326699 OH-TR-12G-1370 SDI TR Fiber SFP (CWDM) 1370nm
4250479326705 OH-TR-12G-1390 SDI TR Fiber SFP (CWDM) 1390nm
4250479326712 OH-TR-12G-1410 SDI TR Fiber SFP (CWDM) 1410nm
4250479326729 OH-TR-12G-1430 SDI TR Fiber SFP (CWDM) 1430nm
4250479326736 OH-TR-12G-1450 SDI TR Fiber SFP (CWDM) 1450nm
4250479326743 OH-TR-12G-1470 SDI TR Fiber SFP (CWDM) 1470nm
4250479326750 OH-TR-12G-1490 SDI TR Fiber SFP (CWDM) 1490nm
4250479326767 OH-TR-12G-1510 SDI TR Fiber SFP (CWDM) 1510nm
4250479326774 OH-TR-12G-1530 SDI TR Fiber SFP (CWDM) 1530nm
4250479326781 OH-TR-12G-1550 SDI TR Fiber SFP (CWDM) 1550nm
4250479326798 OH-TR-12G-1570 SDI TR Fiber SFP (CWDM) 1570nm
4250479326804 OH-TR-12G-1590 SDI TR Fiber SFP (CWDM) 1590nm
4250479326811 OH-TR-12G-1610 SDI TR Fiber SFP (CWDM) 1610nm

Supported Video Formats

  • 4K     4096x2160p      23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • UHD  3840x2160p      23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • 2K     2048x1080p      23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • HD    1920x1080p      23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • HD    1920x1080PsF  23.98, 24, 25, 29.97, 30
  • HD    1920x1080i        50, 59.94, 60
  • HD    1280x720p         23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • SD    720x625i            50
  • SD    720x525i            59.94

SDI Video Input

  • SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081-1, SMPTE 2082-1
  • YCbCr 4:2:2 10-bit
  • YCbCr/RGB 4:4:4 10/12-bit
  • 3G-SDI Level A or B Dual Link
  • Automatic video format and standard detection
  • No.of inputs 1x micro BNC or 1x optional fiber input
    • Input connector (electrical) micro BNC, 75 Ohms
    • Input connector (optical) LC / single-mode (optional)
  • Return loss
    • SD (270Mbit) < 15dB
    • 5G (1.48Gbit) < 15dB
    • 3G (2.97Gbit) < 10dB
    • 12G (11.88Gbit) < 4dB
  • Cable equalization
    • SD (270Mbit) = 320m
    • 5G (1.48Gbit) = 250m
    • 3G (2.97Gbit) = 110m
    • 12G (11.88Gbit) = 70m

SDI Video Outputs

  • No.of outputs 2x micro BNC and 1x optional fiber outputs, 1x loop output
  • Signal type
  • Output format Follows input format
  • Connector (electrical) microBNC, 75 Ohm
  • Connector (optical) LC / singlemode (optional)
  • Timing jitter
    • SD (270Mbit) < 0.2UI
    • 5G (1.48Gbit) < 1.0UI
    • 3G (2.97Gbit) < 2.0UI
    • 12G (11.88Gbit) < 2.0UI
  • Alignment jitter
    • SD (270Mbit) < 0.2UI
    • 5G (1.48Gbit) < 0.2UI
    • 3G (2.97Gbit) < 0.3UI
    • 12G (11.88Gbit) < 2.0UI
  • Return loss
    • SD (270Mbit) < 15dB
    • 5G (1.48Gbit) < 15dB
    • 3G (2.97Gbit) < 10dB
    • 12G (11.88Gbit) < 4dB
  • Cable equalization
    • SD (270Mbit) = 320m
    • 5G (1.48Gbit) = 150m
    • 3G (2.97Gbit) = 120m
    • 12G (11.88Gbit) = 40m

Reference Input

  • Signal type Analog bi-level (SDTV) or tri-level (HDTV)
  • Auto-detect and cross lock compatible
  • No of inputs 1 external or 1 internal (rack frame reference)
  • Connection microBNC
  • Impedance 75 Ohm

Audio Processing

  • De-embedder
    • All 64 audio channels are de-embedded from SDI input
  • Embedder
    • All 64 audio channels re-embedded into output (1 to 1)
  • Audio delay Auto track video processing delay

Video Delay

  • Fixed delay Frame sync mode = 1 frame
  • Up to 30 frames of delay manually adjustable in frame / line / pixel increments

Electrical Specifications

  • Operating voltage 12 V DC
  • Power consumption < 15W
  • Safety IEC 60950/ EN 60950/VDE 0805

Mechanical

  • Size 289mm x 85mm
  • Weight CardModule 180g (6.35oz), connector plate 85g (3oz)

Ambient

  • Temperature 5°C to 40°C (41°F – 104°F) maintaining specifications
  • Humidity 90% maximum, non-condensing
