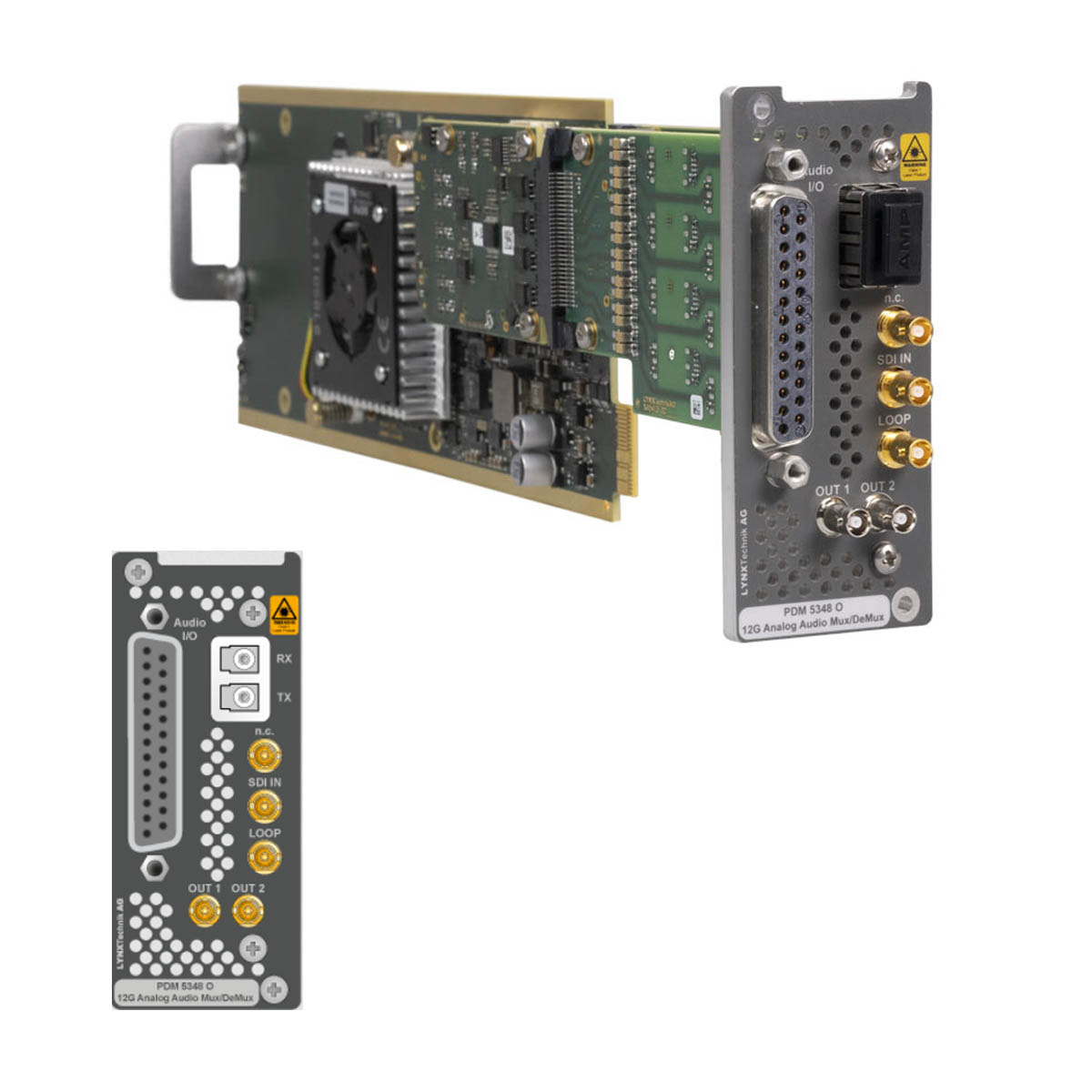

PDM 5348 O
12G-SDI Analog Audio Embedder / De-Embedder
The PDM 5348 O is a versatile 8-Channel analog audio embedder or de-embedder, which can be used to address a variety of audio issues in broadcast. The module offers multi-format 12G-SDI support up to 4K with 4:2:2 and 4:4:4 chroma sub-sampling at 10 or 12-bit depth.
The module can be switched between an 8 channel embedder or 8 channel de-embedder, or a combination of both. Up to 64 channels of audio are de-embedded from the SDI input signal and passed into an audio processing stage. In embedder mode, 8 channels of external audio are passed into the audio processing stage. Audio processing includes adjustable gain, phase invert and mute for all 64 channels as well as a selectable mono mix-down function for each left and right pair.
The processed audio is passed into further crossbars where the audio for the embedder, and external outputs can be mapped.
Fully compatible with Lynx Centraal for remote control, status monitoring and error reporting.
No more pages to load
Key Features
- Supports 12G/6G/3G/1.5G/SD-SDI Formats
- 8 balanced analog audio channel I/O
- Switch between 8 Channel Embedder or De-Embedder
- 72-Channel audio processing: Gain, Phase, Invert, Mute, Mono mix down and Silence detection
- 72×72 Mono output crossbar for Embedded and External Audio
- Video Test Patterns for transmission fallback when SDI input is missing
- Dolby E Synchronizer to maintain Guard Band
- Up to 30 frames of programmable delay
- Monitor and Control using the powerful and intuitive Lynx Centraal application
- Full SNMP support when used with master controller option
- Hot Swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479329225 | PDM 5348 O | 12G SDI Analog Audio Embedder/De-embedder |
| Options | ||
| 4250479325036 | OH-TX-12G-LC | 12G SDI Fiber Transmitter 1310nm LC |
| 4250479327528 | OH-TX-12G-ST | 12G SDI FiberTransmitter 1310nm ST |
| 4250479325043 | OH-RX-12-LC | 12G SDI Fiber Receiver LC |
| 4250479327511 | OH-RX-12-ST | 12G SDI Fiber Receiver ST |
| 4250479325029 | OH-TR-12G-LC | 12G SDI Fiber Transceiver 1310nm LC |
| 4250479328860 | RBO A025 | D-Sub 25 Audio Adapter PCB screw terminal |
| CWDM TX options | ||
| 4250479325630 | OH-TX-12-1270 | SDI TX Fiber SFP (CWDM) 1270nm |
| 4250479325647 | OH-TX-12-1290 | SDI TX Fiber SFP (CWDM) 1290nm |
| 4250479325654 | OH-TX-12-1310 | SDI TX Fiber SFP (CWDM) 1310nm |
| 4250479325661 | OH-TX-12-1330 | SDI TX Fiber SFP (CWDM) 1330nm |
| 4250479327979 | OH-TX-12-1350 | SDI TX Fiber SFP (CWDM) 1350nm |
| 4250479327986 | OH-TX-12-1370 | SDI TX Fiber SFP (CWDM) 1370nm |
| 4250479327993 | OH-TX-12-1390 | SDI TX Fiber SFP (CWDM) 1390nm |
| 4250479328006 | OH-TX-12-1410 | SDI TX Fiber SFP (CWDM) 1410nm |
| 4250479328013 | OH-TX-12-1430 | SDI TX Fiber SFP (CWDM) 1430nm |
| 4250479328020 | OH-TX-12-1450 | SDI TX Fiber SFP (CWDM) 1450nm |
| 4250479328037 | OH-TX-12-1470 | SDI TX Fiber SFP (CWDM) 1470nm |
| 4250479328044 | OH-TX-12-1490 | SDI TX Fiber SFP (CWDM) 1490nm |
| 4250479328051 | OH-TX-12-1510 | SDI TX Fiber SFP (CWDM) 1510nm |
| 4250479328068 | OH-TX-12-1530 | SDI TX Fiber SFP (CWDM) 1530nm |
| 4250479325685 | OH-TX-12-1550 | SDI TX Fiber SFP (CWDM) 1550nm |
| 4250479325692 | OH-TX-12-1570 | SDI TX Fiber SFP (CWDM) 1570nm |
| 4250479325708 | OH-TX-12-1590 | SDI TX Fiber SFP (CWDM) 1590nm |
| 4250479325715 | OH-TX-12-1610 | SDI TX Fiber SFP (CWDM) 1610nm |
| CWDM TR Options | ||
| 4250479326552 | OH-TR-12G-1270 | SDI TR Fiber SFP (CWDM) 1270nm |
| 4250479326569 | OH-TR-12G-1290 | SDI TR Fiber SFP (CWDM) 1290nm |
| 4250479326576 | OH-TR-12G-1310 | SDI TR Fiber SFP (CWDM) 1310nm |
| 4250479326583 | OH-TR-12G-1330 | SDI TR Fiber SFP (CWDM) 1330nm |
| 4250479326682 | OH-TR-12G-1350 | SDI TR Fiber SFP (CWDM) 1350nm |
| 4250479326699 | OH-TR-12G-1370 | SDI TR Fiber SFP (CWDM) 1370nm |
| 4250479326705 | OH-TR-12G-1390 | SDI TR Fiber SFP (CWDM) 1390nm |
| 4250479326712 | OH-TR-12G-1410 | SDI TR Fiber SFP (CWDM) 1410nm |
| 4250479326729 | OH-TR-12G-1430 | SDI TR Fiber SFP (CWDM) 1430nm |
| 4250479326736 | OH-TR-12G-1450 | SDI TR Fiber SFP (CWDM) 1450nm |
| 4250479326743 | OH-TR-12G-1470 | SDI TR Fiber SFP (CWDM) 1470nm |
| 4250479326750 | OH-TR-12G-1490 | SDI TR Fiber SFP (CWDM) 1490nm |
| 4250479326767 | OH-TR-12G-1510 | SDI TR Fiber SFP (CWDM) 1510nm |
| 4250479326774 | OH-TR-12G-1530 | SDI TR Fiber SFP (CWDM) 1530nm |
| 4250479326781 | OH-TR-12G-1550 | SDI TR Fiber SFP (CWDM) 1550nm |
| 4250479326798 | OH-TR-12G-1570 | SDI TR Fiber SFP (CWDM) 1570nm |
| 4250479326804 | OH-TR-12G-1590 | SDI TR Fiber SFP (CWDM) 1590nm |
| 4250479326811 | OH-TR-12G-1610 | SDI TR Fiber SFP (CWDM) 1610nm |
SDI Input
- Supported formats
- 4K 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- UHD 3840x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- 2K 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080PsF 23.98, 24, 25, 29.97, 30
- HD 1920x1080i 50, 59.94, 60
- HD 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- SD 720x625i 50
- SD 720x525i 59.94
- YCbCr 4:2:2 10-bit
- YCbCr/RGB 4:4:4 10/12-bit
- 3G-SDI Level A or B Dual Link
- SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081-1, SMPTE 2082-1
- of inputs 1 with loop out (+ 1 optional fiber input, switchable)
- Input/loop out connector (electrical) microBNC, 75 Ohms
- SDI Fiber input connector LC / singlemode (optional)
SDI Outputs
- No.of outputs 2 ( +1 optional fiber output)
- 1 loop output microBNC 75 Ohm
- YCbCr 4:2:2 10-bit
- YCbCr/RGB 4:4:4 10/12-bit
- 3G-SDI Level A or B Dual Link
- SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081-1, SMPTE 2082-1
- Output format Follows input format
- Connector (electrical) microBNC, 75 Ohm
- Connector (optical) LC / singlemode (optional)
Analog Audio I/O
- No.of Inputs / outputs 8x analog audio inputs or 8x analog audio outputs
- Signal type Balanced Analog Audio
- Connector Female 25pin D-Sub
- Output impedance 150 Ohms
- Input impedance >10K Ohm
- 0 dB full scale range Selectable: 12, 15, 18, 20, 22, 24 dBU full Scale Level
Audio Processing
- De-embedder All 64 audio channels are de-embedded form input SDI
- Processing functions 72 channel adjustable:
- Gain,
- Phase,
- Invert
- Mute
- Sum
- Overload and silence detection.
- Crossbars 72 x 72 channel (mono) output select crossbar
- I/O selection matrix to configure analog inputs and outputs
- A/D quantization 24 bit
- Sampling rate 48 kHz
Video / Audio Delay
- Automatic AV timing compensation
- Output delay Up to 30 frames of delay manually adjustable in frame / line / pixel increments
- Audio delay Up to 1334 ms total latency
- Adjustable for each incoming and outgoing audio channel
- Settings Available via LynxCentraal
- Audio I/O port configuration / audio shuffling (mono crossbar)
Electrical Specifications
- Operating voltage 12 V DC
- Power consumption 15W
- Safety IEC 60950/ EN 60950/VDE 0805
Mechanical
- Size 289mm x 85mm
- Weight CardModule 180g, (6.35oz) connector plate 85g (3oz)
Ambient
- Temperature 5°C to 40°C (41°F – 104°F) Maintaining specifications
- Humidity 90% Max non condensing
