PDM 5248 UO
12G-SDI AES Audio Embedder / De-Embedder (unbalanced)

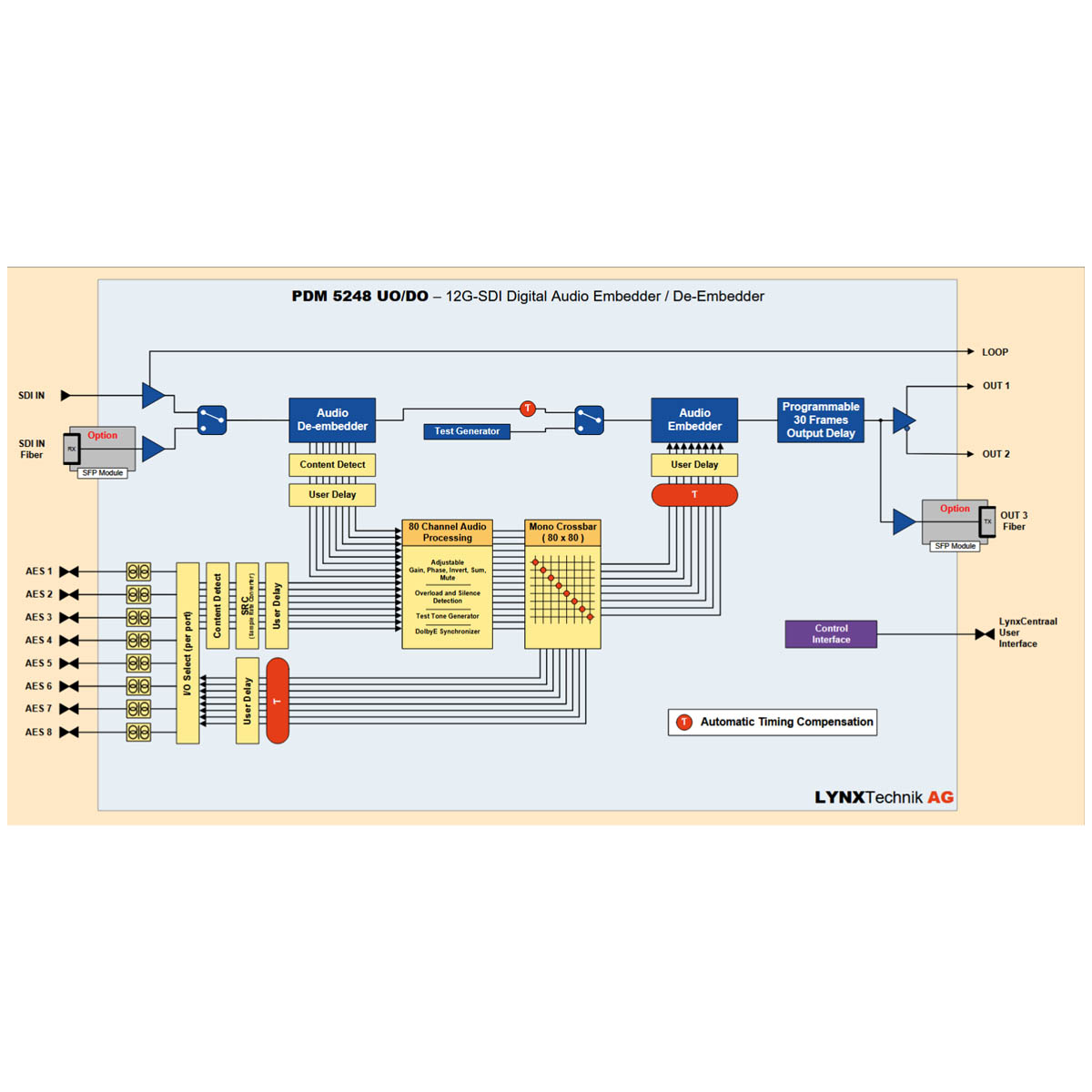

The PDM 5248 UO is a versatile 16-Channel (8x AES) audio embedder/de-embedder, which can be used to address a variety of audio issues in broadcast. The module offers multiformat support for 12G-SDI formats up to 4K with 4:2:2 and 4:4:4 chroma sub-sampling at 10 or 12-bit depth.
The module can be switched between a 16 channel embedder or 16 channel de-embedder, or a combination of both. Up to 64 channels of audio are de-embedded from the input SDI signal and passed into the audio processing stage. In embedder mode, 16 channels of external audio are passed into the audio processing stage. Audio processing includes adjustable gain, phase invert and mute for all 64 channels as well as a selectable mono mix-down function for each left and right pair.
The processed audio is passed onto a 80 x 80 output crossbar where the audio for the embedder and the external outputs can be user mapped.
The PDM 5248 UO card module allows for up to 30 frames of programmable output delay adjustable in frames, lines and pixels.
External AES audio I/O connections are 75 Ohm unbalanced on MiniDIN connections
Fully compatible with Lynx Centraal Control system for remote control, status monitoring and error reporting.
No more pages to load
Key Features
- Supports 12G/6G/3G/1.5G/SD-SDI Formats
- Switch between 16 channel Embedder or De-Embedder
- 64 channel audio processing stage with adjustable gain, phase invert, mute and stereo to mono mixdown plus overload and silence detection
- 80×80 Mono Output Crossbar for Embedded and External Audio
- Video Test Patterns for transmission fallback when SDI input is missing
- Dolby E Synchronizer to maintain Guard Band
- Up to 30 frames of programmable delay
- Unbalanced AES on 75 Ohm MiniDIN connections
- Monitor and Control using the powerful and intuitive Lynx Centraal application
- Full SNMP support when used with Master Control option
- Hot Swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479329201 | PDM 5248 UO | 12G SDI AES Audio Embedder/De-embedder |
| Options | ||
| 4250479325036 | OH-TX-12G-LC | 12G SDI Fiber Transmitter 1310nm LC |
| 4250479327528 | OH-TX-12G-ST | 12G SDI FiberTransmitter 1310nm ST |
| 4250479325043 | OH-RX-12-LC | 12G SDI Fiber Receiver LC |
| 4250479327511 | OH-RX-12-ST | 12G SDI Fiber Receiver ST |
| 4250479325029 | OH-TR-12G-LC | 12G SDI Fiber Transceiver 1310nm LC |
| CWDM TX options | ||
| 4250479325630 | OH-TX-12-1270 | SDI TX Fiber SFP (CWDM) 1270nm |
| 4250479325647 | OH-TX-12-1290 | SDI TX Fiber SFP (CWDM) 1290nm |
| 4250479325654 | OH-TX-12-1310 | SDI TX Fiber SFP (CWDM) 1310nm |
| 4250479325661 | OH-TX-12-1330 | SDI TX Fiber SFP (CWDM) 1330nm |
| 4250479327979 | OH-TX-12-1350 | SDI TX Fiber SFP (CWDM) 1350nm |
| 4250479327986 | OH-TX-12-1370 | SDI TX Fiber SFP (CWDM) 1370nm |
| 4250479327993 | OH-TX-12-1390 | SDI TX Fiber SFP (CWDM) 1390nm |
| 4250479328006 | OH-TX-12-1410 | SDI TX Fiber SFP (CWDM) 1410nm |
| 4250479328013 | OH-TX-12-1430 | SDI TX Fiber SFP (CWDM) 1430nm |
| 4250479328020 | OH-TX-12-1450 | SDI TX Fiber SFP (CWDM) 1450nm |
| 4250479328037 | OH-TX-12-1470 | SDI TX Fiber SFP (CWDM) 1470nm |
| 4250479328044 | OH-TX-12-1490 | SDI TX Fiber SFP (CWDM) 1490nm |
| 4250479328051 | OH-TX-12-1510 | SDI TX Fiber SFP (CWDM) 1510nm |
| 4250479328068 | OH-TX-12-1530 | SDI TX Fiber SFP (CWDM) 1530nm |
| 4250479325685 | OH-TX-12-1550 | SDI TX Fiber SFP (CWDM) 1550nm |
| 4250479325692 | OH-TX-12-1570 | SDI TX Fiber SFP (CWDM) 1570nm |
| 4250479325708 | OH-TX-12-1590 | SDI TX Fiber SFP (CWDM) 1590nm |
| 4250479325715 | OH-TX-12-1610 | SDI TX Fiber SFP (CWDM) 1610nm |
| CWDM TR Options | ||
| 4250479326552 | OH-TR-12G-1270 | SDI TR Fiber SFP (CWDM) 1270nm |
| 4250479326569 | OH-TR-12G-1290 | SDI TR Fiber SFP (CWDM) 1290nm |
| 4250479326576 | OH-TR-12G-1310 | SDI TR Fiber SFP (CWDM) 1310nm |
| 4250479326583 | OH-TR-12G-1330 | SDI TR Fiber SFP (CWDM) 1330nm |
| 4250479326682 | OH-TR-12G-1350 | SDI TR Fiber SFP (CWDM) 1350nm |
| 4250479326699 | OH-TR-12G-1370 | SDI TR Fiber SFP (CWDM) 1370nm |
| 4250479326705 | OH-TR-12G-1390 | SDI TR Fiber SFP (CWDM) 1390nm |
| 4250479326712 | OH-TR-12G-1410 | SDI TR Fiber SFP (CWDM) 1410nm |
| 4250479326729 | OH-TR-12G-1430 | SDI TR Fiber SFP (CWDM) 1430nm |
| 4250479326736 | OH-TR-12G-1450 | SDI TR Fiber SFP (CWDM) 1450nm |
| 4250479326743 | OH-TR-12G-1470 | SDI TR Fiber SFP (CWDM) 1470nm |
| 4250479326750 | OH-TR-12G-1490 | SDI TR Fiber SFP (CWDM) 1490nm |
| 4250479326767 | OH-TR-12G-1510 | SDI TR Fiber SFP (CWDM) 1510nm |
| 4250479326774 | OH-TR-12G-1530 | SDI TR Fiber SFP (CWDM) 1530nm |
| 4250479326781 | OH-TR-12G-1550 | SDI TR Fiber SFP (CWDM) 1550nm |
| 4250479326798 | OH-TR-12G-1570 | SDI TR Fiber SFP (CWDM) 1570nm |
| 4250479326804 | OH-TR-12G-1590 | SDI TR Fiber SFP (CWDM) 1590nm |
| 4250479326811 | OH-TR-12G-1610 | SDI TR Fiber SFP (CWDM) 1610nm |
SDI Input
- Supported formats
- 4K 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- UHD 3840x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- 2K 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080PsF 23.98, 24, 25, 29.97, 30
- HD 1920x1080i 50, 59.94, 60
- HD 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- SD 720x625i 50
- SD 720x525i 59.94
- YCbCr 4:2:2 10-bit
- YCbCr/RGB 10/12-bit
- 3G-SDI Level A or B Dual Link
- SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081-1, SMPTE 2082-1
- of inputs 1 with loop out (+ 1 optional fiber input, switchable)
- Input/loop out connector (electrical) microBNC, 75 Ohms
- SDI Fiber input connector LC / singlemode (optional)
SDI Outputs
- Output format Follows input format
- SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081-1, SMPTE 2082-1
- YCbCr 4:2:2 10-bit
- YCbCr/RGB 4:4:4 10/12-bit
- 3G-SDI Level A or B Dual Link
- No.of outputs
- PDM 5248 UO = 2 (+ 1 optional fiber output)
- Connector (electrical) microBNC, 75 Ohm
- SDI Fiber output connector LC / singlemode (optional)
- Return Loss
- SD (270Mbit) >15dB
- 5G (1.482Gbit) >15dB
- 3G (2.97Gbit) >10dB
- 12G (11.88 Gb) > 4dB
- Cable EQ
- SD (270Mbit) 230m
- 5G (1.482Gbit) 250m
- 3G (2.97Gbit) 110m
- 12G (11.88 Gb) 70m
- Jitter
- Timing Jitter
- SD (270Mbit) <0.2UI
- 5G (1.482Gbit) <1.0UI
- 3G (2.97Gbit) <2.0UI
- 12G (11.88 Gb) <2.0UI
- Alignment Jitter
- SD (270Mbit) <0.2UI
- 5G (1.482Gbit) <0.2UI
- 3G (2.97Gbit) <0.3UI
- 12G (11.88 Gb) <2.0UI
- Timing Jitter
AES Audio I/O
- No. of inputs / outputs 16 channels on 8x AES connections
- Signal type
- PDM 5248 UO = 8x AES3id unbalanced (single ended)
- Connectors
- PDM 5248 UO = Mini DIN 1.0/2.3, 75 Ohm
- Output levels
- PDM 5248 UO = 1 v peak to peak nominal
- Coupling Transformer (isolated) inputs or outputs
Audio Processing
- De-embedder All 16 audio channels are de-embedded from SDI input
- Processing functions 80 channel adjustable: gain, phase, invert, mute, sum plus overload and silence detection.
- Crossbars 80 x 16 channel output select crossbar
- 80 x 16 channel embedder select crossbar
- I/O select matrix to configure AES inputs and outputs
Video / Audio Delay
- Automatic AV timing compensation
- Output delay Up to 30 frames of delay adjustable in frame / line / pixel increments
- Audio delay up to 1.3s (1300ms) total latency
- Adjustable for each incoming and outgoing audio channel
Note: These adjustments are offsets to the automatic processing compensation
Performance
- Full remote control / status monitoring through LynxCentraal control system
- Status monitoring Module edge LED indicators
Electrical Specifications
- Operating voltage 12 V DC
- Power consumption 17W
- Safety IEC 60950/ EN 60950/VDE 0805
Mechanical
- Size 289mm x 85mm ( 12” x 4” )
- Weight CardModule 180g (6.35oz), connector plate 90g (3.17oz)
Ambient
- Temperature 5°C to 40°C (41°F – 104°F) Maintaining specifications
- Humidity 90% Max non condensing
