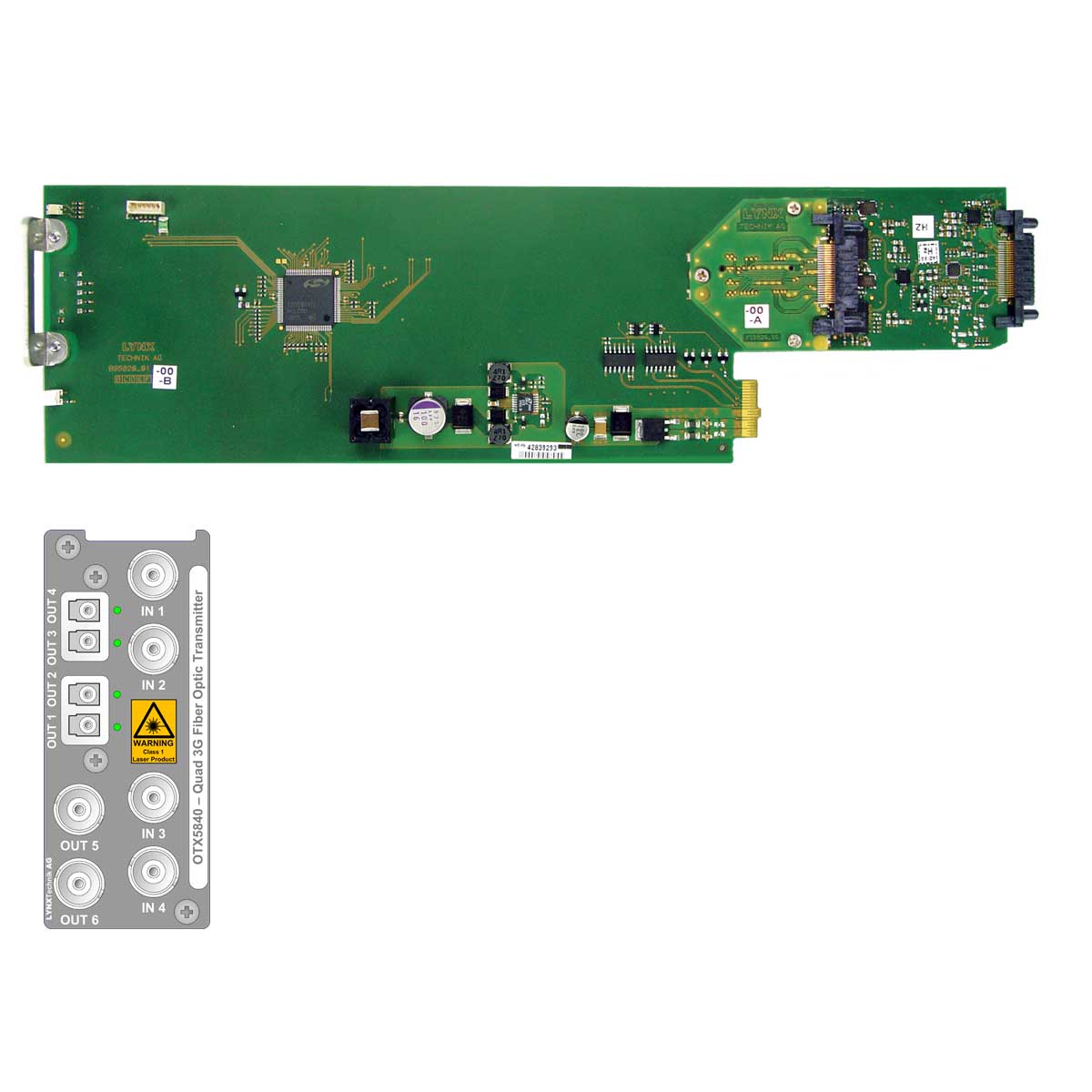

OTX 5840
3G-SDI Quad SDI Fiber Optic Transmitter
The OTX 5840 is a flexible four channel 3G-SDI electrical to fiber optic converter suitable for SDI/ASI-DVB video signals. Each channel has automatic input clock rate and signal presence detection with selectable signal reclocking. This module is ideally suited for demanding digital multi-format broadcast and professional applications.

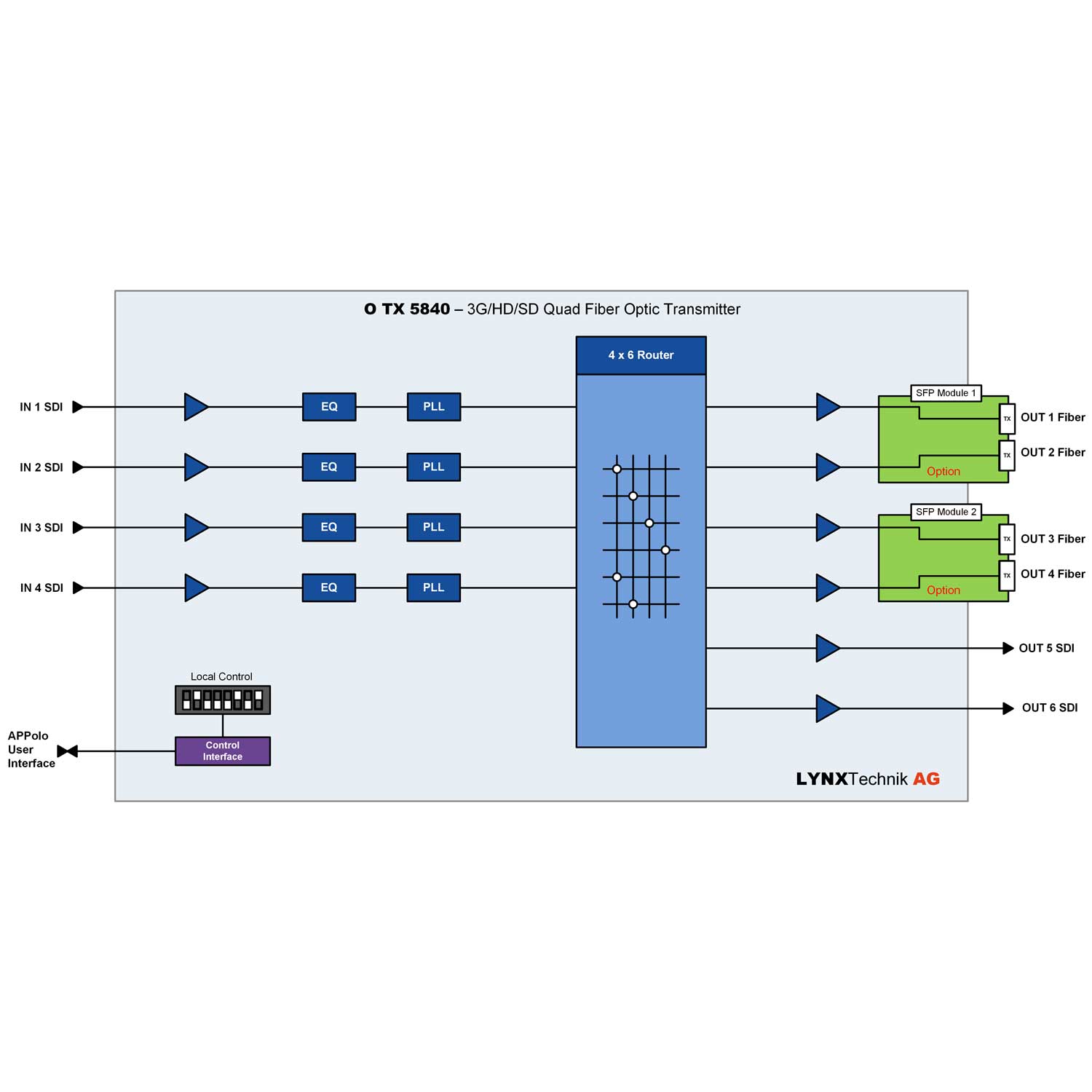

The module provides 4 SDI optical outputs and 2 SDI electrical outputs which can be mapped using the integrated 4×6 signal router. In non-reclocked mode the module will transparently pass any data between 15Mbit/s and 3Gbit/s. Support for ASI/DVB and SMPTE 310 signals is also provided.
Select from 18 wavelengths for CWDM applications 40km* or 80km* or select all 1310nm wavelengths for non CWDM applications 10km*.
Up to 10 modules, (or 40 fiber TX channels) can be supported in a standard LYNX RFR 5018 US 2RU rack frame.
The Fiber SFP sub-modules are secured on the backplane allowing for module removal and hot swapping without removing any modules rear I/O fiber connections.
Full remote control, status monitoring and error reporting is possible when using the LynxCentraal control system.
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
No more pages to load
Key Features
- 4 independent optical TX channels and 2 x electrical outputs
- Supports SDI/ASI/DVB and SMPTE 310 up to 3Gbit/s
- Selection of 18 wavelengths available for CWDM applications
- Reclocking or non-reclocking mode for each channel
- Auto-detects input clock rate
- Transparently pass data between 15Mbit/s and 3Gbit/s in non-reclocked mode.
- Input presence detection with LED indication for each channel
- Internal 4×6 signal router for flexible I/O mapping (via control system only)
- LC fiber optic connections, singlemode fiber
- Fiber SFP modules secured in backplane. Module can be freely removed or replaced without disconnection of fiber cables
- Remote control and status monitoring when used with the LynxCentraal control system
- Hot Swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479322196 | OTX 5840 | Quad SDI Fiber Optic Transmitter (SD/HD/3G) |
| Options | ||
| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
| Fiber SFP (10km) | ||
| 4250479320642 | OH-TT-1-LC | Dual SDI Transmitter (2 x 1310nm) |
| CWDM Fiber SFPs (40km) | ||
| 4250479327290 | OH-TT-4-1270-1290 | Dual SDI Transmitter [1270nm + 1290nm] (CWDM) |
| 4250479331334 | OH-TT-4-1310-1330 | Dual SDI Transmitter [1310nm + 1330nm] (CWDM) |
| 4250479335370 | OH-TT-4-1350-1370 | Dual SDI Transmitter [1350nm + 1370nm] (CWDM) |
| 4250479339415 | OH-TT-4-1390-1410 | Dual SDI Transmitter [1390nm + 1410nm] (CWDM) |
| 4250479343450 | OH-TT-4-1430-1450 | Dual SDI Transmitter [1430nm + 1450nm] (CWDM) |
| 4250479347496 | OH-TT-4-1470-1490 | Dual SDI Transmitter [1470nm + 1490nm] (CWDM) |
| 4250479351530 | OH-TT-4-1510-1530 | Dual SDI Transmitter [1510nm + 1510nm] (CWDM) |
| 4250479355576 | OH-TT-4-1550-1570 | Dual SDI Transmitter [1550nm + 1570nm] (CWDM) |
| 4250479359611 | OH-TT-4-1590-1610 | Dual SDI Transmitter [1590nm + 1610nm] (CWDM) |
| CWDM Fiber SFPs (80km) | ||
| 4250479320659 | OH-TT-8-1270-1290 | Dual SDI Transmitter [1270nm + 1290nm] (CWDM) |
| 4250479320666 | OH-TT-8-1310-1330 | Dual SDI Transmitter [1310nm + 1330nm] (CWDM) |
| 4250479320673 | OH-TT-8-1350-1370 | Dual SDI Transmitter [1350nm + 1370nm] (CWDM) |
| 4250479320680 | OH-TT-8-1390-1410 | Dual SDI Transmitter [1390nm + 1410nm] (CWDM) |
| 4250479320697 | OH-TT-8-1430-1450 | Dual SDI Transmitter [1430nm + 1450nm] (CWDM) |
| 4250479320703 | OH-TT-8-1470-1490 | Dual SDI Transmitter [1470nm + 1490nm] (CWDM) |
| 4250479320710 | OH-TT-8-1510-1530 | Dual SDI Transmitter [1510nm + 1510nm] (CWDM) |
| 4250479320727 | OH-TT-8-1550-1570 | Dual SDI Transmitter [1550nm + 1570nm] (CWDM) |
| 4250479320734 | OH-TT-8-1590-1610 | Dual SDI Transmitter [1590nm + 1610nm] (CWDM) |
SDI Inputs
- Signal type
- Serial Digital Video SMPTE 259M, 292M, 424M
- 3G / HD-SDI / SD-SDI
- DVB-ASI and SMPTE 310
- Input level 0.8 v peak to peak
- of Inputs 4
- Input Impedance 75 Ohms
- Connector BNC
- Return Loss
- > 15dB (1.485Gbit)
- > 10dB (2.97Gbit)
Optical Outputs
- Signal type SMPTE 297M – 2006
- LC / PC Connector
- Of inputs 4 (on 2 dual channel SFP fiber sub-modules)
- Standard SFP option (singlemode)
- OH-TT-1-LC – dual 1310nm @ -5dBm (typical) 10km*
- CWDM SFP Options (singlemode)
- 18 wavelength selections 1270nm to 1610nm in 9 pairs
- ITU-T G694.2
- OH-TT-4-XXXX-XXXX @ -1dBm (typical) 40km*
- OH-TT-8-XXXX-XXXX @ +3dBm (typical) 80km*
- (xxxx-xxxx = wavelengths)
SDI Video Outputs
- Signal type
- Serial Digital Video SMPTE 259M, 292M, 424M
- 3G / HD-SDI / SD-SDI
- DVB-ASI and SMPTE 310
- Output level 0.8 v peak to peak
- Output impedance 75 Ohm
- Of Outputs 2
- Connector BNC
- Return loss
- > 15dB (1.485Gbit)
- > 10dB (2.97Gbit)
Jitter
- < 0.20 UI (270 MHz)
- < 1.0 UI – Timing Jitter – (1.485Gbit – 2.97Gbit)
- < 0.20 UI – Alignment Jitter – (1.485Gbit – 2.97Gbit)
Performance
- Cable equalization
- Up to 250M using Belden 8281 (270Mbit)
- Up to 140m using Belden 1694A (1.485Gbit)
- Up to 80m using Belden 1694A (2.97Gbit)
- Remote control possible when used with LYNX controller
- Status monitoring (LED) Signal presence (each input channel) plus general alarm
- Re-clocking Clocked or non-reclocked operation (selectable for each channel)
Electrical Specifications
- Operating Voltage 12 VDC
- Power Consumption < 7W
- Safety IEC 60950/ EN 60950/ VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g, connector plate 120g
Ambient
- Temperature 5°C to 40°C Maintaining specifications
- Humidity 90% Max non condensing
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
