OTR 1441 yellobrik in RFR 1018 Rack Frame

OTR 1A41

Quad 12G (8k) Fiber Transport System

Specialty

Fiber, SDI 1.5G, SDI 12Gbit, SDI 270MBit, SDI 3Gbit, SDI 6G

Documentation

Product Documentation

Features

  • Support for 4 independent 12G/3G/HD/SD-SDI channels
  • Transport 8K (uncompressed) signals
  • Each channel supports resolutions up to 2160p/60Hz
  • Each channel individually reclocked
  • Embedded audio / metadata support for each channel

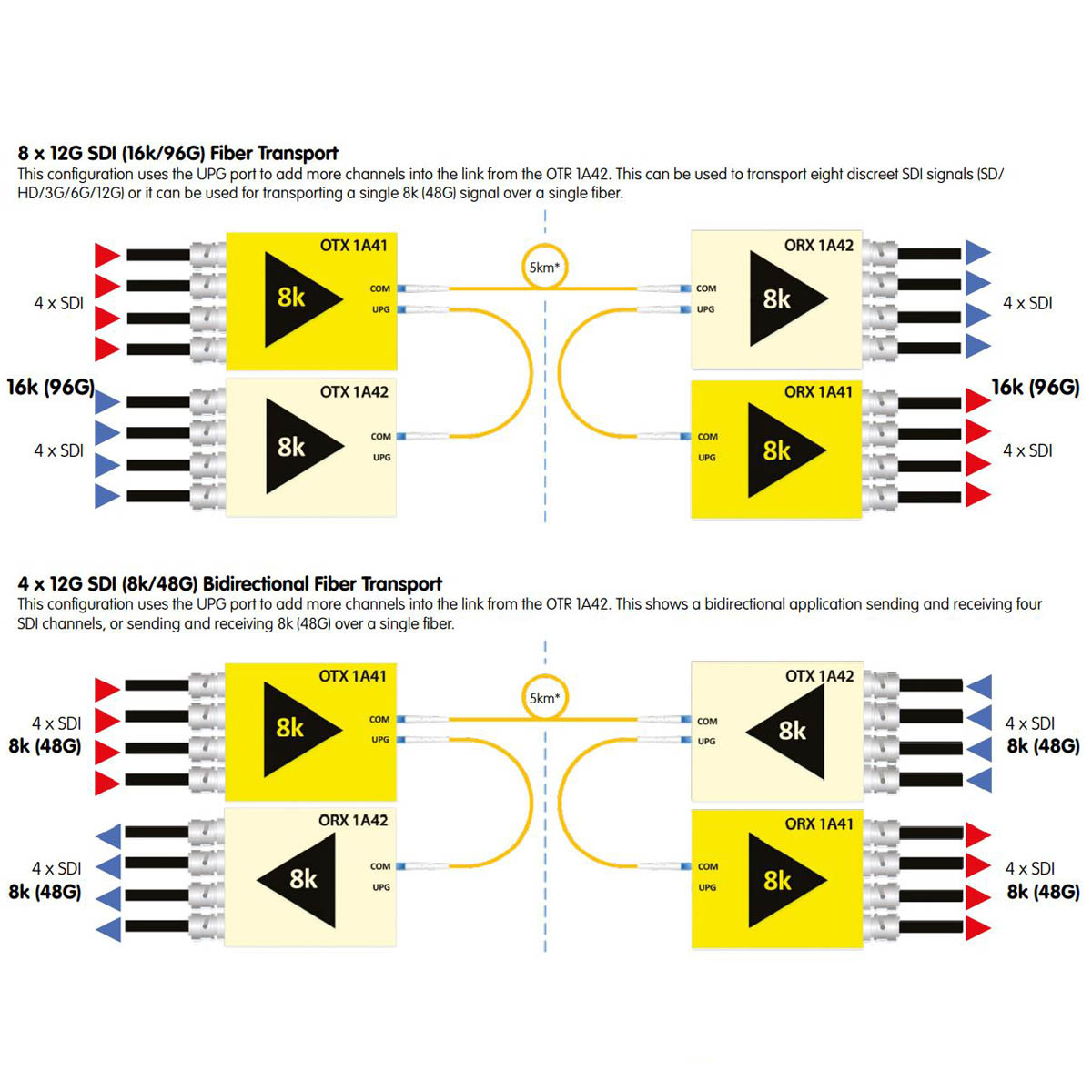

  • Integrated expansion port to add more channels
  • LED indicators for channel activity and power

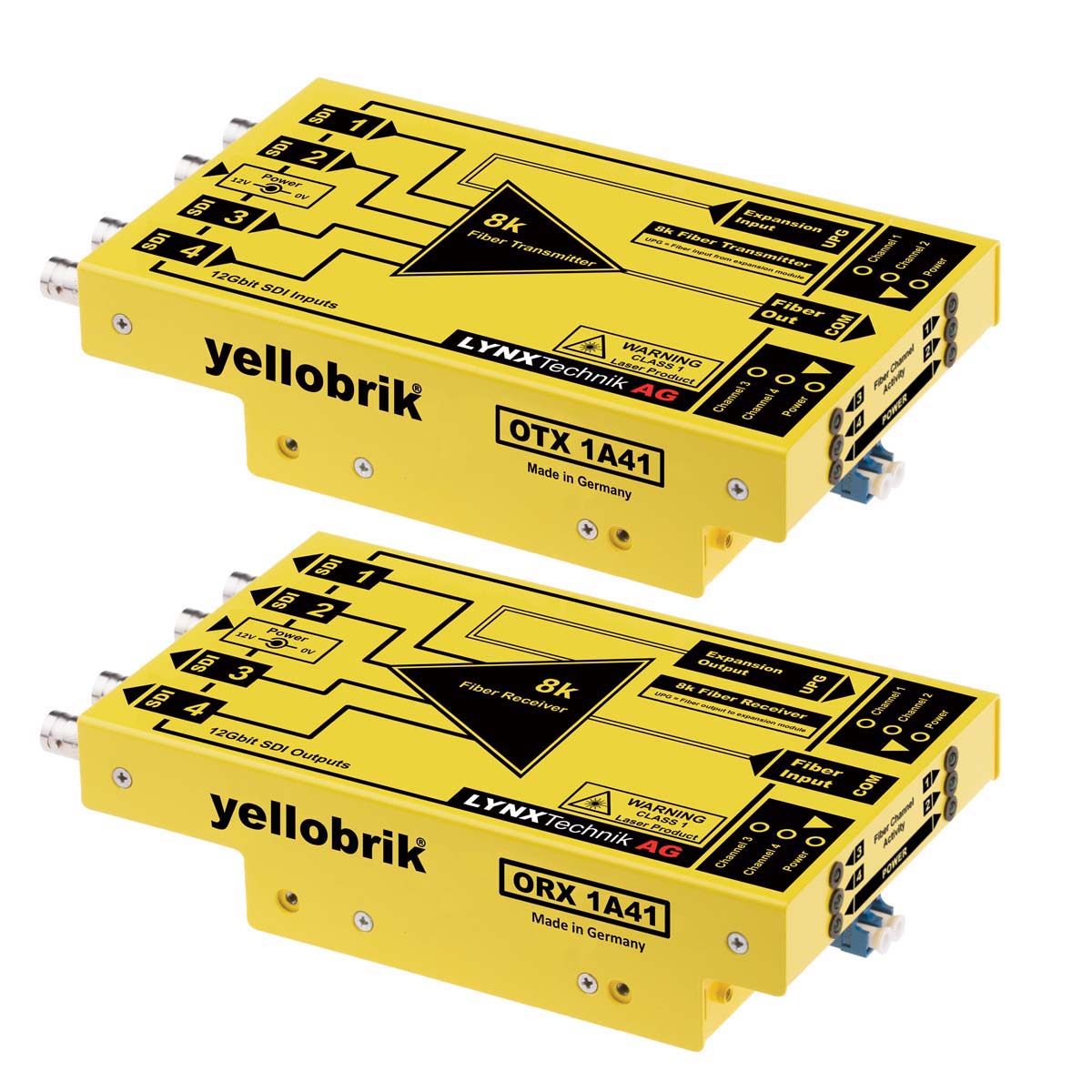

  • Kit includes transmitter, receiver and power supplies
  • Optional 19” Rack tray to mount (max) 4 modules

Description

The OTR 1A41 is a self contained fiber transmission kit for the transport of 4 discreet SDI signals (or 8K / 48G uncompressed) over a single fiber link. The kit includes the fiber transmitter, fiber receiver and power supplies. This is an ideal solution for the transmission of multiple uncompressed SDI streams, or 12K signals.

Each SDI channel is fully independent. For 8K use, the signal is split over 4 separate 12G SDI links (48G) and supports full 8K resolution at 60fps. The system can also be used for any combination of SDI signals, with a mix of formats and bit-rates if required. Each channel will automatically detect and reclock SDI bit rates of 270Mbit, 1.5Gbit, 3Gbit and 12Gbit. LED Indicators are provided for channel presence and power. An optional 19” rack mount tray is available which can accommodate up to 4 modules (RFR1018).

Note: Internal CWDM optical multiplexing is utilized within the modules. This kit should be considered a self contained point to point solution and should not be integrated into external CWDM systems.

Accessories
RFR 1018 yellobrik 19" Rack TrayRFR 1018 yellobrik rack tray with modules installed

RFR 1018

yellobrik 19″ 0.5RU Rack Tray

XLR 1000 yellobrik XLR power adapter cable

XLR 1000

4 Pin XLR Camera Battery Adapter Cable

Ordering Information

UPC / EAN Model Description
4250479326637 OTR 1A41 8K Fiber Transport System SMF (LC Connector)
Options
4250479310186 RFR 1018 19" 0.5RU Mounting Tray
4250479314016 P-TAP 1000 P-TAP Battery Power Adapter Cable
4250479314009 XLR-1000 4 Pin XLR Battery Power Adapter Cable
4250479323278 LC/FC SIM Simplex LC/FC Fiber Adapter
4250479318250 LC/SC SIM Simplex LC/SC Fiber Adapter
4250479318151 LC/ST SIM Simplex LC/ST Fiber Adapter
