OTR 1442

Quad 3G (4k) Fiber Transmission System

Specialty

Fiber, SDI 1.5G, SDI 270MBit, SDI 3Gbit

Documentation

Product Documentation

Features

  • Support for 4 independent 3G/HD/SD-SDI channels
  • Transport 4K (uncompressed) up to 20km (12 miles)
  • Each channel supports resolutions up to 1080p/60Hz
  • Each channel individually reclocked
  • Embedded audio / metadata support
  • Integrated expansion port to add more channels
  • LED indicators for channel activity and power
  • Kit includes transmitter, receiver and power supplies
  • Optional 19” Rack tray to mount (max) 4 modules

Description

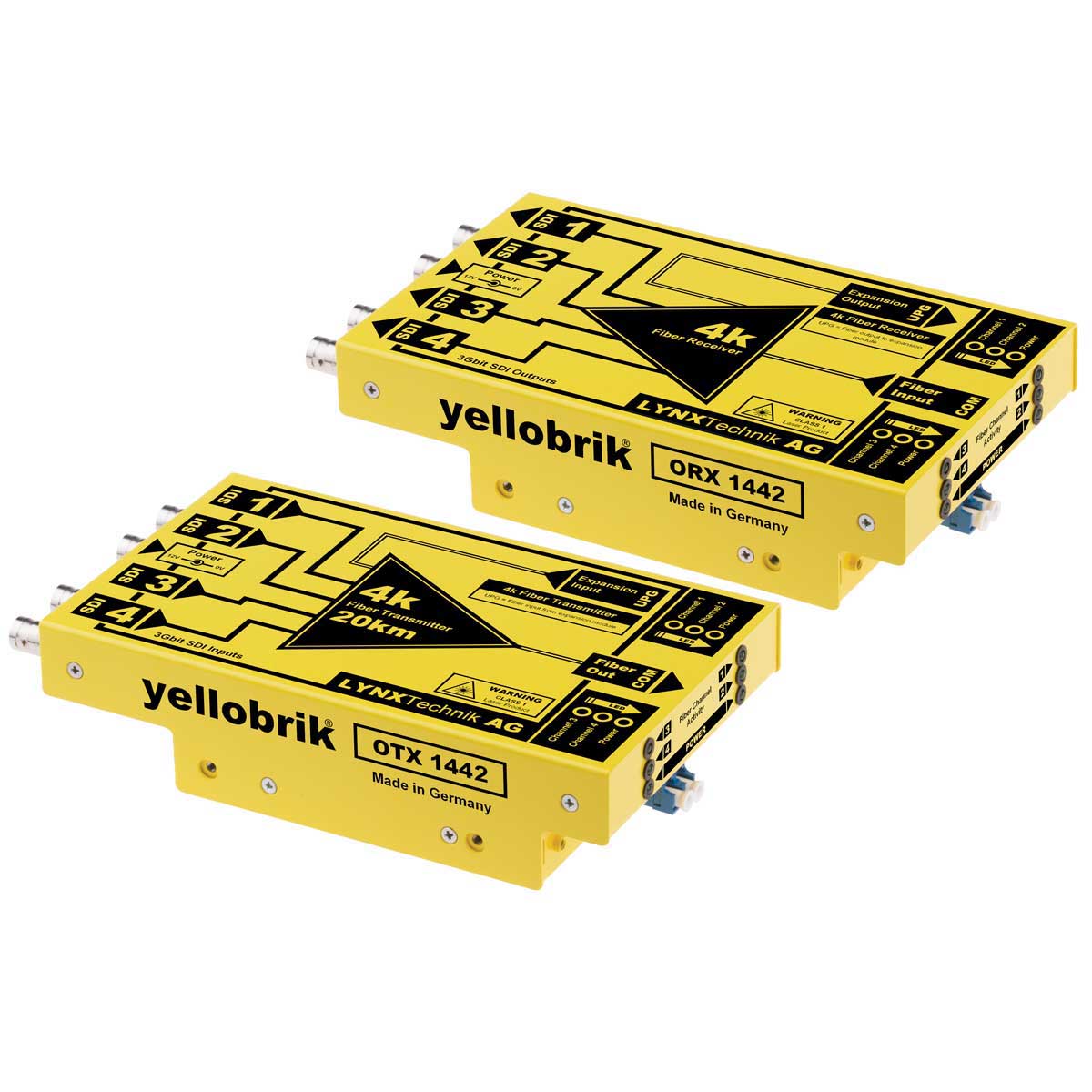

The OTR 1442 is a self contained fiber transmission kit for the transport of 4 discreet SDI signals (or 4K / 12G uncompressed) over a single fiber link. The kit includes the fiber transmitter, fiber receiver and power supplies. This is an ideal solution for the transmission of multiple uncompressed SDI streams, or 4K up to 20km with zero losses.

Each SDI channel is fully independent. For 4K use the signal is split over 4 separate 3G SDI links (12G) and supports full 4K resolution at 60fps. The system can also be used for any combination of SDI signals, with a mix of formats and bit-rates if required. Each channel will automatically detect and reclock SDI bit rates of 270Mbit, 1.48Gbit and 2.97Gbit.

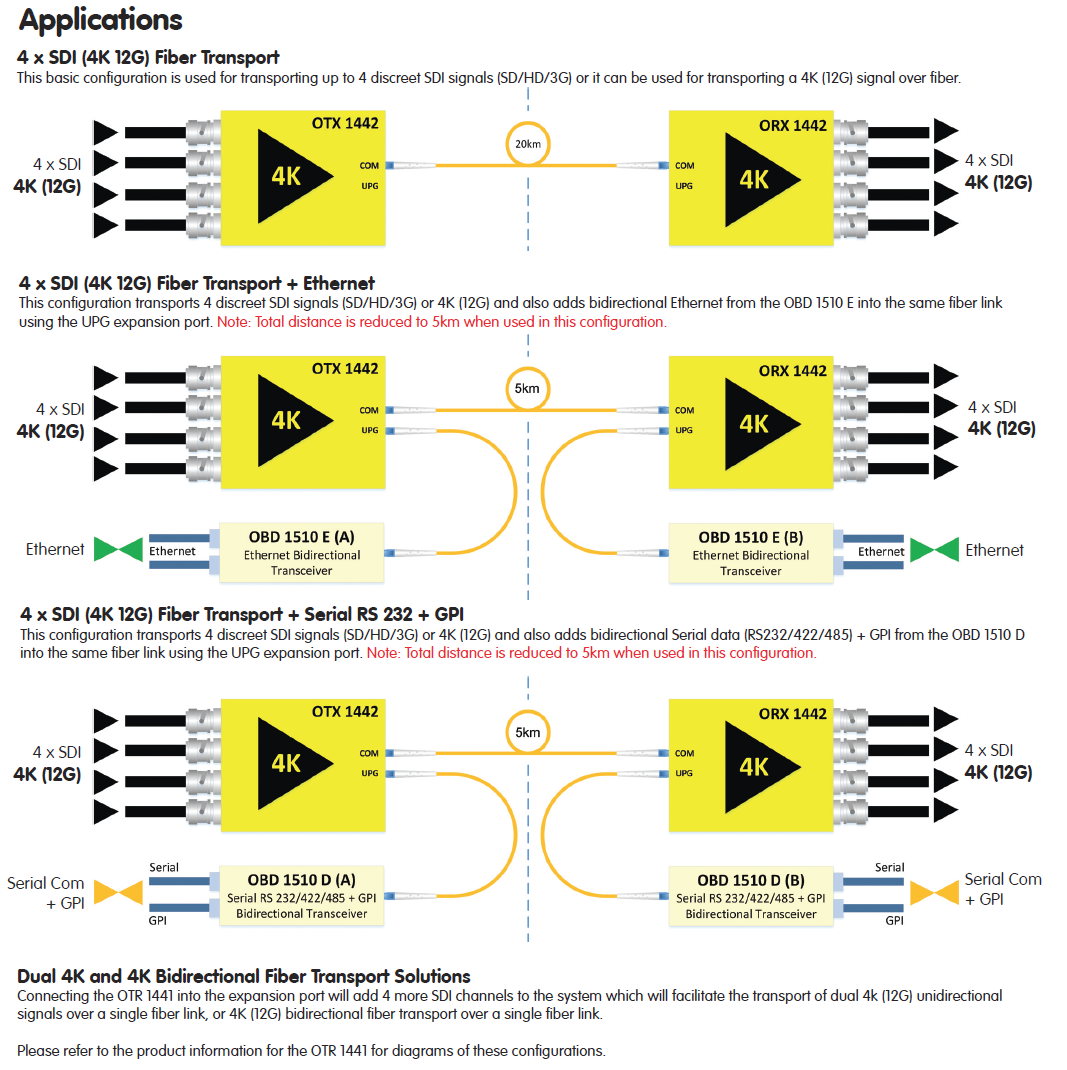

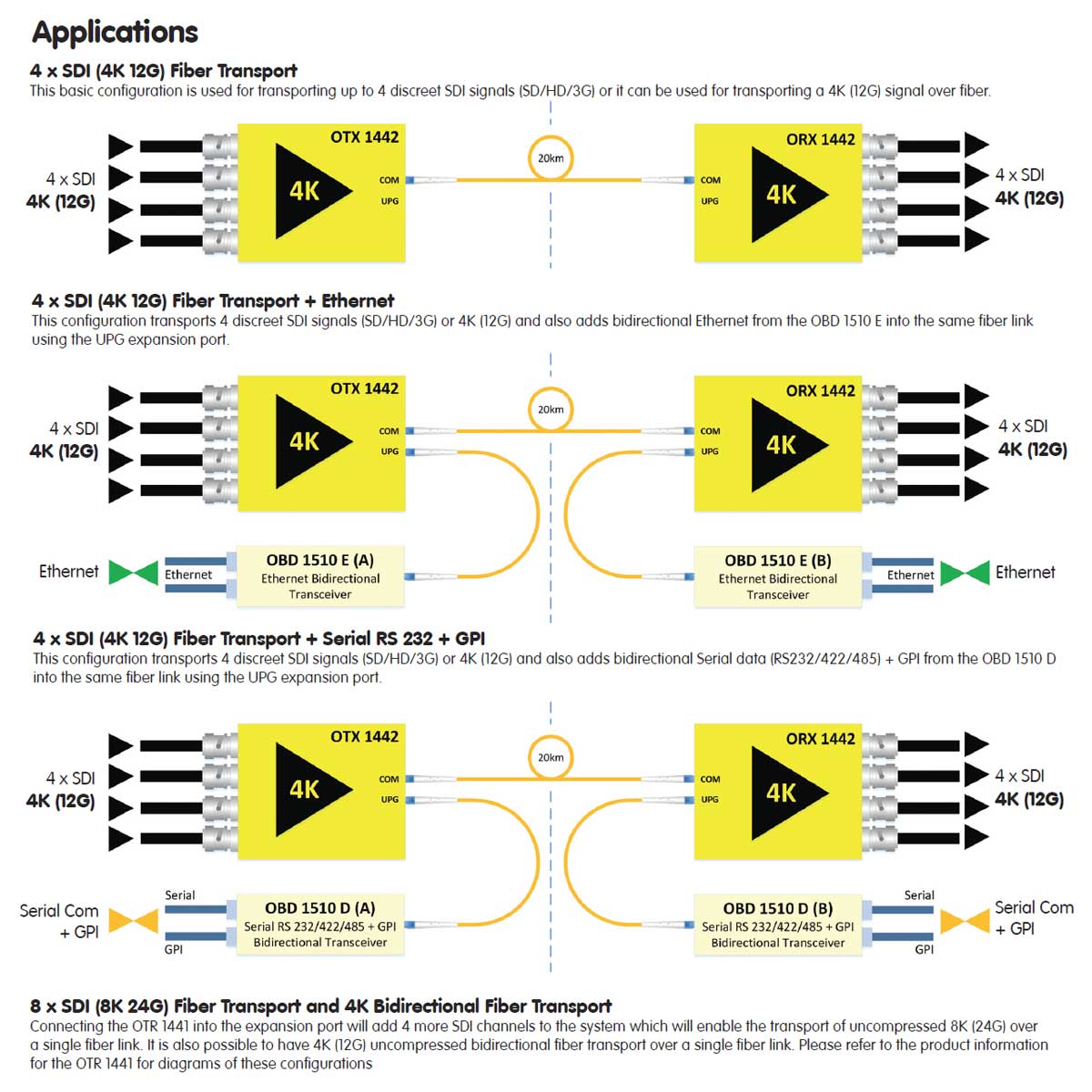

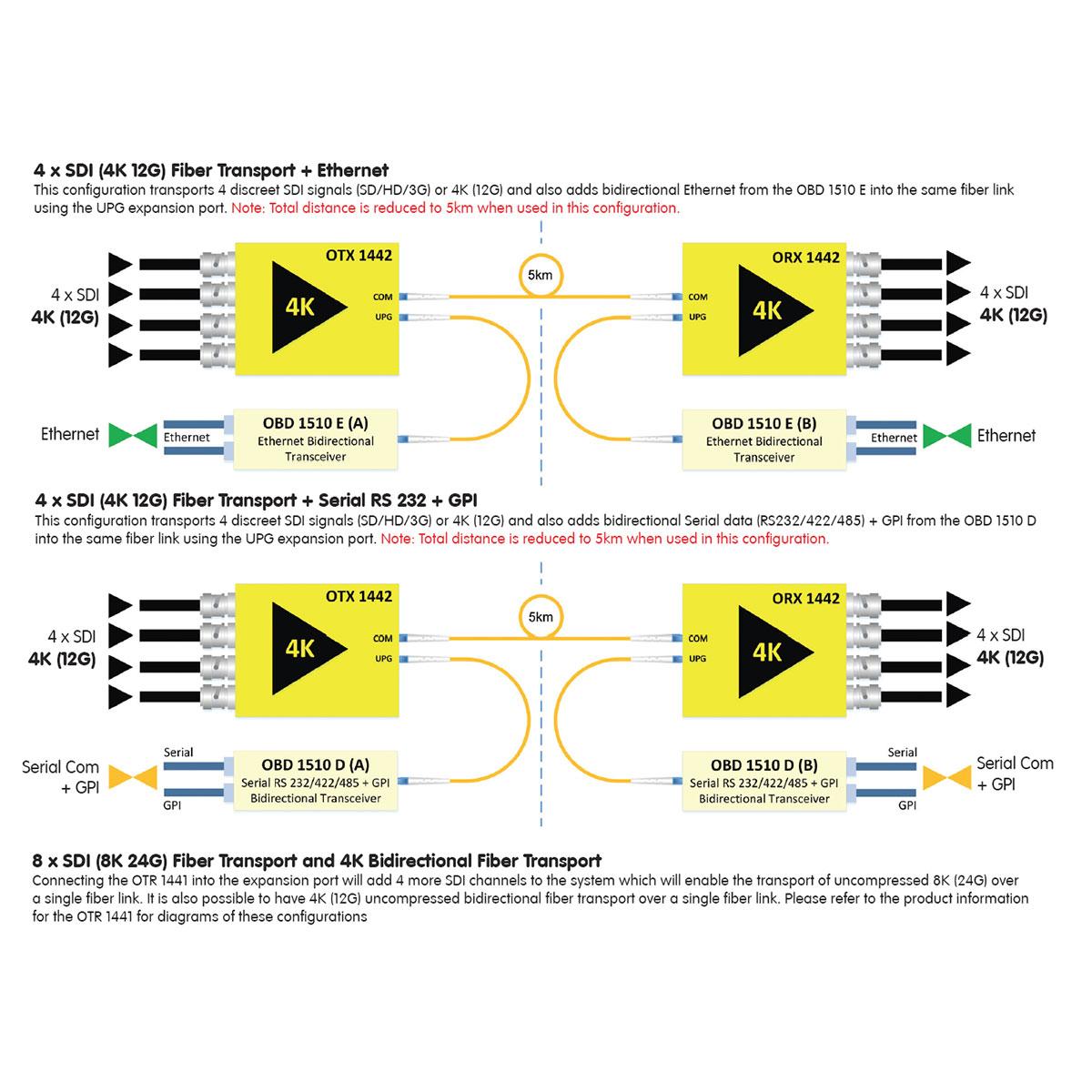

An expansion port is included for the connection of the OTR 1441 to add 4 more SDI channels (or dual 4K over a single fiber), or add bidirectional Ethernet or Serial RS 232 data into the link.

LED Indicators are provided for channel presence and power. An optional 19” rack mount tray is available which can accommodate up to 4 modules (RFR 1018).

Accessories
RFR 1018 yellobrik 19" Rack TrayRFR 1018 yellobrik rack tray with modules installed

RFR 1018

yellobrik 19″ 0.5RU Rack Tray

XLR 1000 yellobrik XLR power adapter cable

XLR 1000

4 Pin XLR Camera Battery Adapter Cable

Ordering Information

UPC / EANModelDescription
4250479324374OTR 14424K Fiber Transport System SMF (LC Connector)
Options
4250479310186RFR 101819" 0.5RU Mounting Tray
4250479314016P-TAP 1000P-TAP Battery Power Adapter Cable
4250479314009XLR-10004 Pin XLR Battery Power Adapter Cable
4250479323278LC/FC SIMSimplex LC/FC Fiber Adapter
4250479318250LC/SC SIMSimplex LC/SC Fiber Adapter
4250479318151LC/ST SIM Simplex LC/ST Fiber Adapter
