OTR 1441
Quad 3G SDI Fiber Optic Transmission System

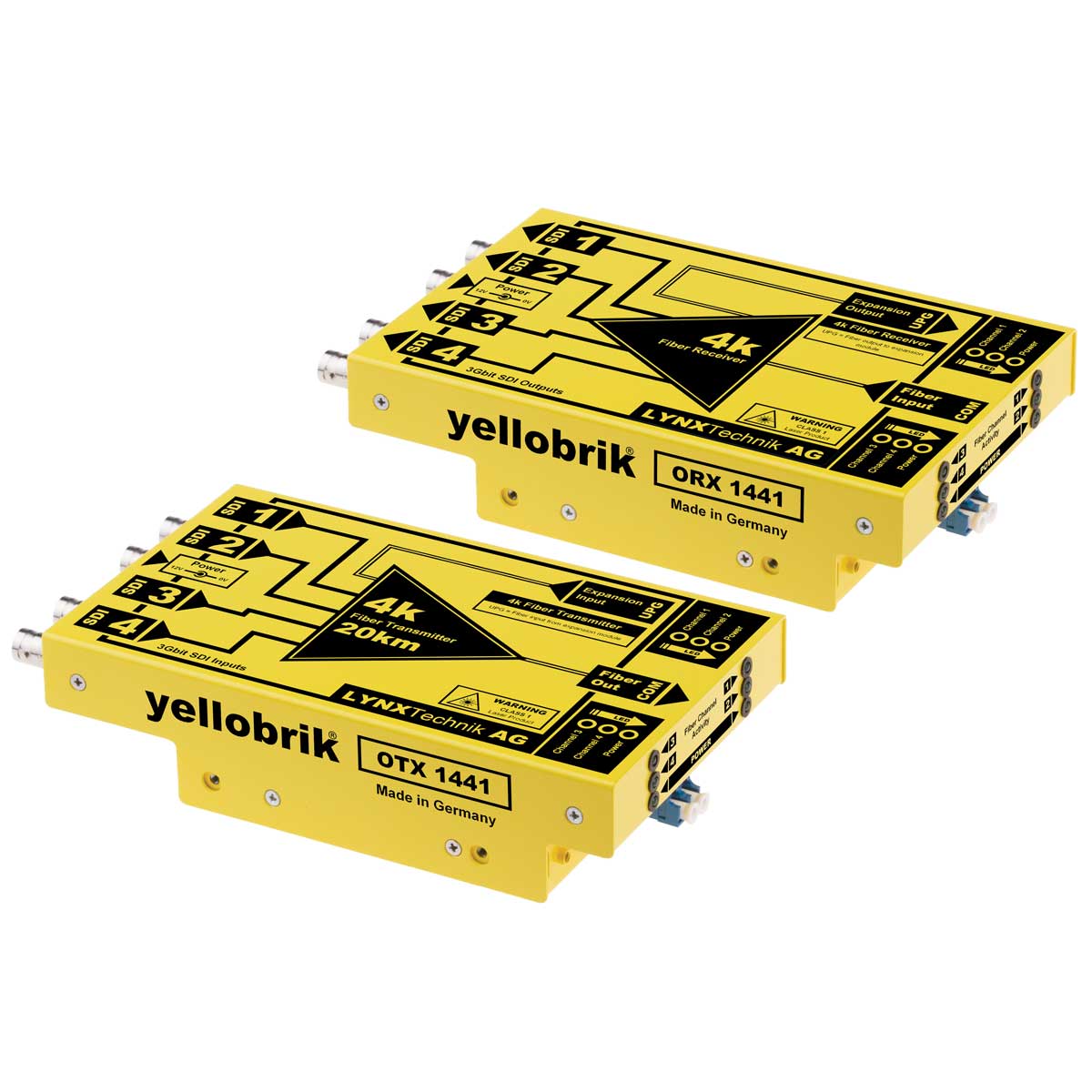

The OTR 1441 is a self contained fiber transmission kit for the transport of 4 discreet SDI signals over a single fiber link. The kit includes the fiber transmitter, fiber receiver and power supplies. This is an ideal solution for the transmission of multiple uncompressed SDI streams up to 20km with zero losses.
Each SDI channel is fully independent. For 4K use the signal is split over 4 separate 3G SDI links. The system can also be used for any combination of SDI signals, with a mix of formats and bit-rates if required. Each channel will automatically detect and re-clock SDI bit rates of 270Mbit, 1.48Gbit and 2.97Gbit.

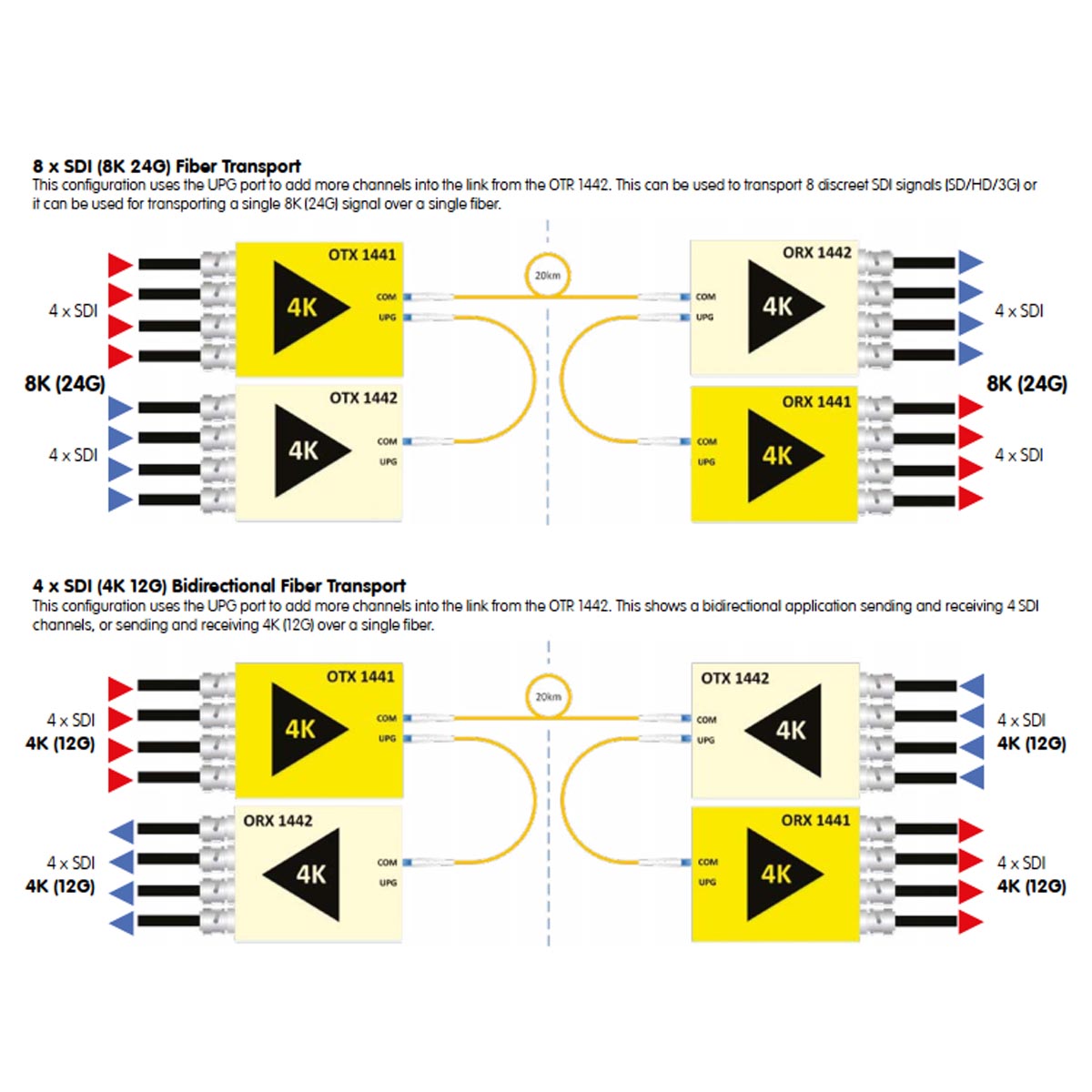

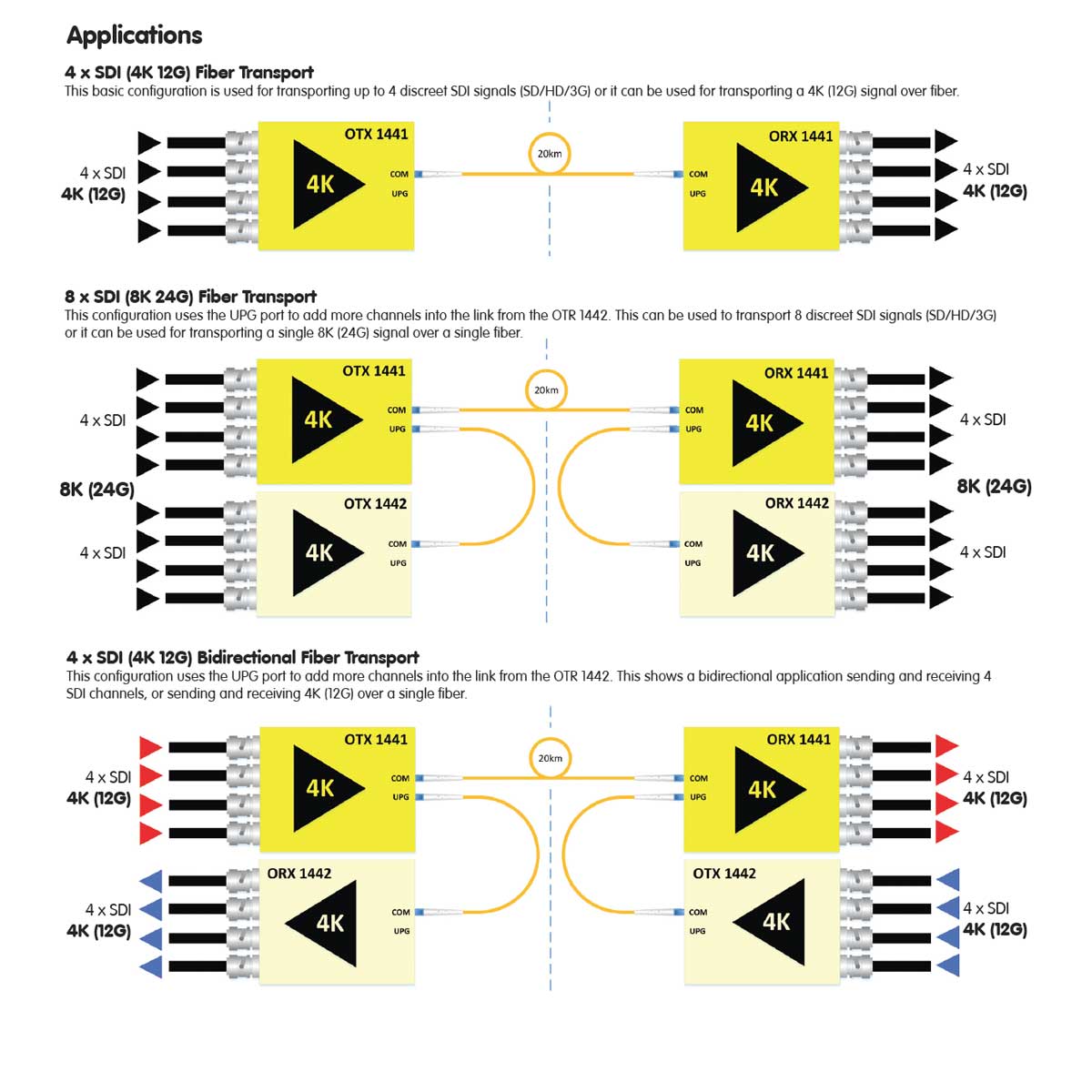

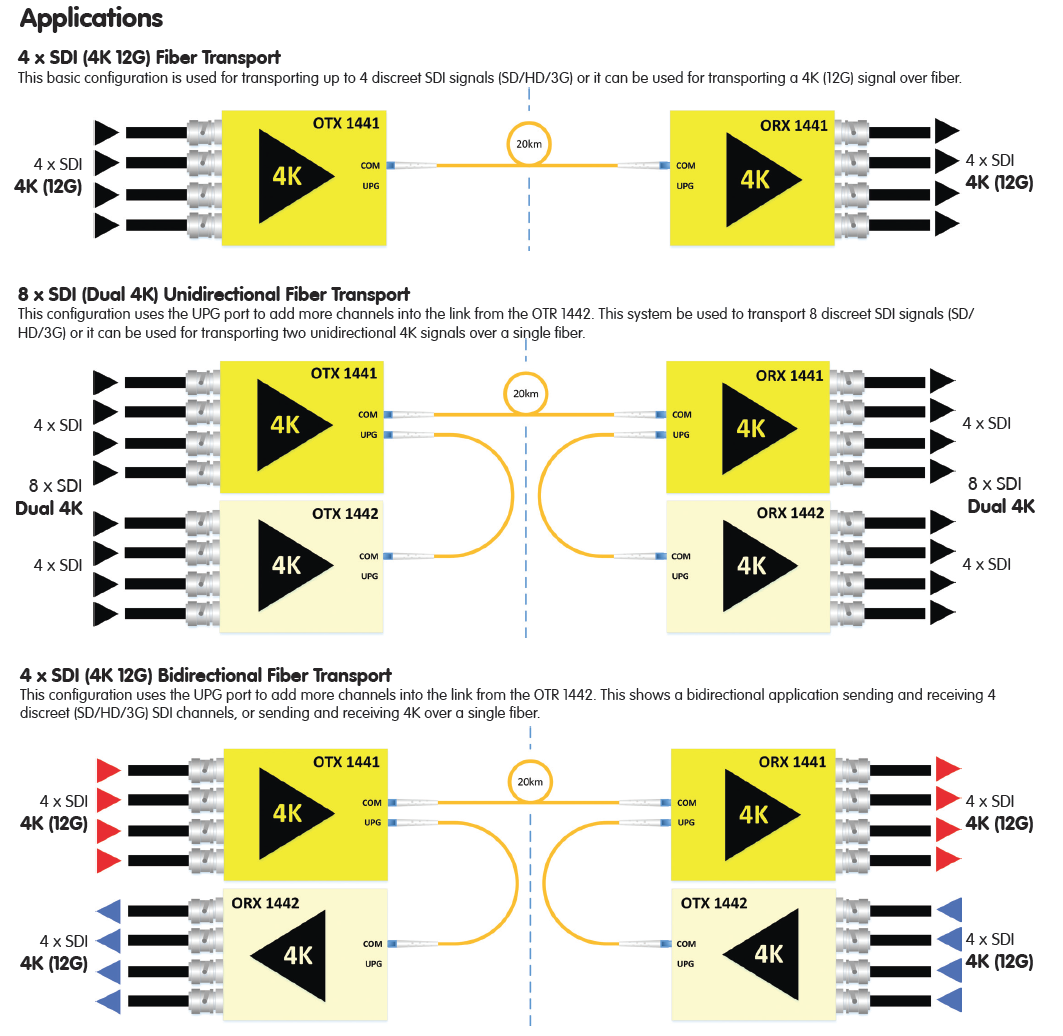

An expansion port is included for the connection of the OTR 1442 to add 4 more SDI channels (for 8 channels over a single fiber)

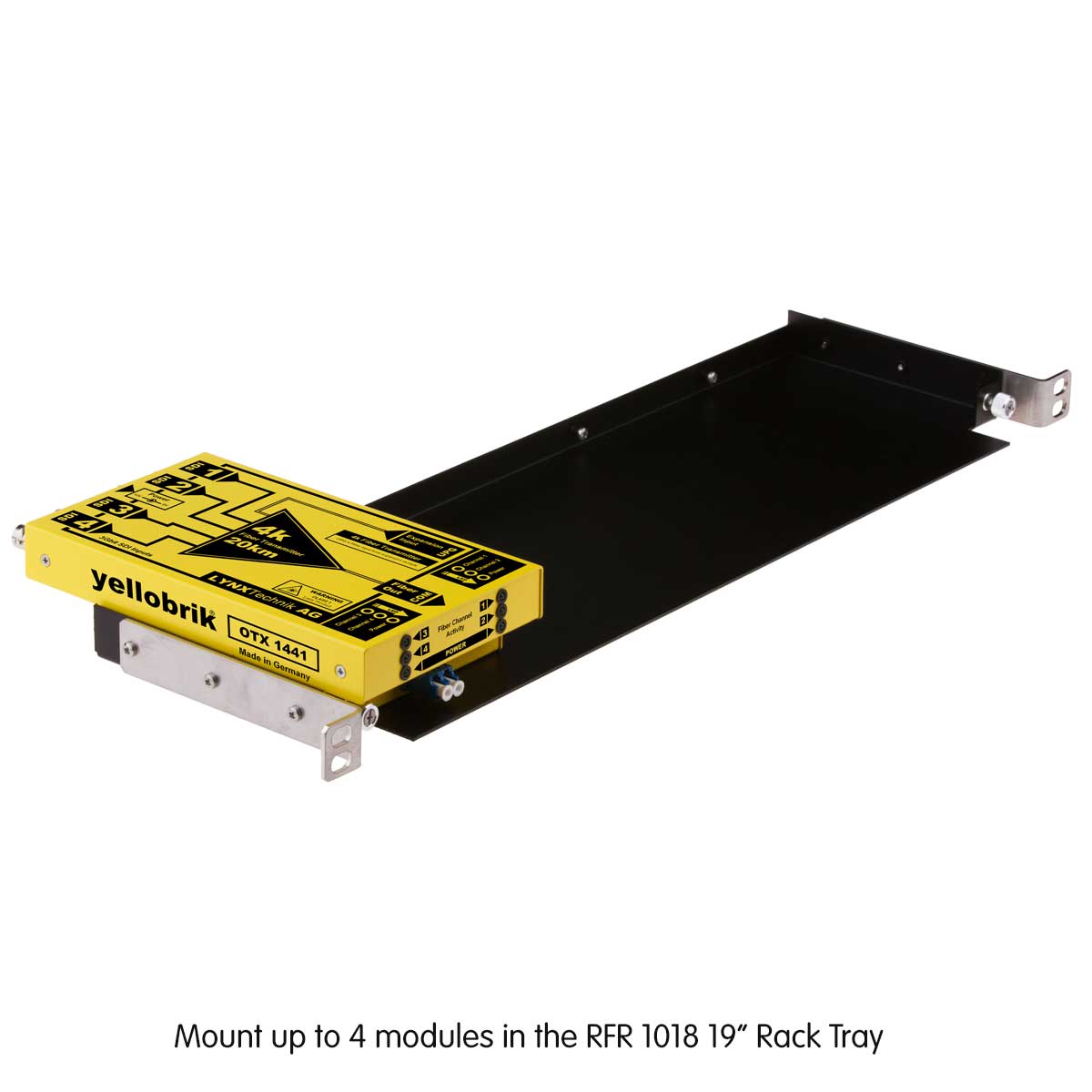

LED Indicators are provided for channel presence and power. An optional 19” rack mount tray is available which can accommodate up to 4 modules (RFR 1018).
No more pages to load
Key Features
- Supports for 4 independent 270M / 1.5G / 3G channels
- Transport (uncompressed) up to 20km* (12 miles*) over single fiber link
- Each channel supports resolutions up to 1080p/60Hz
- Each channel individually re-clocked
- Embedded audio / metadata support
- Integrated expansion port to add more channels
- LED indicators for channel activity and power
- Kit includes transmitter, receiver and power supplies
- Optional 19” Rack tray to mount (max) 4 modules
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479321151 | OTR 1441 | 4K Fiber Transport System SMF (LC Connector) |
| Options | ||
| 4250479310186 | RFR 1018 | 19″ 0.5RU Mounting Tray |
| 4250479314016 | P-TAP 1000 | P-TAP Battery Power Adapter Cable |
| 4250479314009 | XLR-1000 | 4 Pin XLR Battery Power Adapter Cable |
| 4250479323278 | LC/FC SIM | Simplex LC/FC Fiber Adapter |
| 4250479318250 | LC/SC SIM | Simplex LC/SC Fiber Adapter |
| 4250479318151 | LC/ST SIM | Simplex LC/ST Fiber Adapter |
SDI Video Inputs:
- OTX 1441 Transmitter Module = 4 x SDI inputs on 75 Ohm BNC connector
- ORX 1441 Receiver Module = 4 x SDI inputs on 75 Ohm BNC connector
- SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2/4:2:0
- 8, 10, 12-bit
- 3G-SDI Level A or B Dual Link
- Multi-standard operation from 270Mbit/s to 3Gbit/s
- Multi-rate re-clocking: 270M / 1.5Gbit/s / 3Gbit/s
- Transparent: Transports entire SDI payload including all embedded audio and any ancillary / metadata.
Electrical Return Loss:
- 5GHz: >15dB
- 3GHz: >10dB
Automatic cable EQ: (Belden 1694A cable)
- 270Mbit/s = 250m
- 5Gbit/s = 190m
- 3Gbit/s = 140m
Optical Output:
1 x fiber optic output: (COM)
- Simplex (Singlemode) LC/PC
- SMPTE 297M – 2006
Wavelengths: (CWDM)
- 1270nm, 1290nm, 1310nm, 1330nm (Singlemode)
Optical Input:
1 x Fiber Optic Input (UPG)
- Simplex (Singlemode) LC/PC
- Expansion port for the input of other compatible CWDM wavelengths
Optical Budget:
- 6dBm (Singlemode)
Indicators
- Signal Present LED indication for each channel
- Power LED (x2)
Max. distance*
- 20km* (12.4 miles*) @ 3Gbit/s (Singlemode)
Power
- OTX 1441 = +12V DC @ 4.1W nominal – (supports 7 – 24V DC input range)
- ORX 1441 = +12V DC @ 3.8W nominal – (supports 7 – 24V DC input range)
- Power Present LED on side of module
Physical Size: (per module, including connectors)
- Metric:170mm x 100mm x 41mm
- Inches: 6.7” x 3.9” x 1.6”
Weight: (per module)
- 600g (21.1oz)
Operational Temperature Range:
- Ambient 5 – 40ºC (41 – 104ºF) 90% Humidity (non-condensing)
—-
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
