OSP 5852 M
5 Channel 1 x 2 Fiber Splitter (90%-10%)

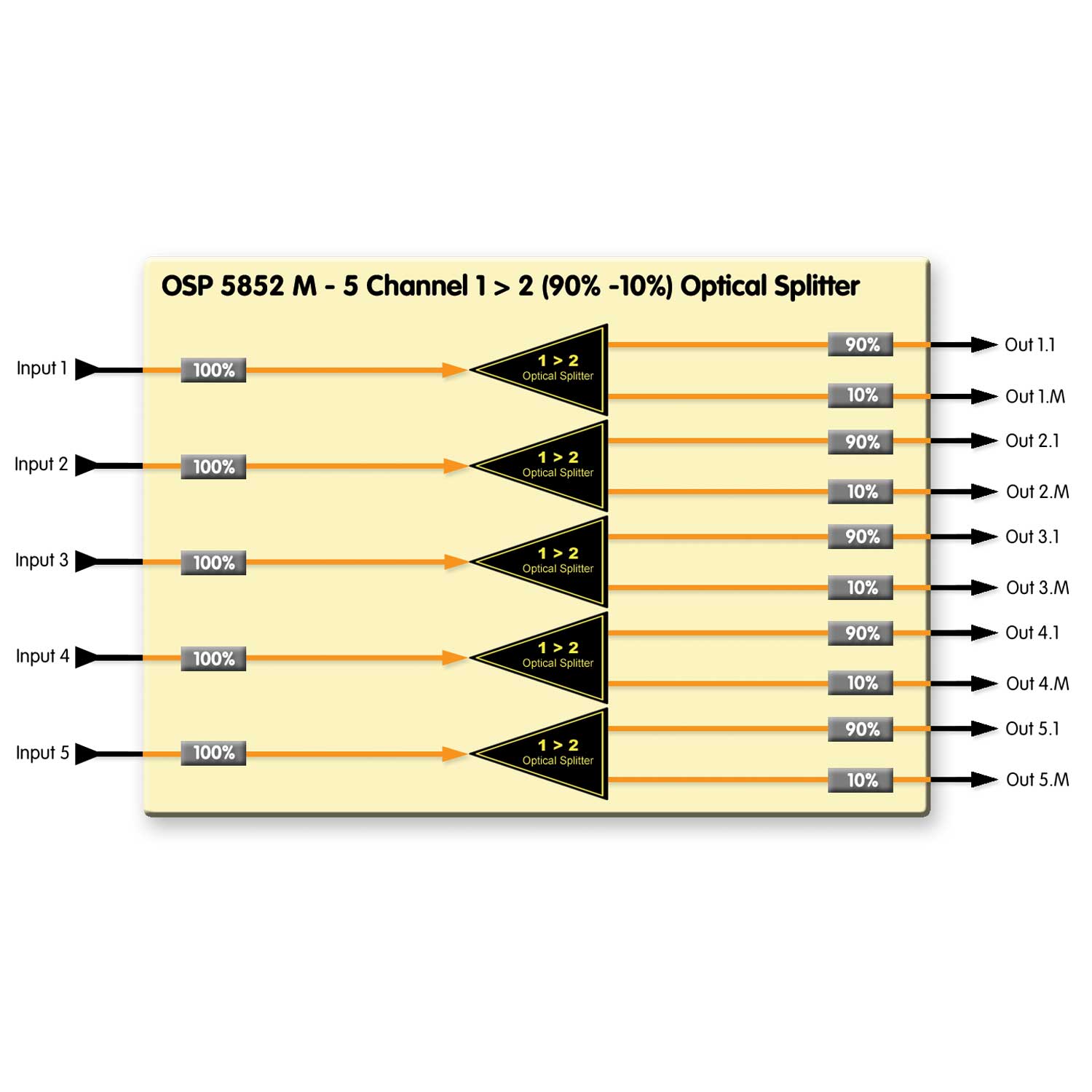

The OSP 5852 M provides 5 independent 1>2 optical splitter / combiners in a single module. For each channel the optical input is split into 2 outputs, each one having 90% of the input power and the other 10% which is useful for monitoring applications.

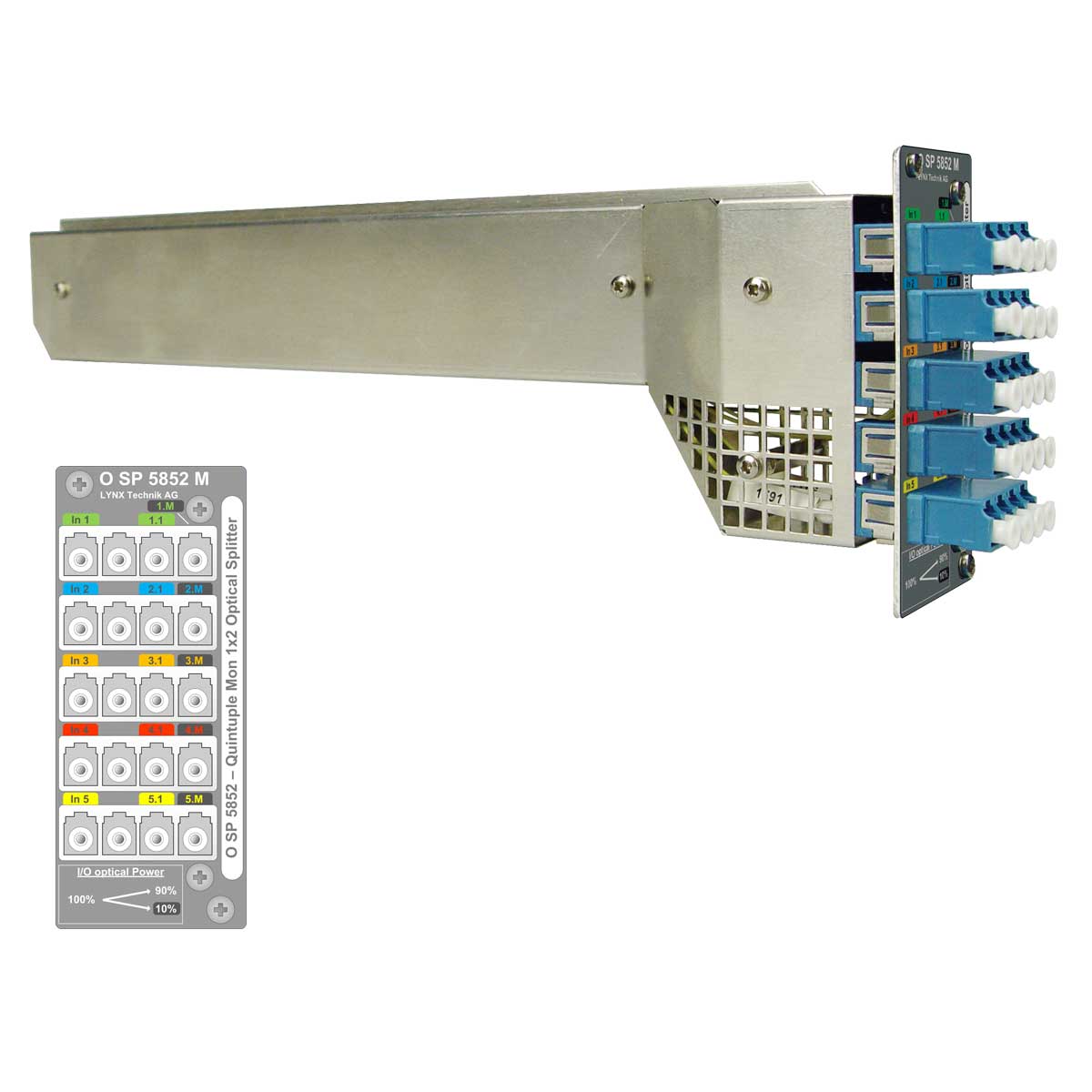

The module is passive in operation, meaning it requires no power, and is mechanically compatible with all Series 5000 rack frames and installs from the rear of the rack.
No more pages to load
Key Features
- Five precision 1>2 optical splitters in a single module
- Each channel has 90% / 10% split ratio
- LC – PC connections (singlemode)
- Compatible will all Series 5000 rack frames (2RU and 1RU)
- Occupies one card slot
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479322240 | OSP 5852 M | Five Channel 1>2 Optical Splitter (90%-10%) |
| Options | ||
| 4250479321373 | RFR 5013 | 19″ 2RU Rack Frame for Passive Fiber Modules |
| 4250479318182 | LC/LC SIM | LC to LC Fiber Patch Cable (0.5m) |
Optical I/O
- Input 5 (1 per channel)
- Outputs 10 (2 per channel)
- Connector type LC – PC (singlemode)
- Operating Wavelengths 1260nm – 1650nm
Performance
- Insertion loss (incl. connector) 4.0 dB
- Split ratio % 90/10
- Polarization dependent loss max 0.3dB
- Return Loss > 55dB
- Directivity > 55dB
- Max input power 500mw
Mechanical
- Size 85mm x 286mm (not incl. connectors)
- Weight 150 g
Ambient
- Temperature -20°C to 85°C Maintaining specifications
- Humidity 90% Max non condensing
