OSP 5824
Dual 1 x 4 Fiber Splitter (25%-25%-25%-25%)

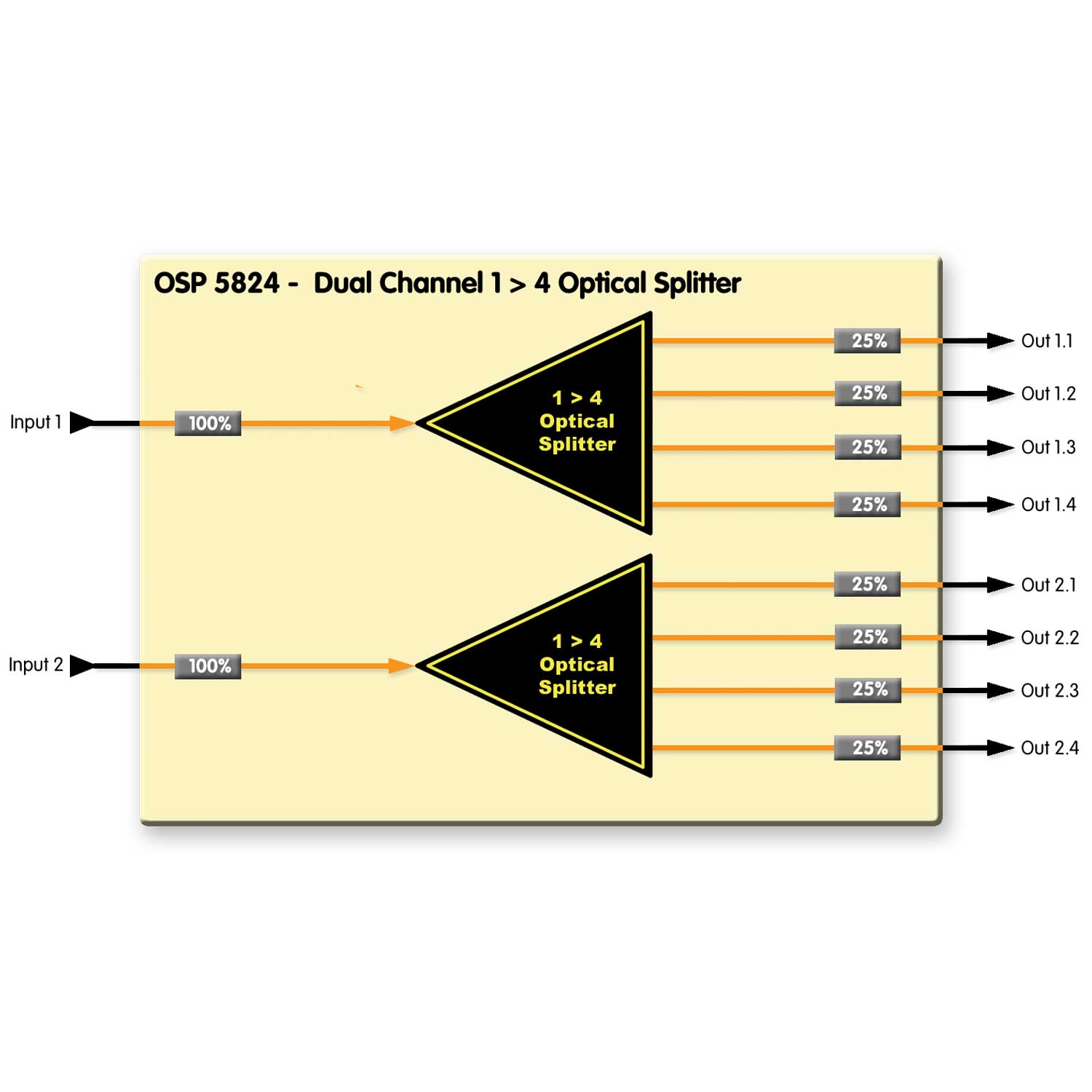

The OSP 5824 provides 2 independent 1>4 optical splitter / combiners in a single module. For each channel the optical input is split into 4 outputs, each one having 25% of the input power.

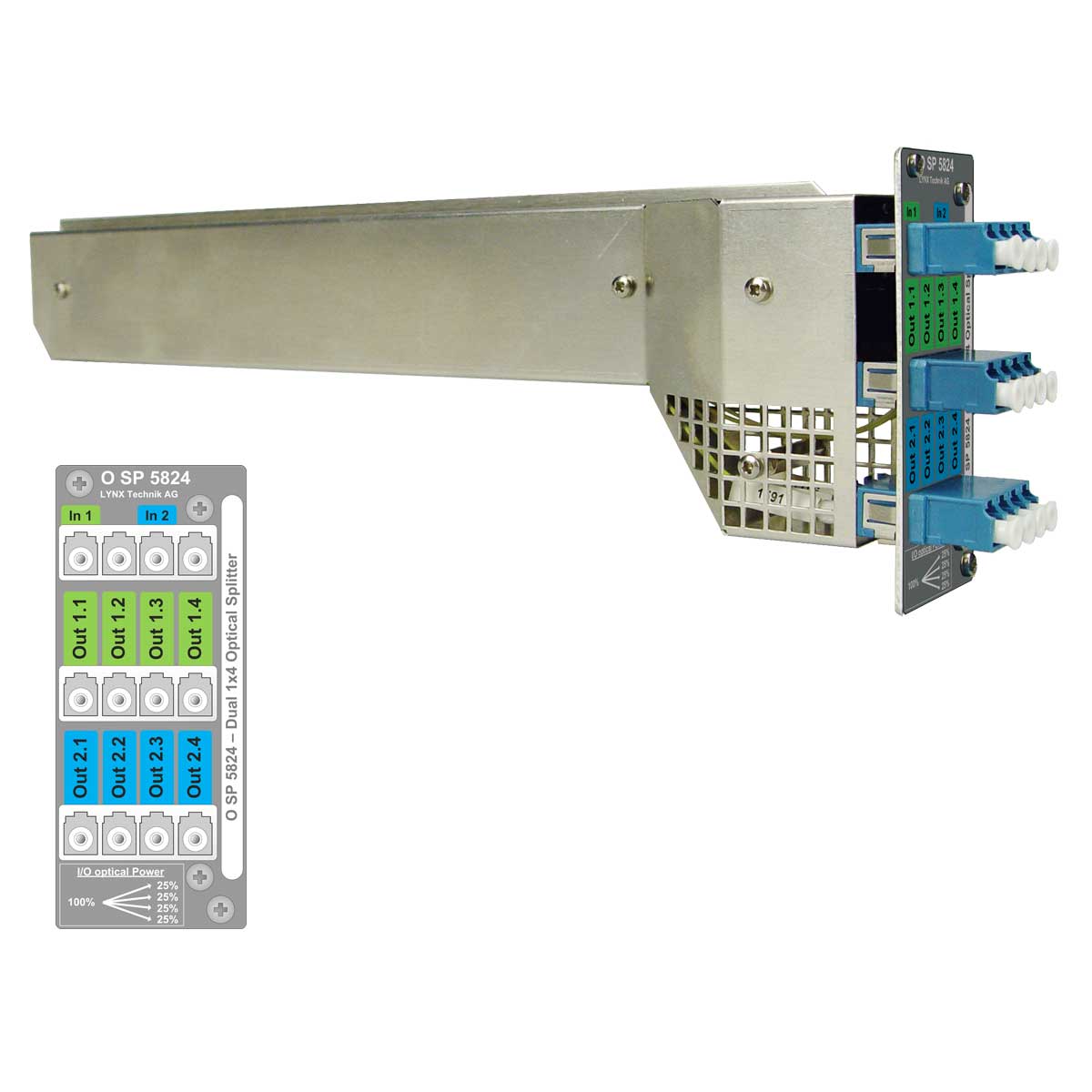

The module is passive in operation, meaning it requires no power, and is mechanically compatible with all Series 5000 rack frames and installs from the rear of the rack.
No more pages to load
Key Features
- Two 1>4 optical splitters in a single module
- Each channel has 25% / 25% / 25%/ 25% split ratio
- LC – PC connections (singlemode)
- Compatible will all Series 5000 rack frames (2RU and 1RU)
- Occupies one card slot
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479322318 | OSP 5824 | Dual 1>4 Optical Splitter (25%-25%-25%-25%) |
| Options | ||
| 4250479321373 | RFR 5013 | 19″ 2RU Rack Frame for Passive Fiber Modules |
| 4250479318182 | LC/LC SIM | LC to LC Fiber Patch Cable (0.5m) |
Optical I/O
- Inputs 2 (1 per channel)
- Outputs 8 (4 per channel)
- Connector type LC – PC (singlemode)
- Operating Wavelengths 1260nm – 1650nm
Performance
- Insertion loss (incl. connector) 4.0 dB
- Split ratio % 25/25/25/25
- Polarization dependent loss max 0.3dB
- Return Loss > 55dB
- Directivity > 55dB
- Max input power 500mw
Mechanical
- Size 85mm x 286mm (not incl. connectors)
- Weight 150 g
Ambient
- Temperature -20°C to 85°C Maintaining specifications
- Humidity 90% Max non condensing
