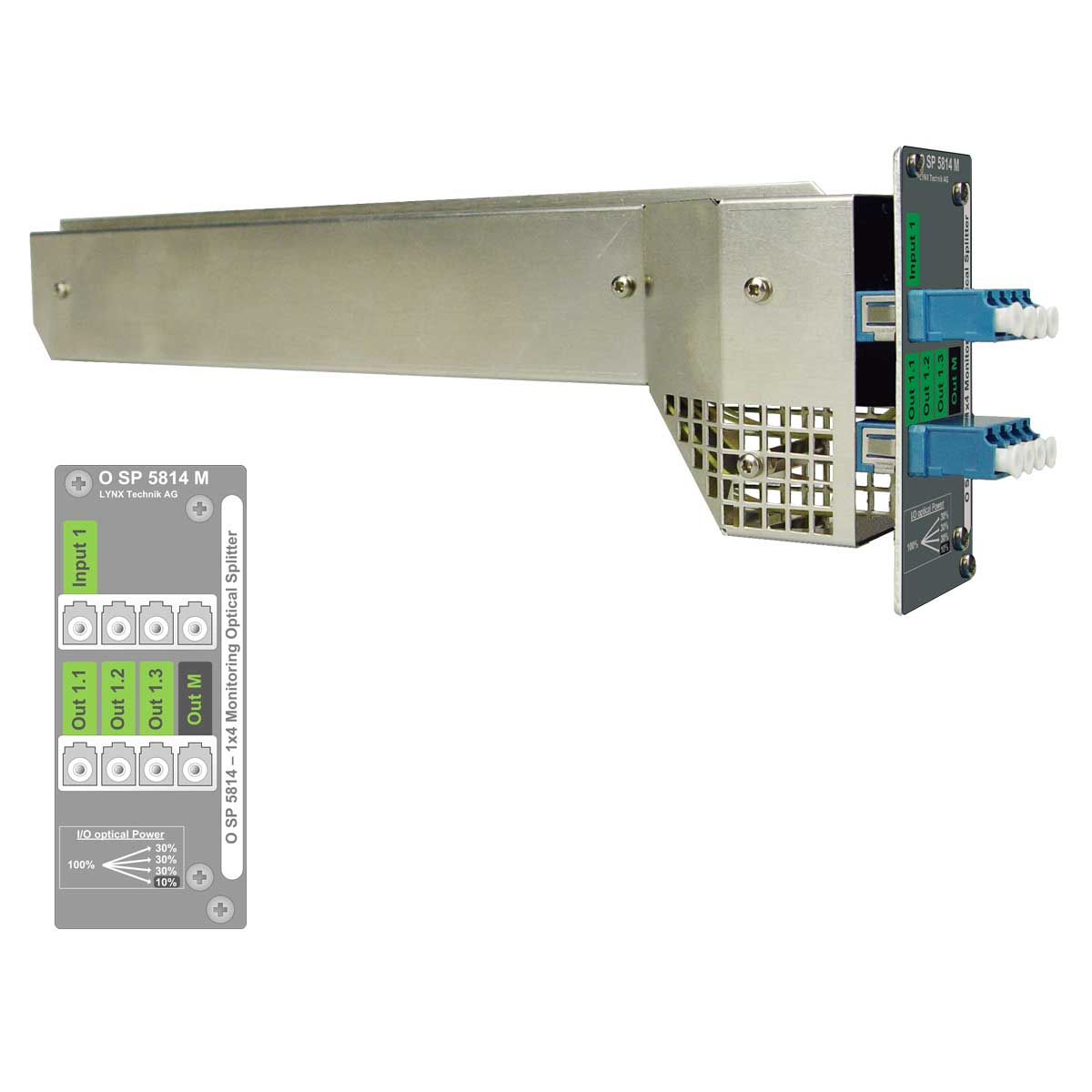

OSP 5814 M

1 > 4 Fiber Optic Splitter (30%-30%-30%-10%)

Specialty

Fiber

Documentation

Product Documentation

Features

  • Precision 1>4 optical splitter
  • 30% / 30% / 30% / 10% split ratio
  • LC – PC connections (singlemode)
  • Compatible will all Series 5000 rack frames (2RU and 1RU)
  • Occupies one card slot

Description

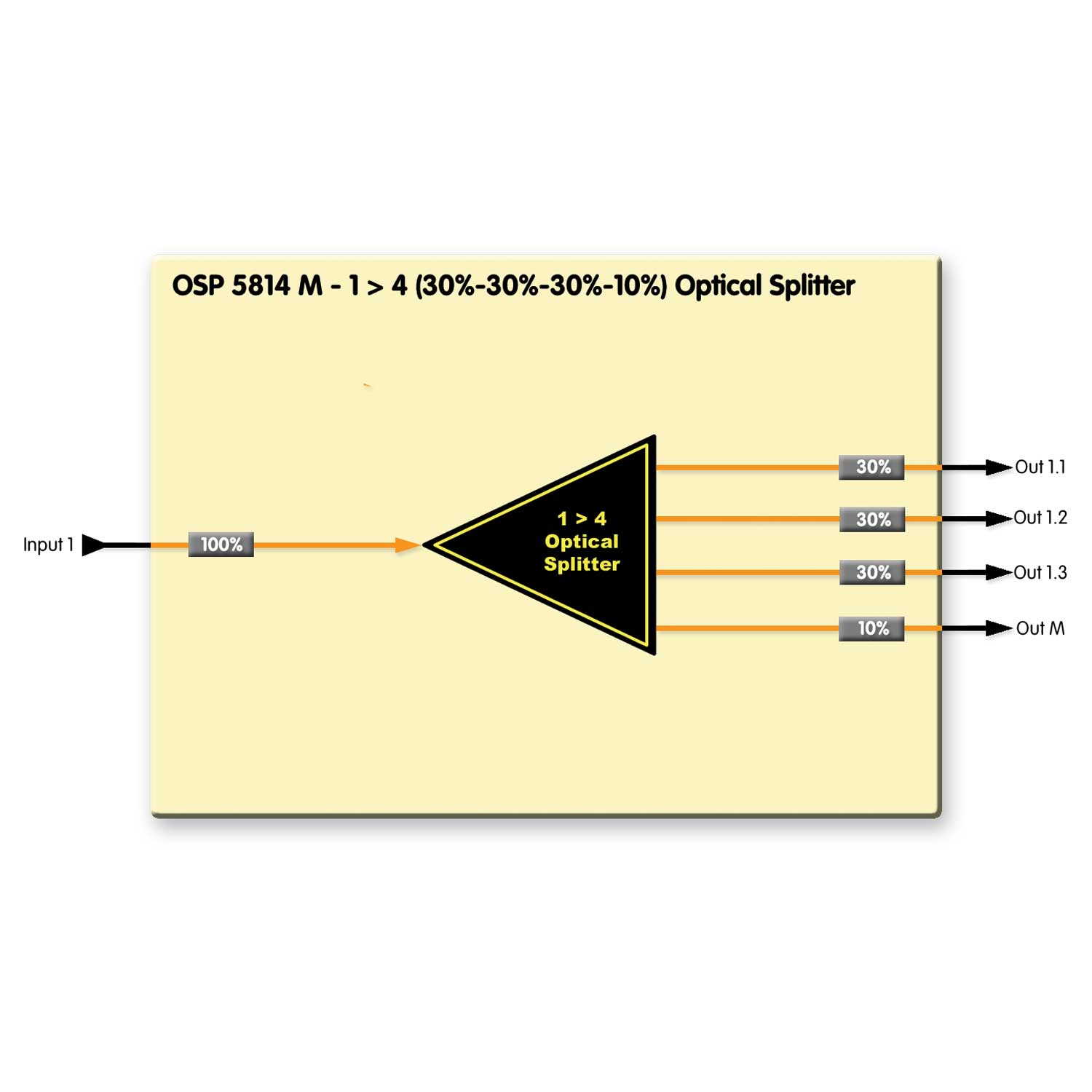

The OSP 5814 M is a 1 > 4 optical splitter / combiner. The optical input is split into 4 outputs, three outputs one having 30% of the input power, and one with 10% which is useful for monitoring applications.

The module is passive in operation, meaning it requires no power, and is mechanically compatible with all Series 5000 rack frames and installs from the rear of the rack.

Accessories

RFR 5013

19″ 2RU Rack Frame for Passive Fiber Modules

Ordering Information

UPC / EANModelDescription
4250479322257OSP 5814 M1>4 Optical Splitter (30%-30%-30%-10%)
Options
4250479321373RFR 501319" 2RU Rack Frame for Passive Fiber Modules
4250479318182LC/LC SIMLC to LC Fiber Patch Cable (0.5m)
