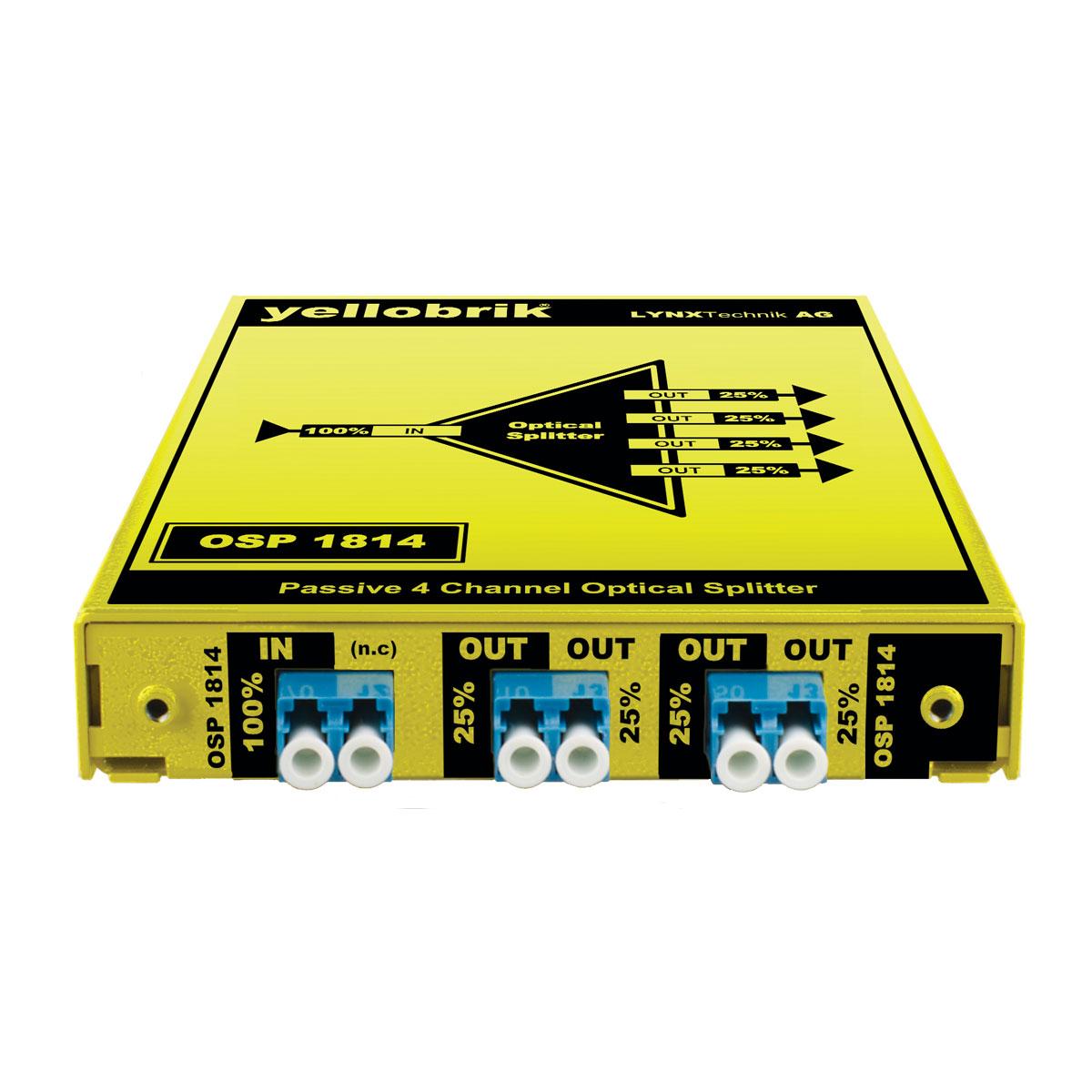

OSP 1814
4 Channel Fiber Optic Splitter (25/25/25/25)
The OSP 1814 is a compact passive 4 channel fiber optic splitter with a 25/25/25/25 (equal) split ratio. Passive operation – no power needed
The modules can be used standalone or integrated into the optional RFR 1018 1/2 RU 19” rack frame, which can accommodate multiple modules. Ideal for system installations.
No more pages to load
Key Features
- Split a fiber optic signal into 4 separate paths
- 25% / 25% / 25% / 25% split ratio
- Passive operation (no power required)
- LC/PC single mode optical connections
- Optional ½ RU 19” rack frame (RFR 1018)
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479359819 | OSP 1814 | 4 Channel Optical Splitter (25/25/25/25) |
| Options | ||
| 4250479310186 | RFR 1018 | 19″ 0.5RU Mounting Tray |
| 4250479318182 | LC/LC SIM | Simplex LC/LC Patch Cable |
Fiber I/O
- 1 x Fiber optic input
- 4 x Fiber optic outputs
- 25% / 25% / 25% / 25% split ratio
- Operating wavelengths: 1260nm to 1650nm
- LC/PC Singlemode
Performance
- Insertion loss (including connector and split loss) = 4dB
- Polarization insertion loss = 0.3dB (Max)
- Return loss = > 55dB
- Directivity = > 55dB
- Max input power = 500mw
Power
- No power required (passive operation)
Physical Size:
- Metric:100mm x 130mm x 19mm
- Inches: 3.93” x 5.12” x 0.75”
Weight:
- 120g (4.3oz)
