ORX 5800
3G-SDI Quad Fiber Optic Receiver
The ORX 5800 is a 4-Channel Fiber Optic to 3G-SDI converter with router for video signals up to 1080p60. Each channel has automatic input clock rate and signal presence detection with optional reclocking.
Two of the fiber inputs can be substituted for 3G-SDI BNC inputs. In non-reclocked mode the module will transparently pass any data between 15Mbit/s and 3Gbit/s. Support for ASI/DVB and SMPTE 310 signals is available.
The standard mode of operation will directly map each input to its corresponding output. An integral 4×4 signal router can be used to change I/O channel mapping.

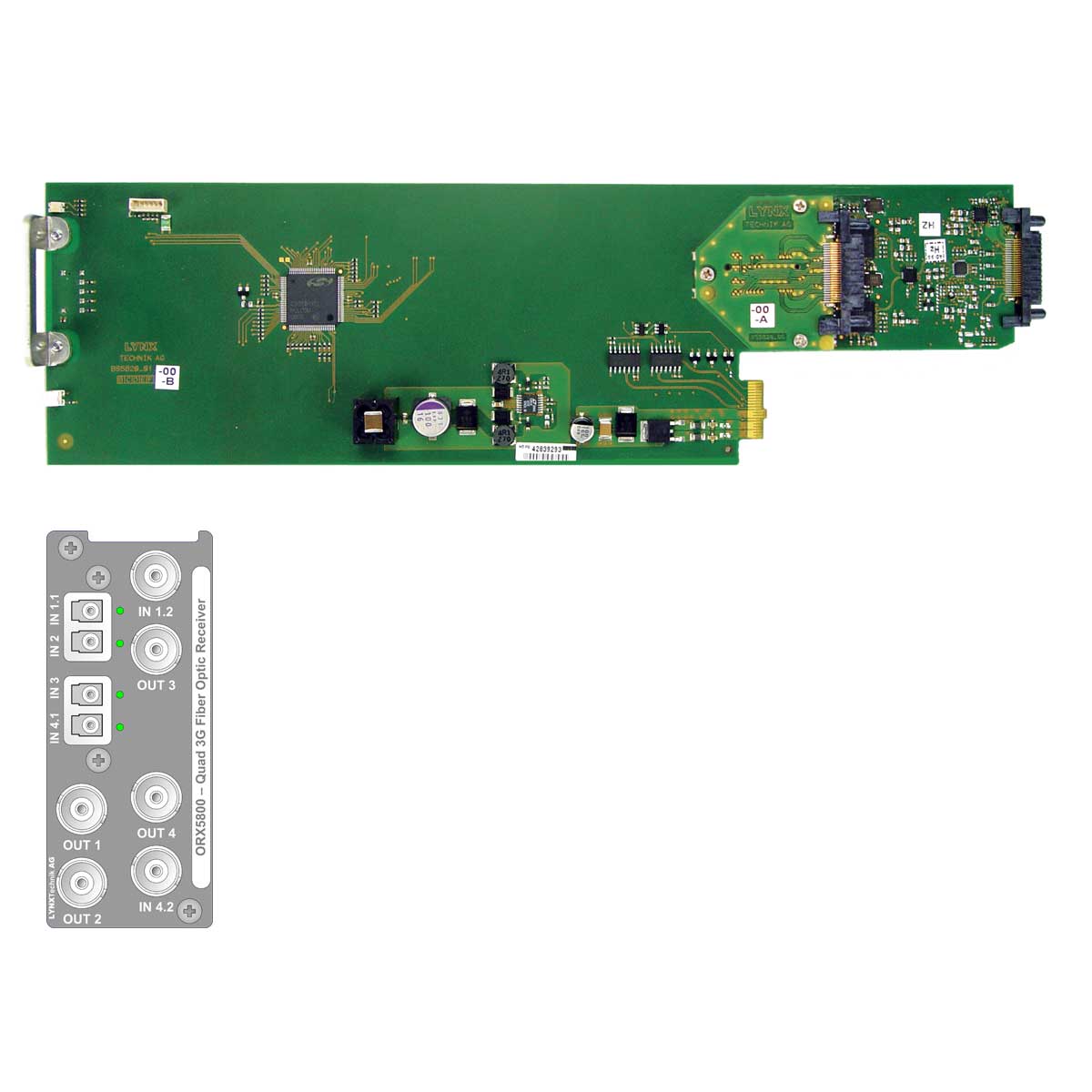

Up to 10 ORX 5800 (40 fiber Rx) can be placed in a standard 2RU Lynx rack frame. The fiber SFPs are secured to a connector board allowing for the main card to be removed or swapped without affecting the rear connections.
This module is ideally suited for demanding digital multi-format broadcast and professional applications. It is fully compatible with Lynx Centraal for remote control, status monitoring and error reporting.
NOTE: When installed in an RFR 5018 US chassis please make sure a rack controller (RCT 5023 G) is present in the rack.
Key Features
- 4 independent Fiber RX channels and 4 x SDI outputs
- Supports SDI/ASI/DVB and SMPTE 310 up to 3Gbit/s
- 1260nm to 1620nm wavelength operational range
- Selectable electrical / optical inputs for 2 channels
- Reclocking or non-reclocking mode for each channel
- Auto-detects input clock rate
- Transparently pass data between 15Mbit/s and 3Gbit/s in non-reclocked mode.
- Input presence detection with LED indication for each channel
- Internal 4×4 signal router for flexible I/O mapping (remote only)
- LC fiber optic connections
- Fiber SFP modules secured in backplane. Module can be freely removed or replaced without disconnection of fiber cables
- Remote control and status monitoring when used with the APPolo control system
- Hot Swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479322172 | ORX 5800 | Quad Fiber to SDI Receiver (SD/HD/3G) |
| Options | ||
| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
SDI Optical Inputs
- Signal type SMPTE 297M – 2006
- Connector LC / PC Singlemode
- No.Of inputs 4 (on 2 dual channel SFP fiber sub modules)
- Receiver Sensitivity -3 dBm to -16 dBm
- Wavelength Range 1260nm – 1620nm
SDI Electrical Inputs
- Signal type Serial Digital Video SMPTE 259M, 292M, 424M
- DVB-ASI and SMPTE 310
- Input level 0.8 v peak to peak
- No. of Inputs 2 – (channels 3 and 4 switchable with fiber inputs)
- Input Impedance 75 Ohms
- Connector BNC
- Return Loss
- > 15dB (1.485Gbit)
- > 10dB (2.97Gbit)
SDI Video Outputs
- Signal Type Serial Digital Video SMPTE 259M, 292M, 424M
- DVB-ASI and SMPTE 310
- Video standard Follows input
- Output level 0.8 v peak to peak
- Output impedance 75 Ohm
- No.Of Outputs 4 (1 for each channel)
- Connector BNC
- Return loss > 15dB (1.485Gbit)
- > 10dB (2.97Gbit)
- Jitter
- < 0.20 UI (270 MHz)
- < 1.0 UI – Timing Jitter – (1.485Gbit – 2.97Gbit)
- < 0.20 UI – Alignment Jitter – (1.485Gbit – 2.97Gbit)
Performance
- Cable equalization
- Up to 250M using Belden 8281 (270Mbit)
- Up to 140m using Belden 1694A (1.485Gbit)
- Up to 80m using Belden 1694A (2.97Gbit)
- Control Remote control possible when used with LYNX controller
- Status monitoring (LED) Signal presence (each input channel) plus general alarm
Electrical Specifications
- Operating Voltage 12 VDC
- Power Consumption < 7W
- Safety IEC 60950/ EN 60950/ VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g, connector plate 120g
Ambient
- Temperature 5°C to 40°C Maintaining specifications
- Humidity 90% Max non condensing
