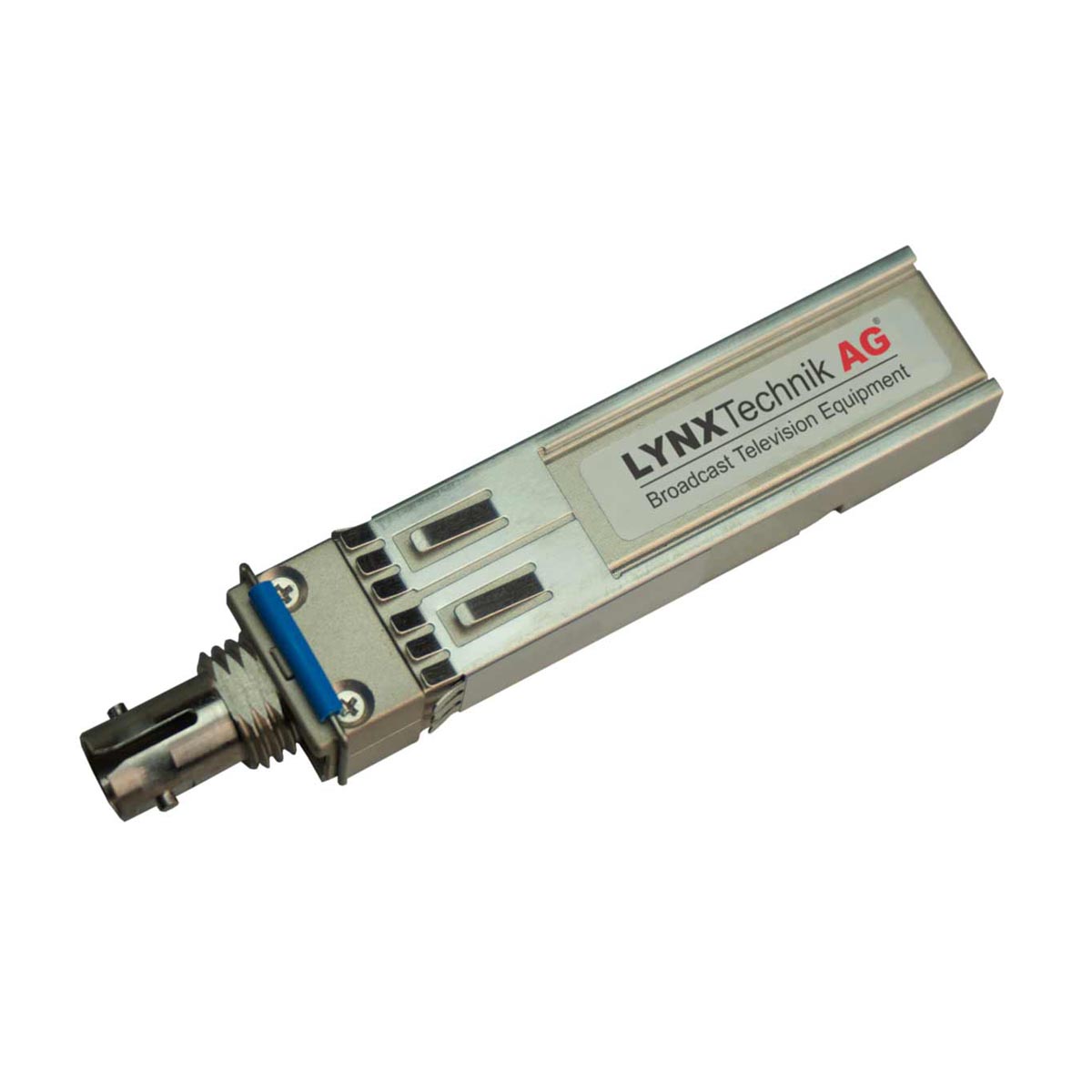

OH-TX-12G-ST

12G SDI Fiber Optic Transmitter (ST)

Specialty

Fiber, SDI 1.5G, SDI 270MBit, SDI 3G

Documentation

Product Documentation

Features



  • SDI multi-rate optical transmitter for 12G-SDI, 6G-SDI, 3G-SDI and HD-SDI
  • Support for SMPTE 2082, SMPTE 424M, SMPTE 292M.
  • 1310nm wavelength (non CWDM).
  • Distances up to 10km** (singlemode)
  • For use with yellobrik and greenMachine product lines
  • Pluggable and hot swappable
  • ST connector (singlemode fiber only)
  • Lead free and RoHS compliant

** Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of fiber cable and accumulated optical losses in the fiber link. Determine link losses and perform optical budget calculations to ensure correct operation.

Description



The OH-TX-12-ST SDI optical transmitter is an integrated part or plug in option for select LYNX Technik products. This SFP module facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fiber. Wavelength is a fixed 1310nm and suitable for distances up to 10km**. The module accommodates 12G, 6G, 3G and 1.5G SDI signals conforming to SMPTE 2082, 424M, 292M.

A socket, or “cage” is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.



Ordering Information

UPC / EANModelDescription
4250479327528OH-TX-12G-ST12G SDI Fiber Transmitter (1310nm)
