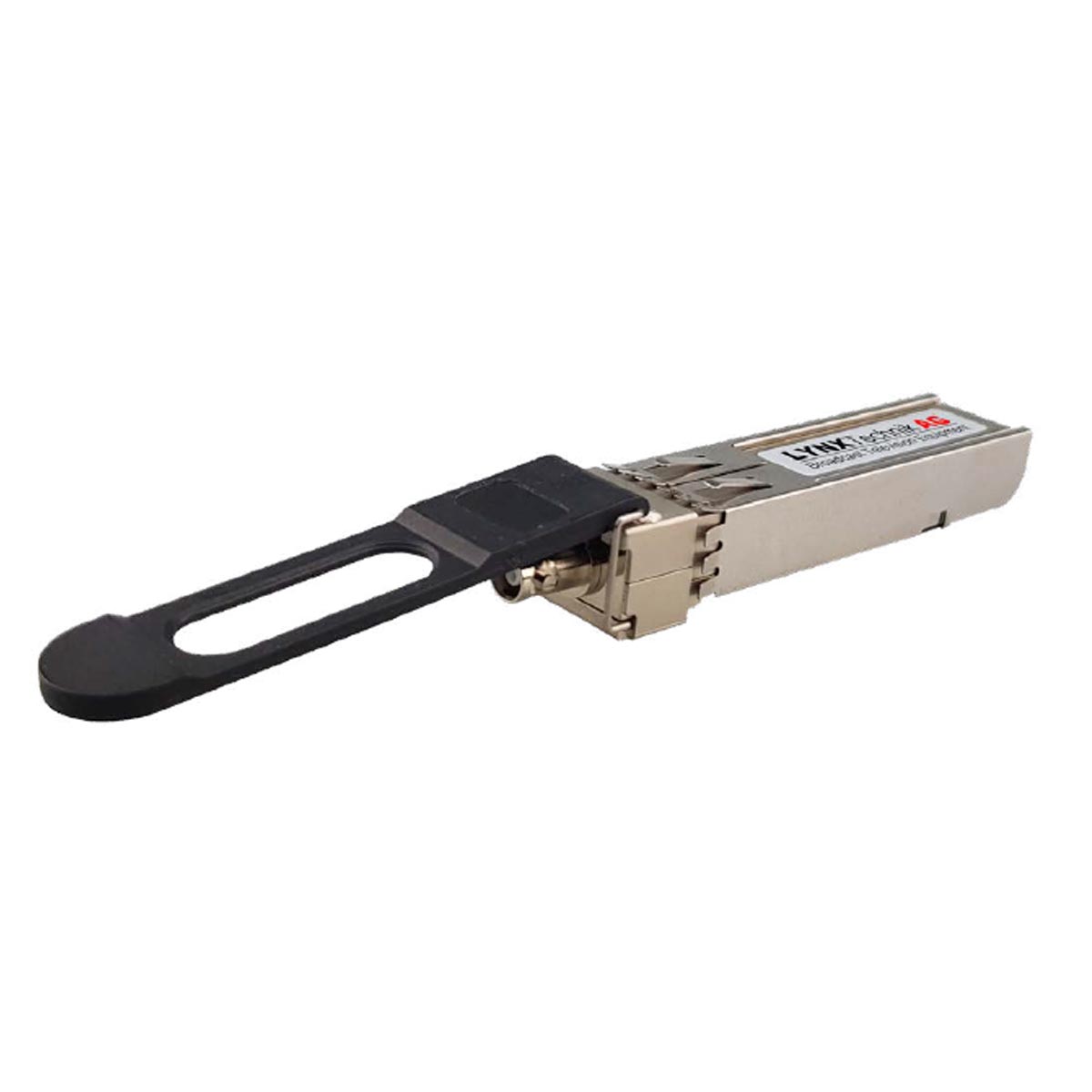

OH-TX-12G-SDI

OH-TX-12G-SDI

12G SDI HD-BNC Electrical Transmitter

Specialty

SDI 1.5G, SDI 12G, SDI 3G, SDI 6G

Documentation

Product Documentation

Features

  • Micro BNC (High-Density) connector
  • 12G/6G/3G/1.5G/SD-SDI coax Transmitter
  • Compatible with AES10 (MADI)
  • Support for SMPTE 2082, SMPTE 424M, SMPTE 292M
  • SFF-8431 compliant.
  • Pluggable and hot swappable
  • Lead free and RoHS compliant

Description

The OH-TX-12G-SDI single channel electrical transmitter is an integrated plug in option for selected LYNX Technik products. This facilitates converting the integrated fiber I/O SFP socket included in the products to output an electrical SDI signal with a high density micro BNC connector.

This supports the transmission of SDI electrical signals up to ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292 (HD) via micro BNC connector.

A socket, or a “cage” is provided for the SFP in the supporting LYNX product for easy installation or upgrade. This SFP module is hot swappable.



Ordering Information

UPC / EANModelDescription
4250479326651OH-TX-12G-SDI12G SDI HD Electrical Transmitter
