OH-TX-1-LC/SC/ST
3G SDI Fiber Optic Transmitter 10km
The OH-TX-1 fiber transmitter is available as a plug-in option for select LYNX Technik products.
This SFP module facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fiber. Wavelength is a fixed 1310nm and suitable for distances up to 10km* using singlemode fiber
The module accommodates 270Mbit / 1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

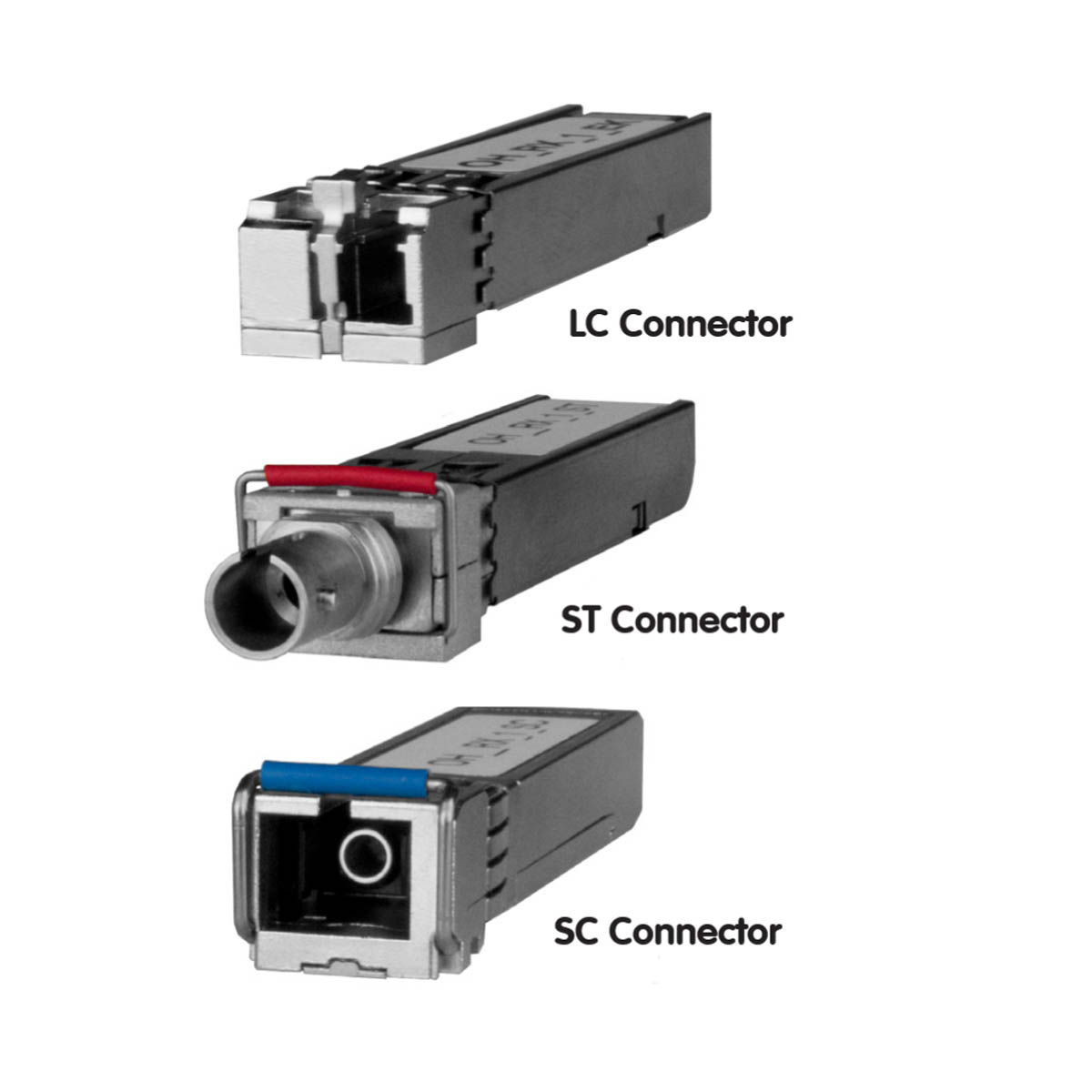

Three versions are available with LC, ST or SC fiber connectors
Supported Lynx Technik products feature a build-in SFP socket (“cage”) for easy installation or upgrades. SFPs are hot-swappable.
A compatible fiber receiver SFP would be the OH-RX-1-LC/SC/ST
Key Features
- 12G / 6G / 3G / 1.5G SDI fiber Transmitter
- Simplex LC, SC or ST connector
- Singlemode
- TX wavelength 1310nm
- Distances up to 10km*
- Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
- Pluggable and hot swappable
- Lead free and RoHS compliant
* Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of fiber cable and accumulated optical losses in the fiber link. Determine link losses and perform optical budget calculations to ensure correct operation.
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479320321 | OH-TX-1-LC | SDI TX Fiber SFP LC Connection (1310nm) |
| 4250479320215 | OH-TX-1-SC | SDI TX Fiber SFP SC Connection (1310nm) |
| 4250479320222 | OH-TX-1-ST | SDI TX Fiber SFP ST connection (1310nm) |
Refer to Datasheet
