OH-TT-12G-SDI

OH-TT-12G-SDI

12G SDI HD-BNC Dual Channel Electrical Transmitter

Specialty

SDI 1.5G, SDI 12G, SDI 3G, SDI 6G

Documentation

Product Documentation

Features

  • Duplex Micro BNC (High-Density) connector
  • 12G/6G/3G/1.5G/SD-SDI coax Transmitter
  • Compatible with DVB-ASI and AES10 (MADI)
  • Support for SMPTE-2082-1, SMPTE-2081-1, SMPTE-424, SMPTE-292 and SMPTE-259
  • SFF-8431 compliant.
  • Pluggable and hot swappable



Description

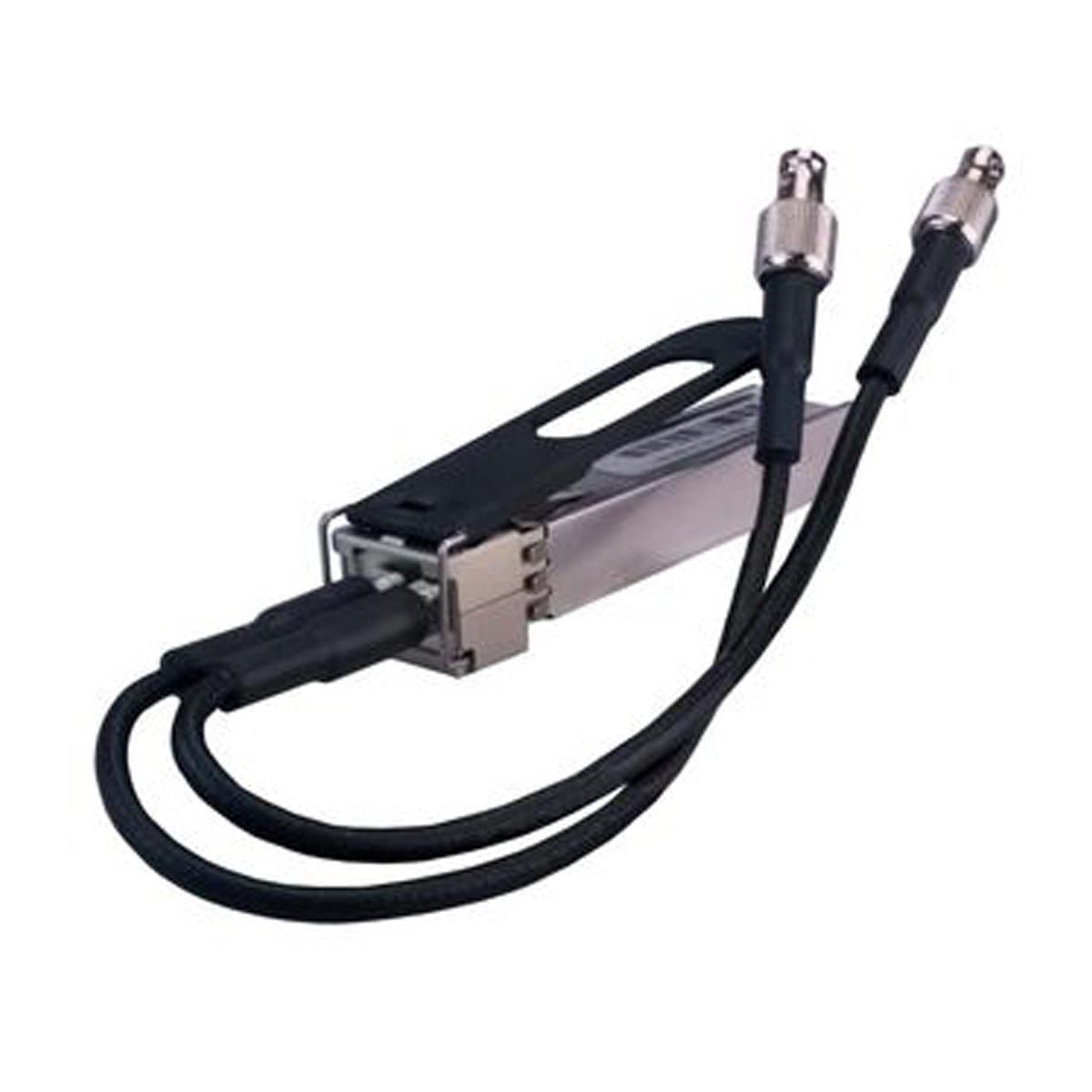

The OH-TT-12G-SDI is a 12G-SDI dual channel electrical transmitter module with high density micro BNC connectors. This facilitates converting the integrated fiber I/O SFP socket included in the products to output dual electrical SDI signals with a high density micro BNC connectors.

This supports SDI electrical signals up to ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and ST-259 (SD) and DVB-ASI over Belden 1694A cable via a micro BNC.

A socket, or a “cage” is provided for the SFP in the supporting LYNX product for easy installation or upgrade. This SFP module is hot swappable.



Ordering Information

UPC / EANModelDescription
4250479328181OH-TT-12G-SDI12G SDI HD Dual Electrical Transceiver
