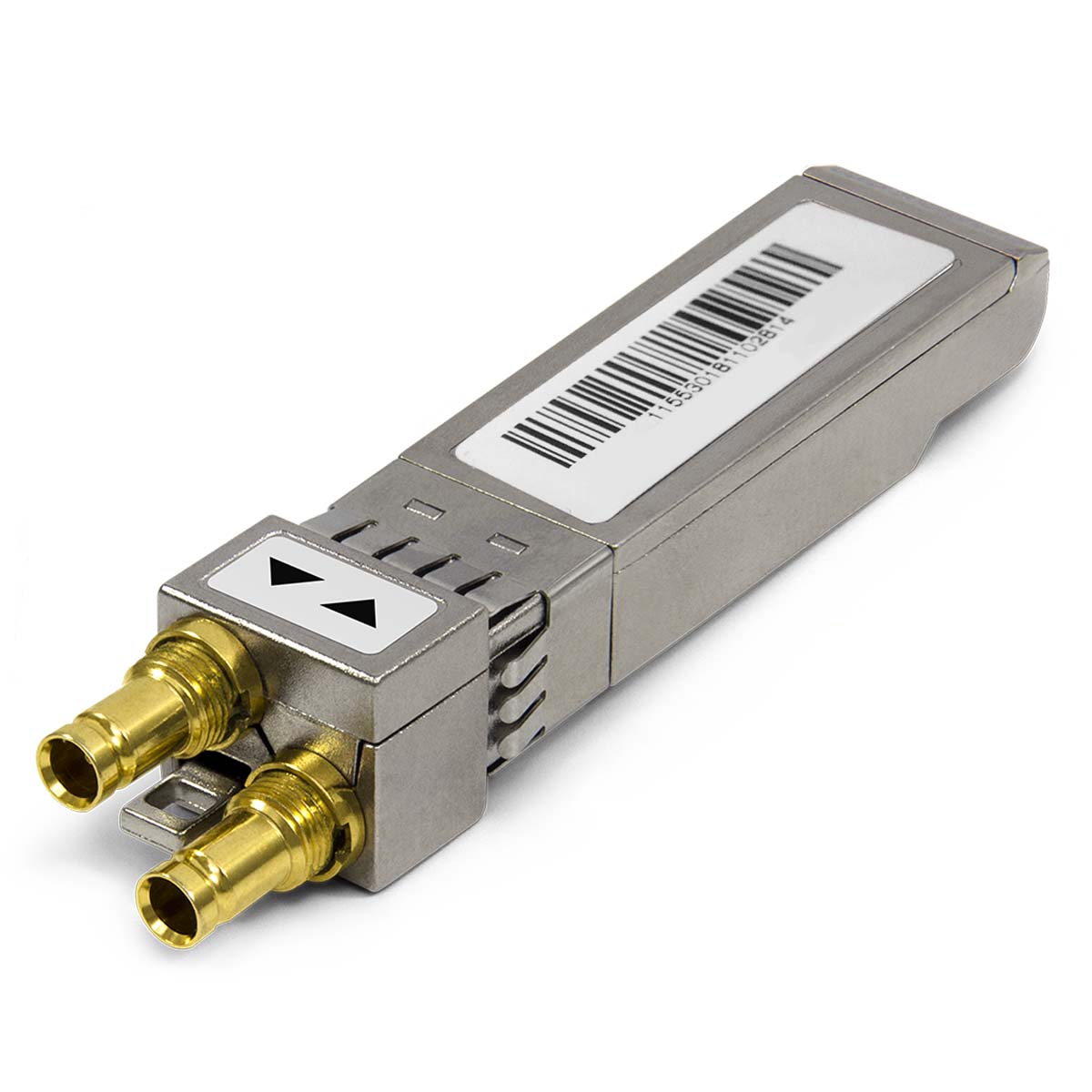

OH-TR-SDI

3Gbit SDI SFP Coaxial Transceiver

Specialty

Fiber, SDI 1.5G, SDI 270MBit, SDI 3G

Documentation

Product Documentation

Features

  • Coaxial SFP transceiver for 270Mbit, 1.5Gbit, 3Gbit SDI signals
  • Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • Converts integrated SDI fiber I/O ports to SDI electrical I/O ports
  • For use with yellobrik, Series 5000 and greenMachine product lines
  • DIN 1.0/2.3 connectors
  • Pluggable and hot swappable
  • Lead free and RoHS compliant



Description

The OH-TR-SDI coaxial transceiver is a fully integrated plug in option for select LYNX Technik products. This facilitates converting the integrated fiber I/O SFP socket included in the products to now accept electrical SDI signals.

The module accommodates 270Mbit, 1.5Gbit and 3Gbit SDI signals conforming to SMPTE 424M, 292M, 259M.

Electrical SDI connections are made using DIN 1.0/2.3 connectors.(adapter cable available RAC MDIN-BNC)



Accessories

RAC MDIN-BNC

Mini DIN to Standard 75 Ohm BNC Adapter Cable

Ordering Information

UPC / EANModelDescription
4250479325296OH-TR-SDI3G SDI SFP Coaxial Transceiver
