OH-TR-12G-SDI

OH-TR-12G-SDI

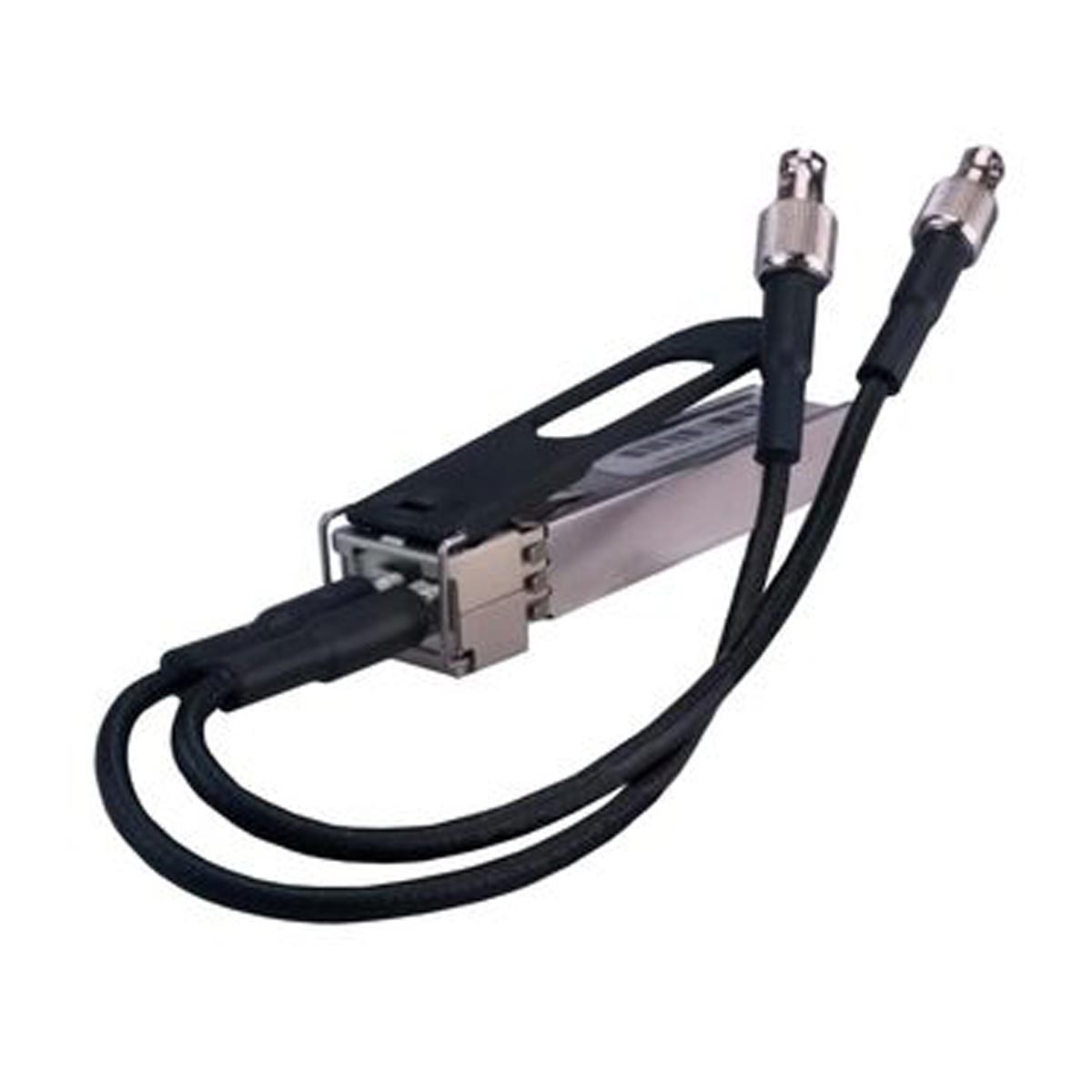

12G SDI HD-BNC Electrical Transceiver

Specialty

SDI 1.5G, SDI 12G, SDI 3G, SDI 6G

Documentation

Product Documentation

Features

  • Duplex Micro BNC (High-Density) connector
  • 2-Channel 12G/6G/3G/1.5G/SD-SDI electrical Transceiver
  • Compatible with DVB-ASI and AES10 (MADI)
  • Support for SMPTE-2082-1, SMPTE-2081-1, SMPTE-424, SMPTE-292 and SMPTE-259
  • SFF-8431 compliant.
  • Pluggable and hot swappable



Description

The OH-TR-12G-SDI electrical transceiver is a fully integrated plug in option for selected LYNX Technik products. This facilitates converting the integrated fiber I/O SFP socket included in the products to accept electrical SDI signals with high density micro BNC connectors.

The module accommodates 12Gbit, 6Gbit, 3Gbit, 1.5Gbit and 270Mbit SDI signals conforming to SMPTE-2082-1, SMPTE-2081-1, SMPTE-424, SMPTE-292 and SMPTE-259.

A socket, or a “cage” is provided for the SFP in the supporting LYNX product for easy installation or upgrade. This SFP module is hot swappable.



Ordering Information

UPC / EANModelDescription
4250479328174OH-TR-12G-SDI12G SDI HD Electrical Transceiver
