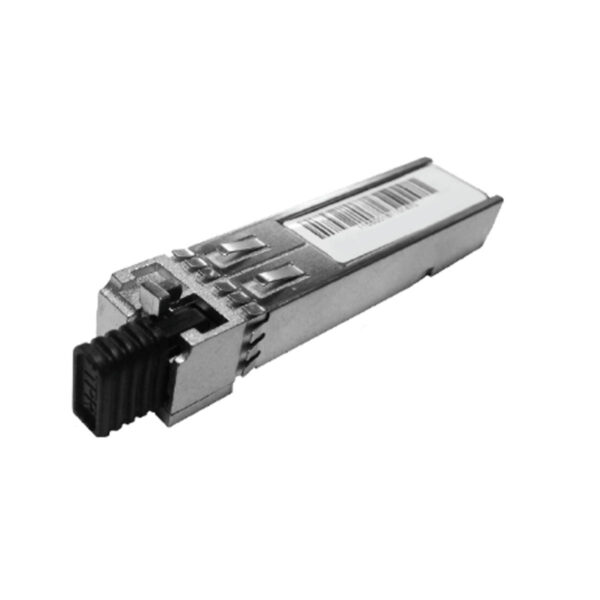

OH-RX-8-LC
3G-SDI Fiber Optic Receiver (High Sensitivity)
The OH-RX-8-LC SDI optical receiver is an integrated part or plug in option for select LYNX Technik yellobrik and Series 5000 products.
The is a specialized “High Sensitivity” device which can facilitate the support of longer fiber links by increasing the systems available optic budget (sensitivity is -26dBm)
This module converts SDI optical signals (up to 3G) into electrical signals for further processing within these products.
This is a “catch all” device and supports all wavelengths between 1260 and 1620nm according to ITU-T G694.2 (18 wavelengths).
The module accommodates 270Mbit / 1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.
A socket, or “cage” is provided for the SFP in the supporting LYNX Technik product for easy installation or upgrade. The SFP is hot swappable.
Key Features
- Simplex LC connector
- 3G /1.5G / SD-SDI fiber Receiver
- High Sensitivity (-26dBm)
- Singlemode
- RX wavelengths 1260 to 1620nm
- Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
- Pluggable and hot swappable
- Lead free and RoHS compliant
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479320741 | OH-RX-8-LC | 3G SDI Fiber Receiver (Hi Sense) |
