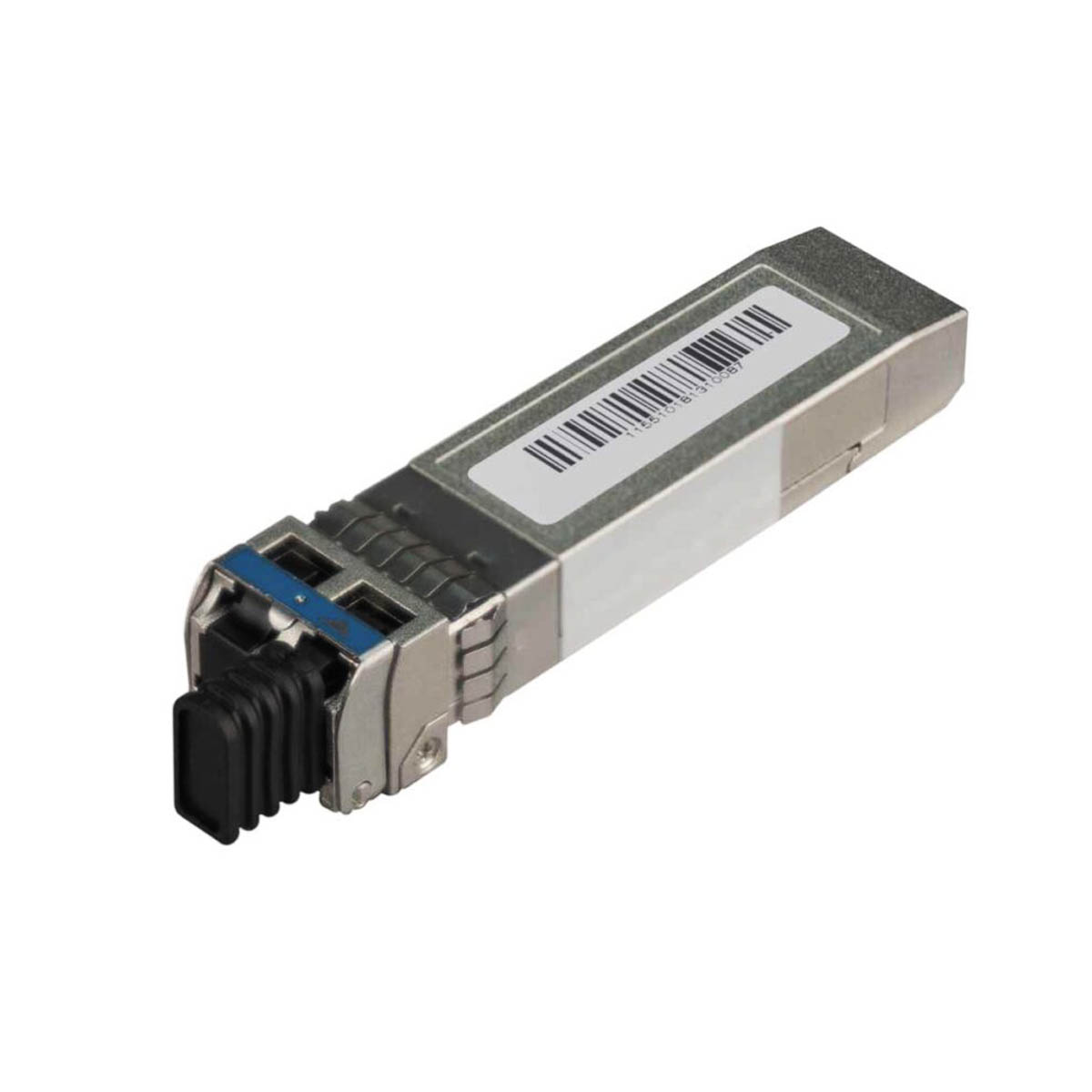

OH-RX-0-850-MM

3G SDI Multimode Fiber Optic Receiver

The OH-RX-0-MM SDI optical receiver is an integrated part or plug in option for select LYNX Technik yellobrik and Series 5000 products.

This module facilitates the conversion of the SDI optical signal into an electrical signal for further processing within these products. This module if for use with Multimode fiber and wavelengths of 850nm. The module accommodates 270Mbit / 1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

It is recommended to use 62.5 / 125um Multimode fiber cable with this SFP module

A socket, or “cage” is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.

Key Features

Simplex LC connector
3G / 1.5G / 270M SDI Fiber Receiver
Multimode
RX wavelength 850nm
Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Pluggable and hot swappable
Lead free and RoHS compliant

Ordering Information

UPC / EAN	Model	Description
4250479318274	OH-RX-0-850-MM	SDI Fiber Receiver SFP – Multimode

Refer to Datasheet
