OH-BD-10G-1330-LC
10GbE Simplex Fiber Transceiver 20km

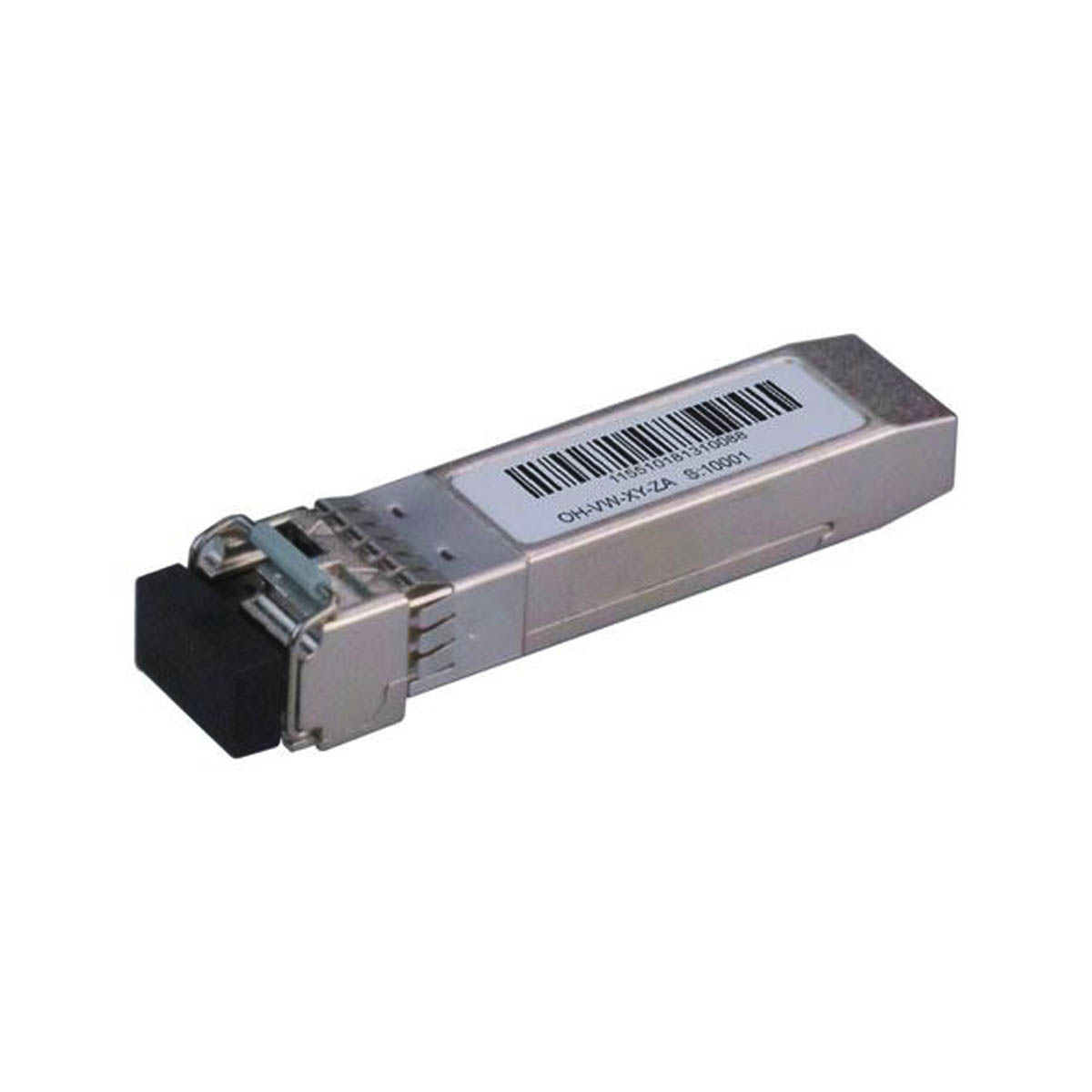

The OH-BD-10G-1330-LC is a 10 Gbit/s bidirectional optical transceiver. The TX wavelength is 1330 nm and suitable for distances up to 20km*. The RX wavelength is between 1260 nm and 1280 nm.
This SFP is typically used in simple WDM closed loop point to point applications and is intended to be paired with the OH-BD-10G-1270-LC SFP at the other end of the fiber link.
*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation
Key Features
- Simplex LC Connector
- 10GbE and 1GbE fiber Transceiver
- Single-mode
- TX wavelength 1330nm
- RX wavelength 1270nm
- Distances up to 20km*
- Pluggable and hot swappable
- Lead free and RoHS compliant
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479328204 | OH-BD-10G-1330-LC | 10GbE Fiber Transceiver 1330nm |
Refer to Datasheet
