OCM 1843 yellobrik CWDM Multiplexter
OCM 1841/2/3/4 yellobrik CWDM Multiplexter
yellobrik OCM Modules in RFR 1018 frame

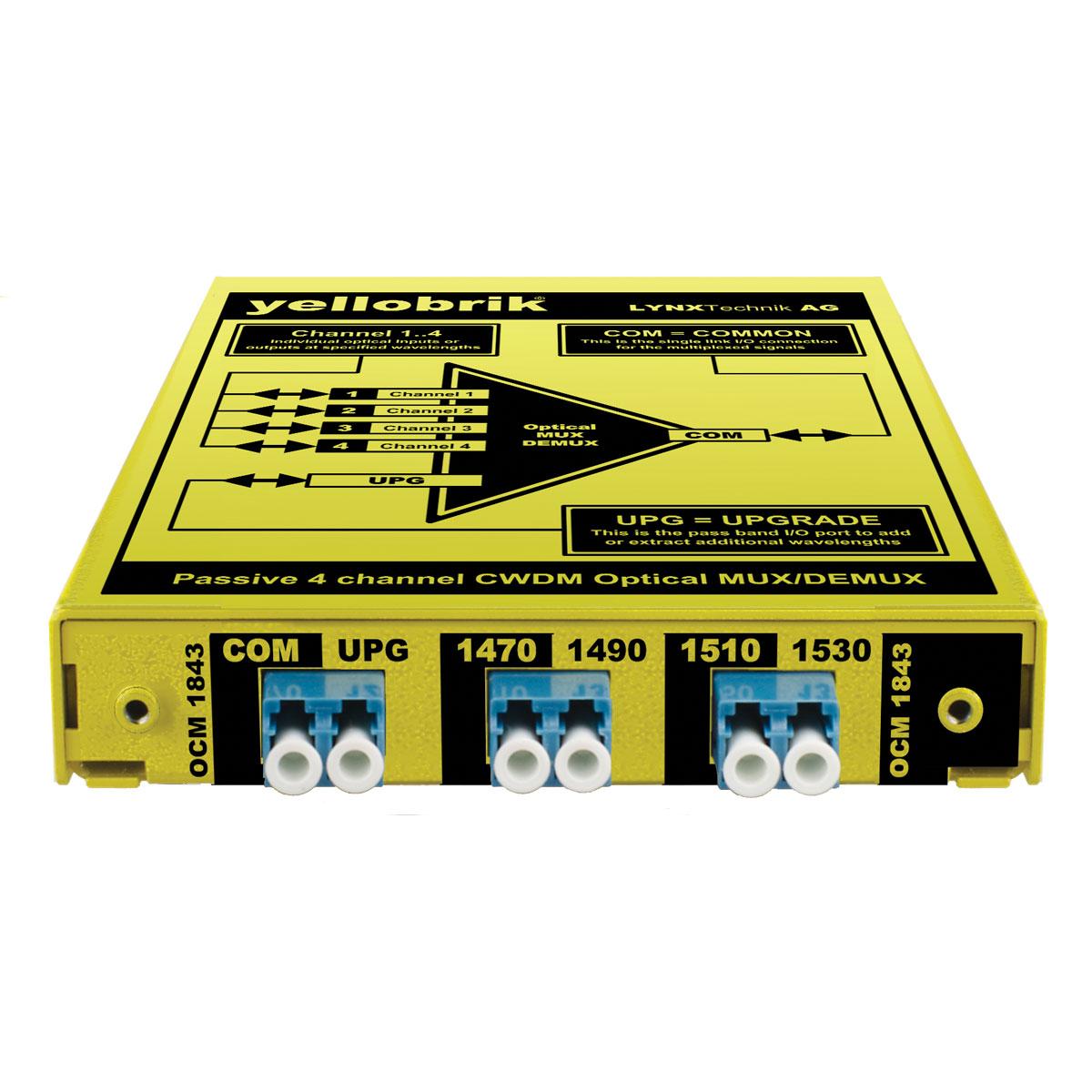

OCM 1843

4 Channel CWDM MUX/DEMUX [1470-1530nm]

Specialty

CWDM, Fiber

Documentation

Product Documentation

Features

  • Send / receive up to 4 channels over a single fiber link
  • Wavelengths 1470nm, 1490nm, 1510nm, 1530nm
  • Passive operation (no power required)
  • Combine all four modules for up to 16 channels
  • LC/PC single mode optical connections
  • Optional ½ RU 19” rack frame (RFR 1018)

Description

The OCM 1843 is a compact CWDM passive 4 channel optical multiplexer / demultiplexer designed to send and receive up to 4 individual signals over a single fiber link. This module accommodates 1470nm, 1490nm, 1510nm, 1530nm.  The module has an UPG (Upgrade) port to cascade additional 4 channel modules expanding the  system to a maximum of 16 channels.

The modules can be used standalone or integrated into the optional RFR 1018 1/2 RU 19” rack frame, which can accommodate all four modules. Ideal for system installations.

Accessories

LC/LC DUP

LC to LC Duplex Fiber Patch Cable

RFR 1018 yellobrik 19" Rack TrayRFR 1018 yellobrik rack tray with modules installed

RFR 1018

yellobrik 19″ 0.5RU Rack Tray

Ordering Information

UPC / EANModelDescription
4250479319431OCM 18434 Channel CWDM MUX/DEMUX [1470-1530]
Options
4250479310186RFR 101819" 0.5RU Mounting Tray
4250479323155LC/LC DUPDuplex LC/LC Patch Cable
4250479318182LC/LC SIM Simplex LC/LC Patch Cable
