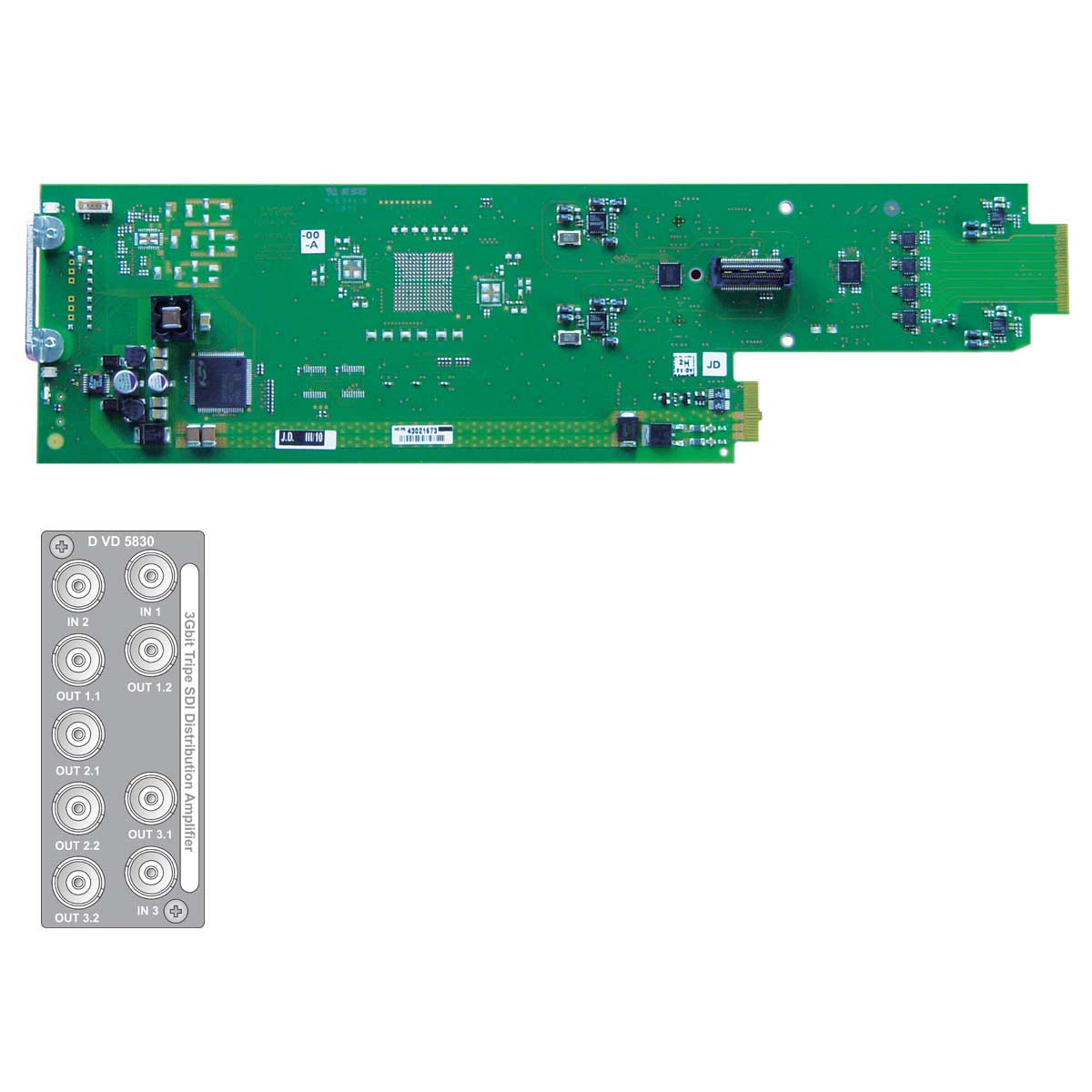

DVD 5830
3G-SDI Three Channel (1 x 2) Distribution Amplifier
The DVD 5830 is a flexible 3 channel SDI distribution amplifier. There are three sets of 2 outputs which can be freely mapped to the three inputs to obtain the desired functionality. Each channel can be set to reclocking or non-reclocking mode. This module is ideally suited for demanding digital multi-format broadcast and professional applications.
The module auto-detects the input video standard with support for all SDI video formats up to 3Gbit/s. In non re-clocked mode the module will transparently pass any data between 143 Mbit/s and 3Gbits/s.
All SDI outputs are non inverting, making it ideal for ASI signal distribution.
Local settings are provided via an integrated dip switch on the card edge.
Remote control, status monitoring and error reporting is possible when using the LynxCentraal control system.
Key Features
- Supports all SDI video formats
- 3 x SDI inputs and 3 sets of 2 outputs (user mapped)
- Reclocking or non-reclocking mode for each channel
- All SDI outputs are non inverting
- Auto-detect input video standard
- Transparently pass data between 143 Mbit/s and 3Gbit/s in non re-clocked mode
- Input presence detection with LED indication for each input
- Remote control and status monitoring when used with the LynxCentraal control system
- Hot Swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479321687 | DVD 5830 | 3 Channel 3G-SDI Distribution Amplifier |
| Options | ||
| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
Supported Video Formats
- 2K 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080PsF 23.98, 24, 25, 29.97, 30
- HD 1920x1080i 50, 59.94, 60
- HD 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- SD 720x625i 50
- SD 720x525i 59.94
- YCbCr 4:4:4 / 4:2:2 / 4:2:0
- 8, 10, 12-bit
Video Inputs
- Signal Type Serial Digital Video SMPTE 259M, 292M, 424M
- DVB-ASI and SMPTE 310
- Video Standard All formats (270Mbit/s through 2.97Gbit/s)
- Input level 0.8 v peak to peak
- Input Impedance 75 Ohms
- No. Of inputs 3
- Connector BNC
- Return loss
- > 15dB (1.485Gbit)
- > 10dB (2.97Gbit)
Video Outputs
- Signal Type Serial Digital Video SMPTE 259M, 292M, 424M
- DVB-ASI and SMPTE 310
- Video standard Follows input
- Output level 0.8 v peak to peak
- Output impedance 75 Ohm
- No.Of Outputs 6 (three channels 1×2)
- Connector BNC
- Return loss
- > 15dB (1.485Gbit)
- > 10dB (2.97Gbit)
- Jitter
- < 0.20 UI (270Mbit)
- < 1.0 UI – Timing Jitter – (1.485Gbit – 2.97Gbit)
- < 0.20 UI – Alignment Jitter – (1.485Gbit – 2.97Gbit)
Performance
- Cable equalization
- Up to 250M using Belden 8281 (270Mbit)
- Up to 140m using Belden 1694A (1.485Gbit)
- Up to 80m using Belden 1694A (2.97Gbit)
Electrical Specifications
- Operating Voltage 12 VDC
- Power Consumption < 4W
- Safety IEC 60950/ EN 60950/ VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g, connector plate 50g
Ambient
- Temperature 5°C to 40°C Maintaining specifications
- Humidity 90% Max non condensing
