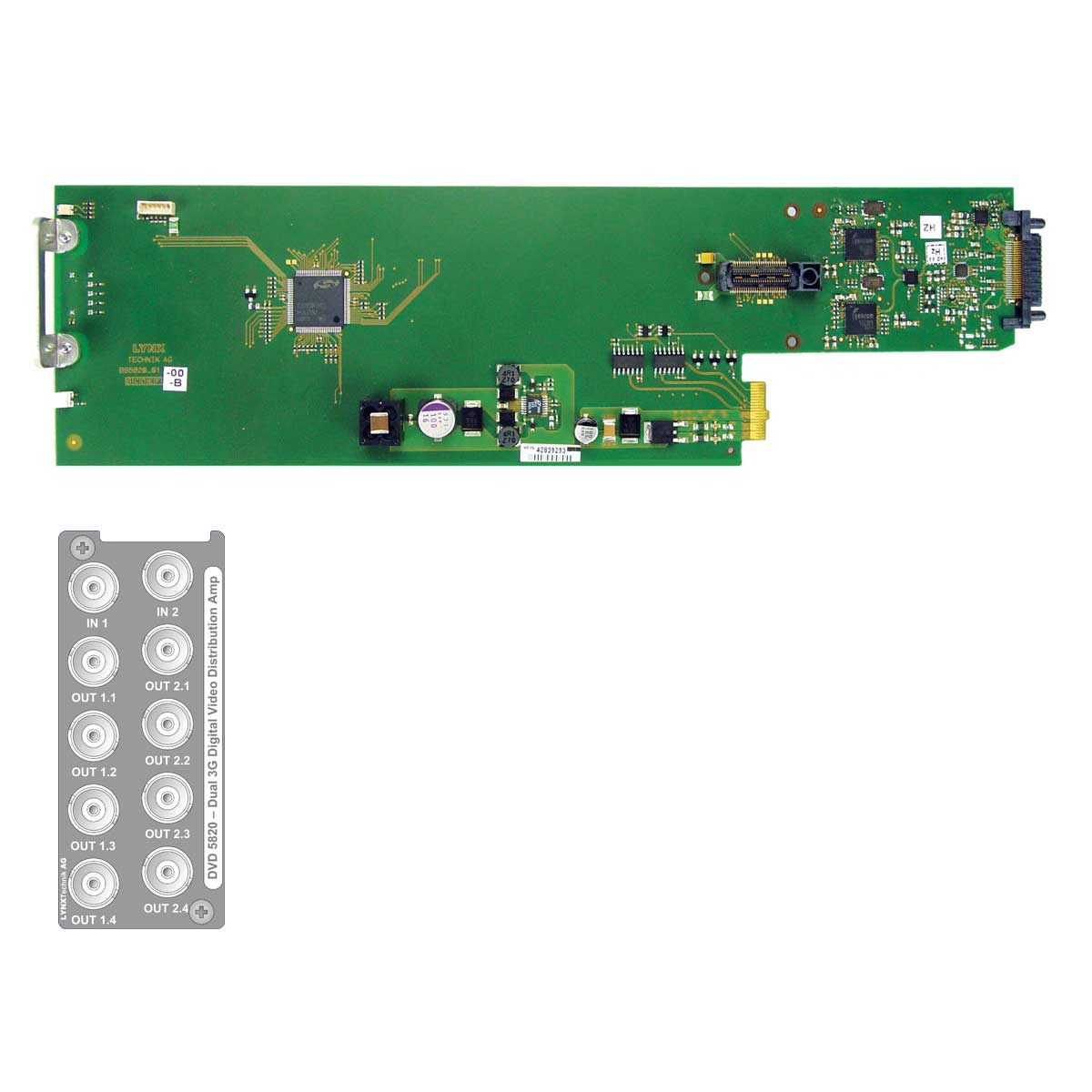

DVD 5820
3G-SDI Dual 1×4 or 1×8 Distribution Amplifier

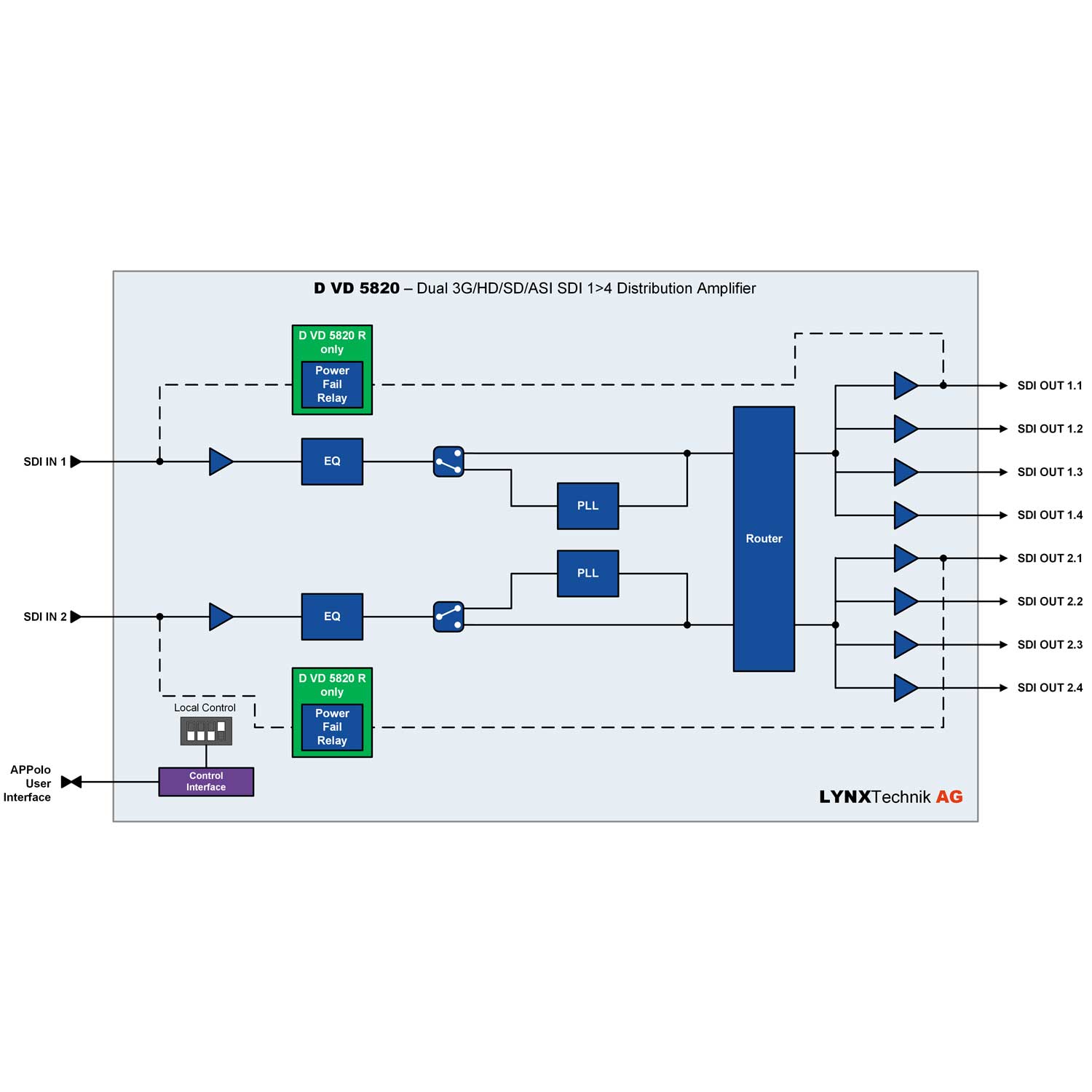

The DVD 5820 can be configured as a single channel 1>8 or dual channel 1>4 SDI distribution amplifier. Each channel can be set to reclocking or non-reclocking mode. This module is ideally suited for demanding digital multi-format broadcast and professional applications..
The module auto-detects the input video standard with support for all SDI video formats up to 3Gbit/s. In non re-clocked mode the module will transparently pass any data between 15Mbit/s and 3Gbit/s. Support for ASI/DVB and SMPTE 310 signals is also provided.
Local settings are provided via an integrated dip switch on the card edge. A version of the module is available (DVD 5820 R) with a integrated mechanical bypass relays which will connect each input to one of the outputs in each channel in the event of a power failure.
Remote control, status monitoring and error reporting is possible when using the LynxCentraal control system.
Key Features
- Supports all SDI video formats
- Supports ASI/DVB and SMPTE 310 streams
- Dual channel 1>4 or flexible 1>8 mapping
- Reclocking or non-reclocking mode (selectable)
- Auto-detect input video standard
- Transparently pass data between 15Mbit/s and 3Gbit/s in non re-clocked mode
- Input presence detection with LED indication
- Version available with power fail relay connecting input to output (DVD 5820 R)
- Remote control and status monitoring when used with the LynxCentraal control system
- Hot Swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479321663 | DVD 5820 | Dual 1>4 or 1>8 3G-SDI Distribution Amplifier |
| 4250479321670 | DVD 5820 R | Dual 1>4 or 1>8 3G-SDI Distribution Amplifier with Bypass Relays |
| Options | ||

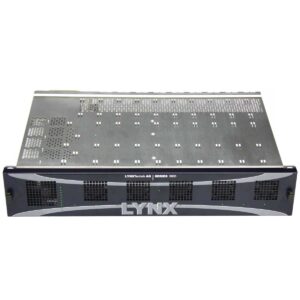

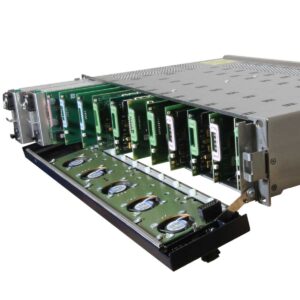

| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
Supported Video Formats
- 2K 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080PsF 23.98, 24, 25, 29.97, 30
- HD 1920x1080i 50, 59.94, 60
- HD 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- SD 720x625i 50
- SD 720x525i 59.94
- YCbCr 4:4:4 / 4:2:2 / 4:2:0
- 8, 10, 12-bit
Video Inputs
- Signal Type Serial Digital Video SMPTE 259M, 292M, 424M
- DVB-ASI and SMPTE 310
- Video Standard All formats (270Mbit/s through 2.97Gbit/s)
- Input level 0.8 v peak to peak
- Input Impedance 75 Ohms
- No. Of inputs 2
- Connector BNC
- Return loss
- > 15dB (1.485Gbit)
- > 10dB (2.97Gbit)
Video Outputs
- Signal Type Serial Digital Video SMPTE 259M, 292M, 424M
- DVB-ASI and SMPTE 310
- Video standard Follows input
- Output level 0.8 v peak to peak
- Output impedance 75 Ohm
- No. Of Outputs 8 (1×8 or dual 1×4)
- Connector BNC
- Return loss
- > 15dB (1.485Gbit)
- > 10dB (2.97Gbit)
- Jitter
- < 0.20 UI (270Mbit)
- < 1.0 UI – Timing Jitter – (1.485Gbit – 2.97Gbit)
- < 0.20 UI – Alignment Jitter – (1.485Gbit – 2.97Gbit)
Performance
- Cable equalization
- Up to 250M using Belden 8281 (270Mbit)
- Up to 140m using Belden 1694A (1.485Gbit)
- Up to 80m using Belden 1694A (2.97Gbit)
Electrical Specifications
- Operating Voltage 12 VDC
- Power Consumption < 4W
- Safety IEC 60950/ EN 60950/ VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g, connector plate 50g
Ambient
- Temperature 5°C to 40°C Maintaining specifications
- Humidity 90% Max non condensing
