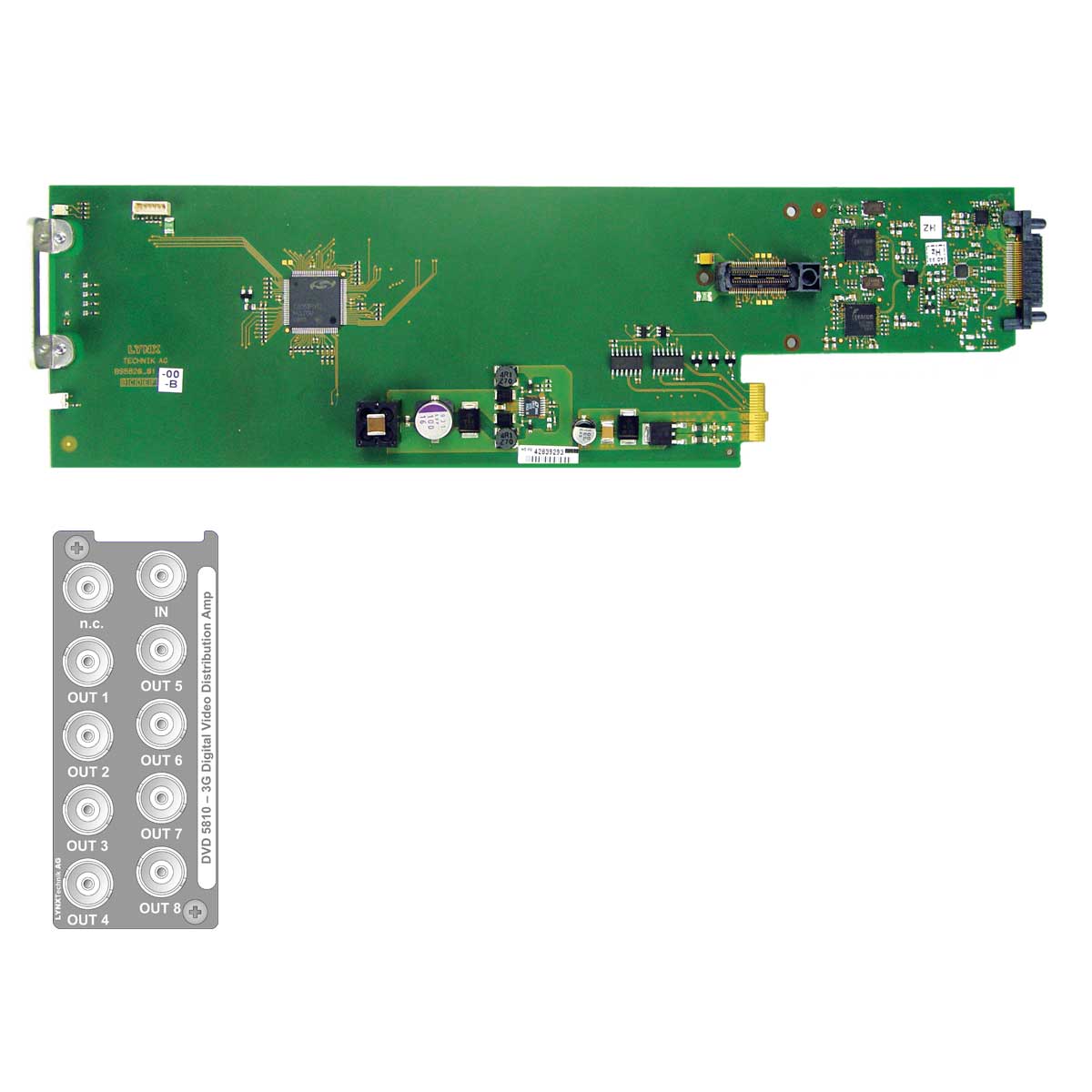

DVD 5810
3G-SDI 1 to 8 Distribution Amplifier

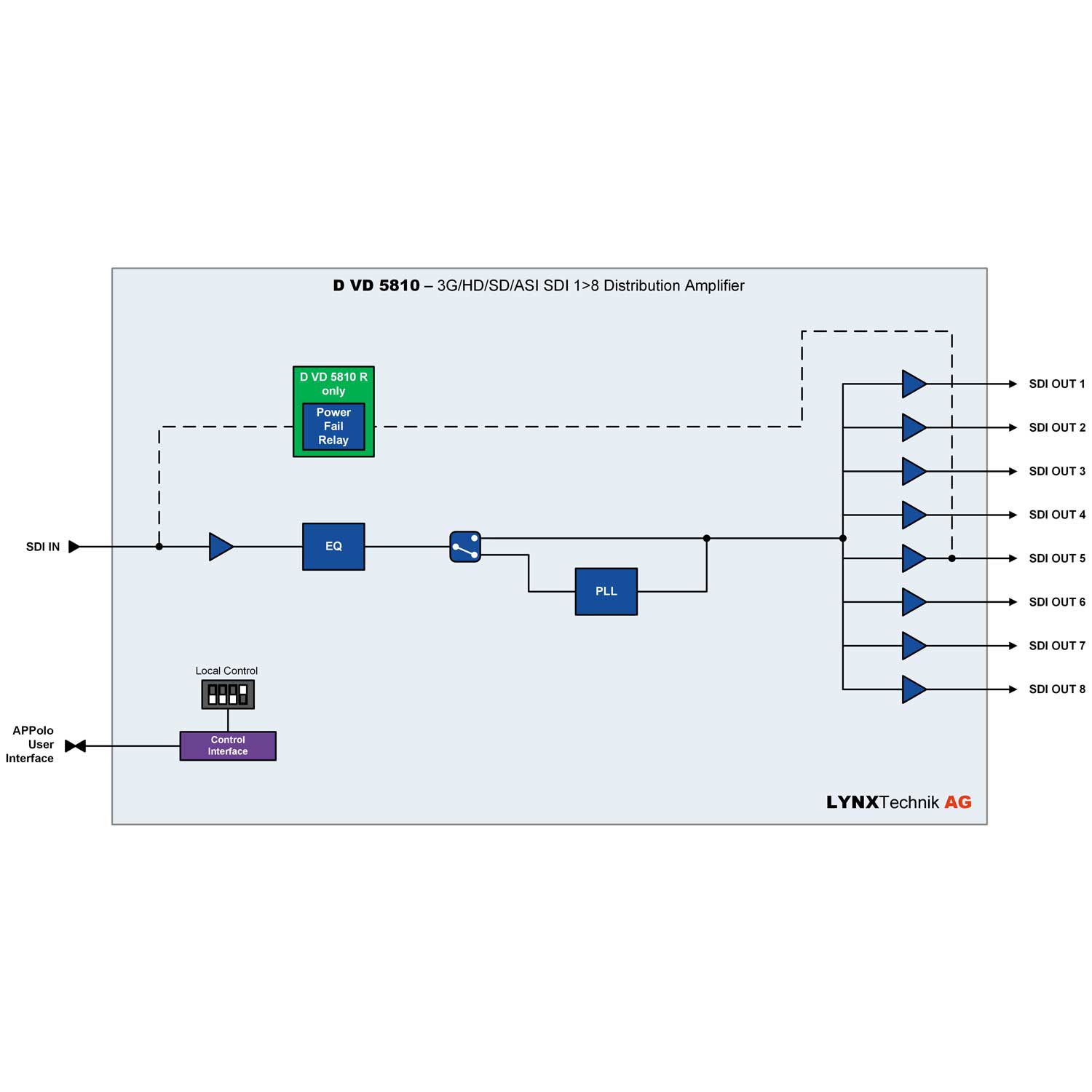

The DVD 5810 is a low cost fixed 1>8 utility distribution amplifier which can be used in a reclocking or non-reclocking mode. This module is ideally suited for demanding digital multi-format broadcast and professional applications.
The module auto-detects the input video standard with support for all SDI video formats up to 3Gbit/s. In non re-clocked mode the module will transparently pass any data between 15Mbit/s and 3Gbit/s. Support for ASI/DVB and SMPTE 310 signals is also provided.
Local settings are provided via an integrated dip switch on the card edge. A version of the module is available DVD 5810 R with a integrated mechanical bypass relay which will connect the input to one of the outputs in the event of a power failure.
Remote control, status monitoring and error reporting is possible when using the LynxCentraal control system.
Key Features
- Supports all SDI video formats
- Supports ASI/DVB and SMPTE 310 streams
- Fixed 1>8 configuration
- Reclocking or non-reclocking mode (selectable)
- Auto-detect input video standard
- Transparently pass data between 15Mbit/s and 3Gbit/s in non re-clocked mode
- Version available with power fail relay connecting input to output (DVD 5810 R)
- Input presence detection with LED indication
- Remote control and status monitoring when used with the LynxCentraal control system
- Hot Swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479321649 | DVD 5810 | 1>8 3G SDI Distribution Amplifier |
| 4250479321656 | DVD 5810 R | 1>8 3G SDI Distribution Amplifier with Bypass Relay |
| Options | ||
| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
Supported Video Formats
- 2K 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080PsF 23.98, 24, 25, 29.97, 30
- HD 1920x1080i 50, 59.94, 60
- HD 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- SD 720x625i 50
- SD 720x525i 59.94
- YCbCr 4:4:4 / 4:2:2 / 4:2:0
- 8, 10, 12-bit
Video Inputs
- Signal Type Serial Digital Video SMPTE 259M, 292M, 424M
- DVB-ASI and SMPTE 310
- Video Standard All formats (270Mbit/s through 2.97Gbit/s)
- Input level 0.8 v peak to peak
- Input Impedance 75 Ohms
- No. Of inputs 1
- Connector BNC
- Return loss
- > 15dB (1.485Gbit)
- > 10dB (2.97Gbit)
Video Outputs
- Signal Type Serial Digital Video SMPTE 259M, 292M, 424M
- DVB-ASI and SMPTE 310
- Video standard Follows input
- Output level 0.8 v peak to peak
- Output impedance 75 Ohm
- No. Of Outputs 8
- Connector BNC
- Return loss
- > 15dB (1.485Gbit)
- > 10dB (2.97Gbit)
- Jitter
- < 0.20 UI (270Mbit)
- < 1.0 UI – Timing Jitter – (1.485Gbit – 2.97Gbit)
- < 0.20 UI – Alignment Jitter – (1.485Gbit – 2.97Gbit)
Performance
- Cable equalization
- Up to 250M using Belden 8281 (270Mbit)
- Up to 140m using Belden 1694A (1.485Gbit)
- Up to 80m using Belden 1694A (2.97Gbit)
Electrical Specifications
- Operating Voltage 12 VDC
- Power Consumption < 4W
- Safety IEC 60950/ EN 60950/ VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g, connector plate 50g
Ambient
- Temperature 5°C to 40°C Maintaining specifications
- Humidity 90% Max non condensing
