DVD 5480 H
12G-SDI 1×10 or 2×5 Distribution Amplifier

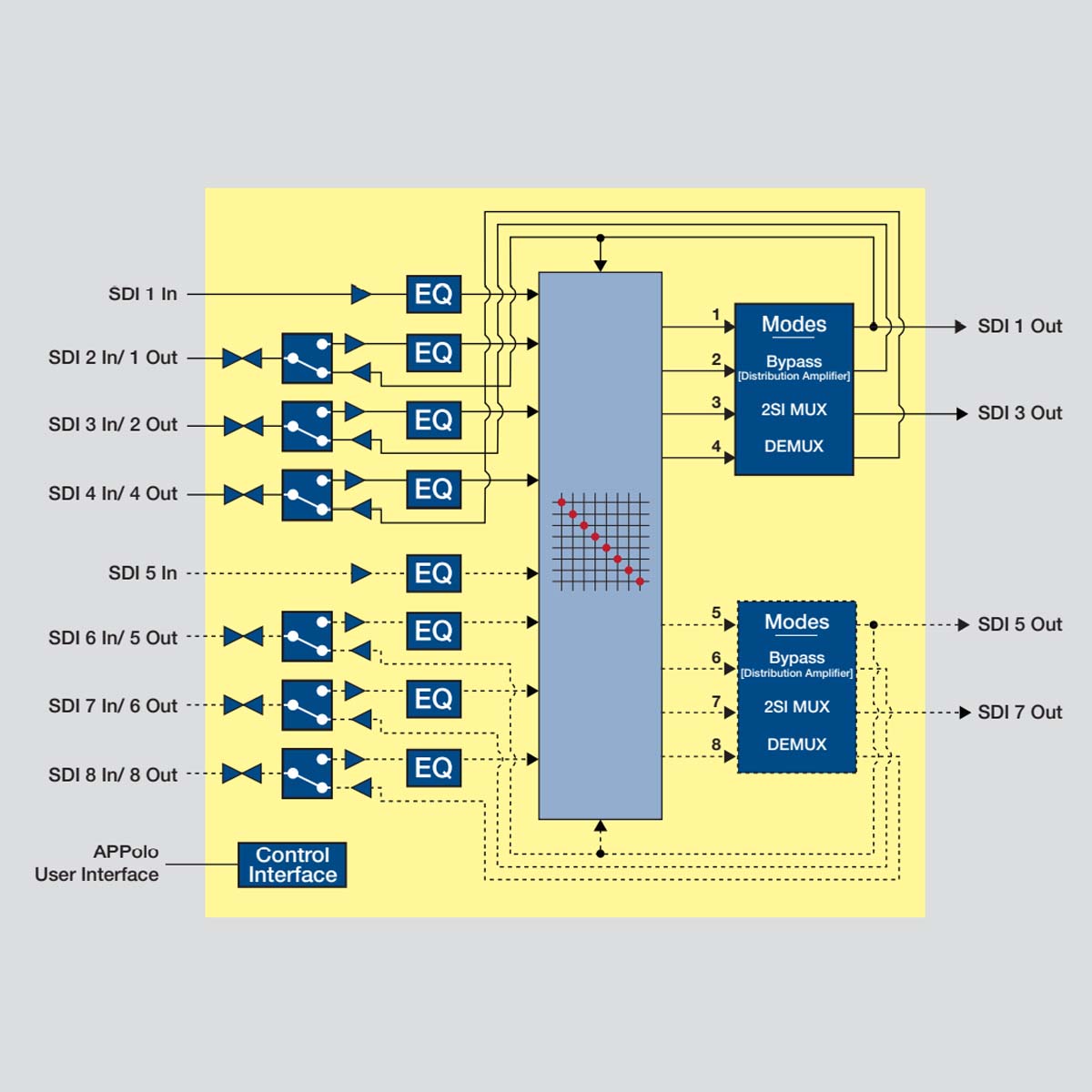

The DVD 5480 H module is a high-performance state of the art, 12G SDI distribution amplifier with dual 12G Single Link <> Quad Link (2SI) conversion on electrical interfaces. This module can be used in various applications depending on user settings:

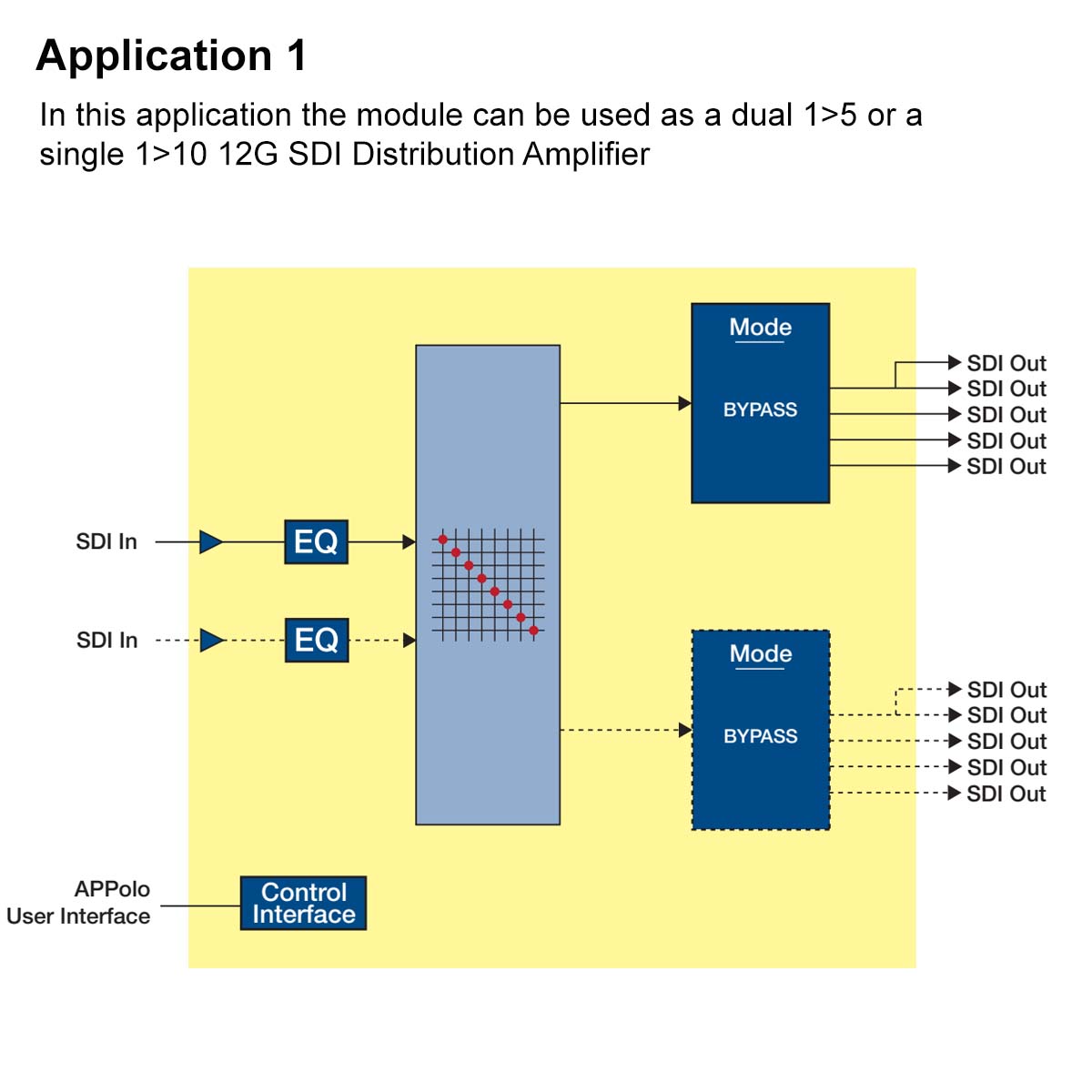

1. Dual 12G SDI (1 to 5) distribution amplifier or single 12G SDI (1 to 10) distribution amplifier
2. Dual 12G SDI Single Link to Quad Link (2SI) converter (Demux)

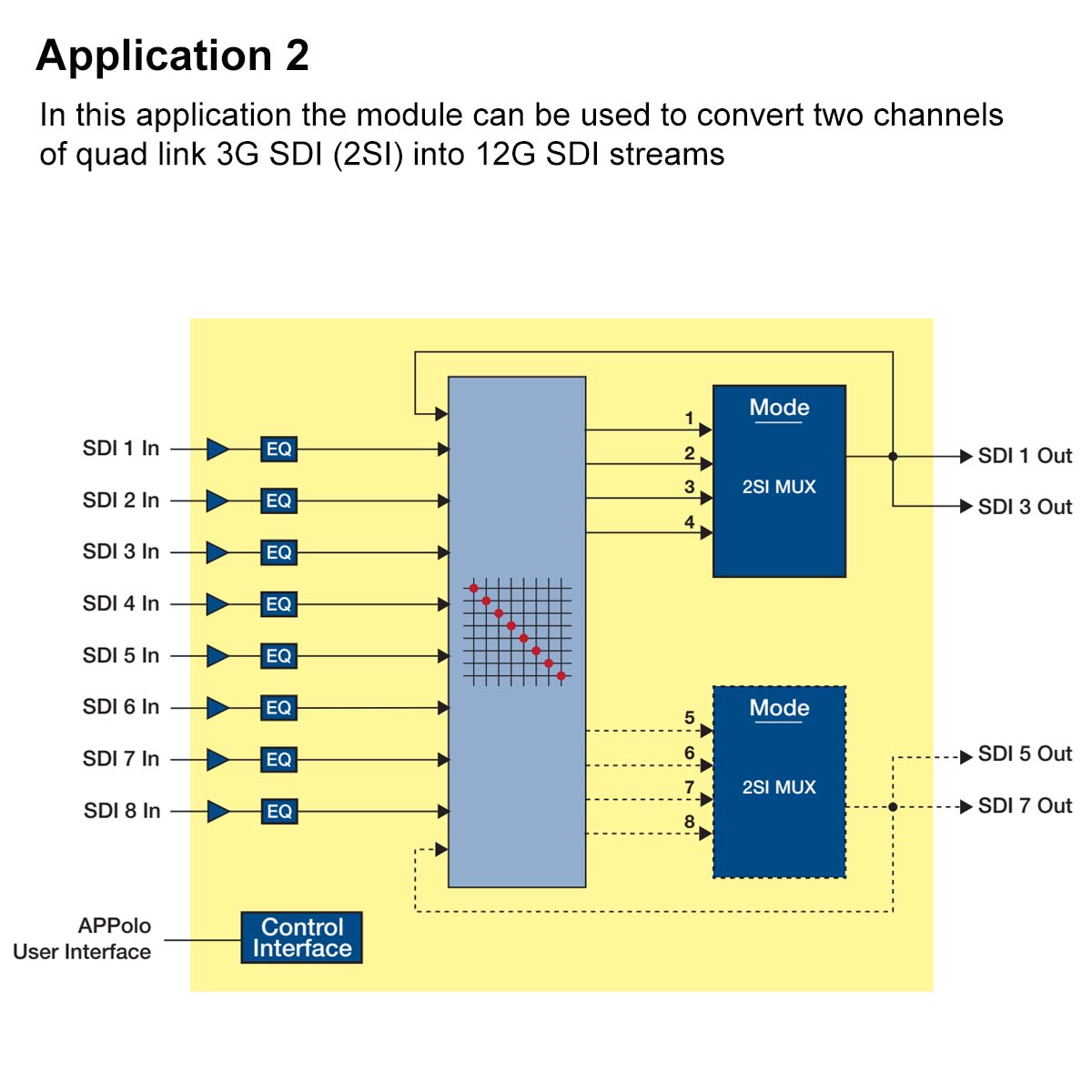

3. Dual Quad Link 3G SDI (2SI) to 12G SDI Single Link Converter (Mux)

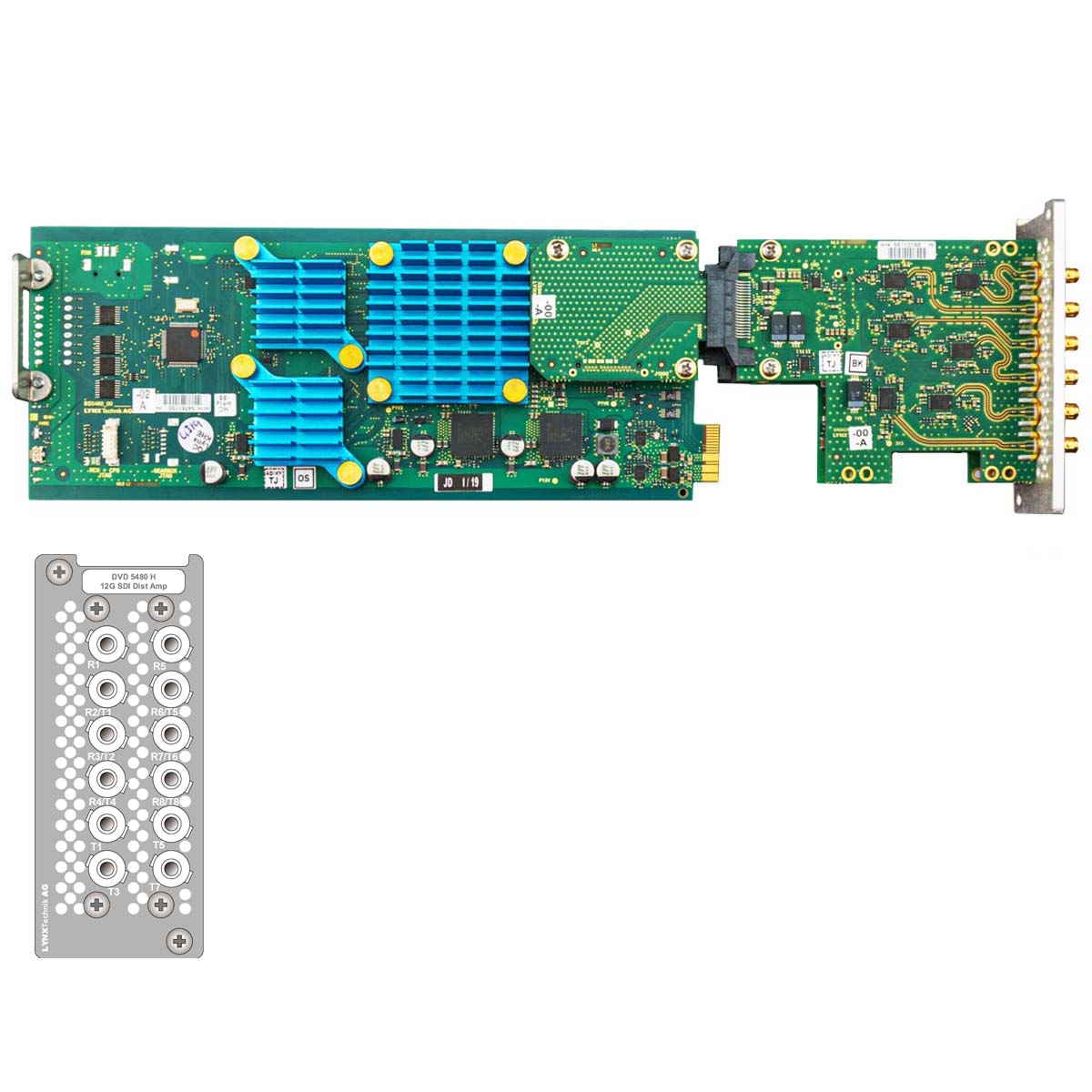

DVD 5480 H is ideally suited for demanding high quality broadcast and professional video applications. Along with six bi-directional 12G SDI high density microBNC electrical interfaces, the module also provides two dedicated input andfour dedicated output electrical interfaces on microBNCs as well.
Designed for the use in SERIES 5000, DVD 5480 H is part of CardModules, which offers high quality, modularity and flexibility in a small form factor ideal for applications where space is at a premium. Like other 5000 series CardModules, this module is fully integrated into LynxCentraal Control system which provides remote control, status monitoring and error reporting for the module
Key Features
- Supports six bidirectional electrical inputs/outputs with additional two input and four output electrical interfaces.
- Several applications:
- Dual 12G SDI single link input signal can be demultiplexed to quad link (2SI) independently
- Dual Quad link 3G SDI (2SI) signals can be multiplexed to 12G SDI Single link independently
- One 12G SDI signal can be distributed to ten electrical outputs
- Supports user selectable mixture of operation via LynxCentraal User interface
- Incoming and outgoing 12G SDI signals are reclocked.
- Input presence detection with LED indication
- Microprocessor controlled with internal flash RAM for storing configuration
- Remote control, status monitoring and error reporting when used with LynxCentraal Control System
- Hot swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479326590 | DVD 5480H | Dual Channel 12G SDI Distribution Amp |
| Options | ||
| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
Supported Video Formats
- 4K 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- UHD 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 2K 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080i 50, 59.94, 60
Video Input
- Signal type SMPTE 292M, 424M, 2082-1
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2
- 8, 10, 12-bit
- Input Impedance 75 ohms
- of inputs 6 x bi-directional 12G-SDI BNC, 2x 12G-SDI BNC
- Connector microBNC
- Return Loss >4dB up to 12 Gbit/s
- Cable Equalization
- 190m @ 1.5 GBps,
- 130m @ 3 Gbps,
- 55m @12 Gbps
Video Output
- Signal Type SMPTE 292M, 424M, 2082-1
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2
- 8, 10, 12-bit
- of outputs 6 x bi-directional 12G-SDI BNC, 4x 12G-SDI BNC
- Connector microBNC
- Return Loss >4dB up to 12 Gbit/s
Performance
- 2SI Demux Two Converters for 12G SDI Single Link to Quad Link (2SI) Conversion or
- Quad Link (2SI) to 12G SDI Single Link can be activated
Electrical Specifications
- Operating voltage +12 VDC
- Power consumption 19W
- Safety IEC 60950/ EN 60950/VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g, connector plate 100g
Ambient
- Temperature 5°C to 40°C (41°F – 104°F) maintaining specifications
- Humidity 90% maximum, non-condensing
