DVD 5480 TO
12G SDI Dual Fiber Distribution Amplifier

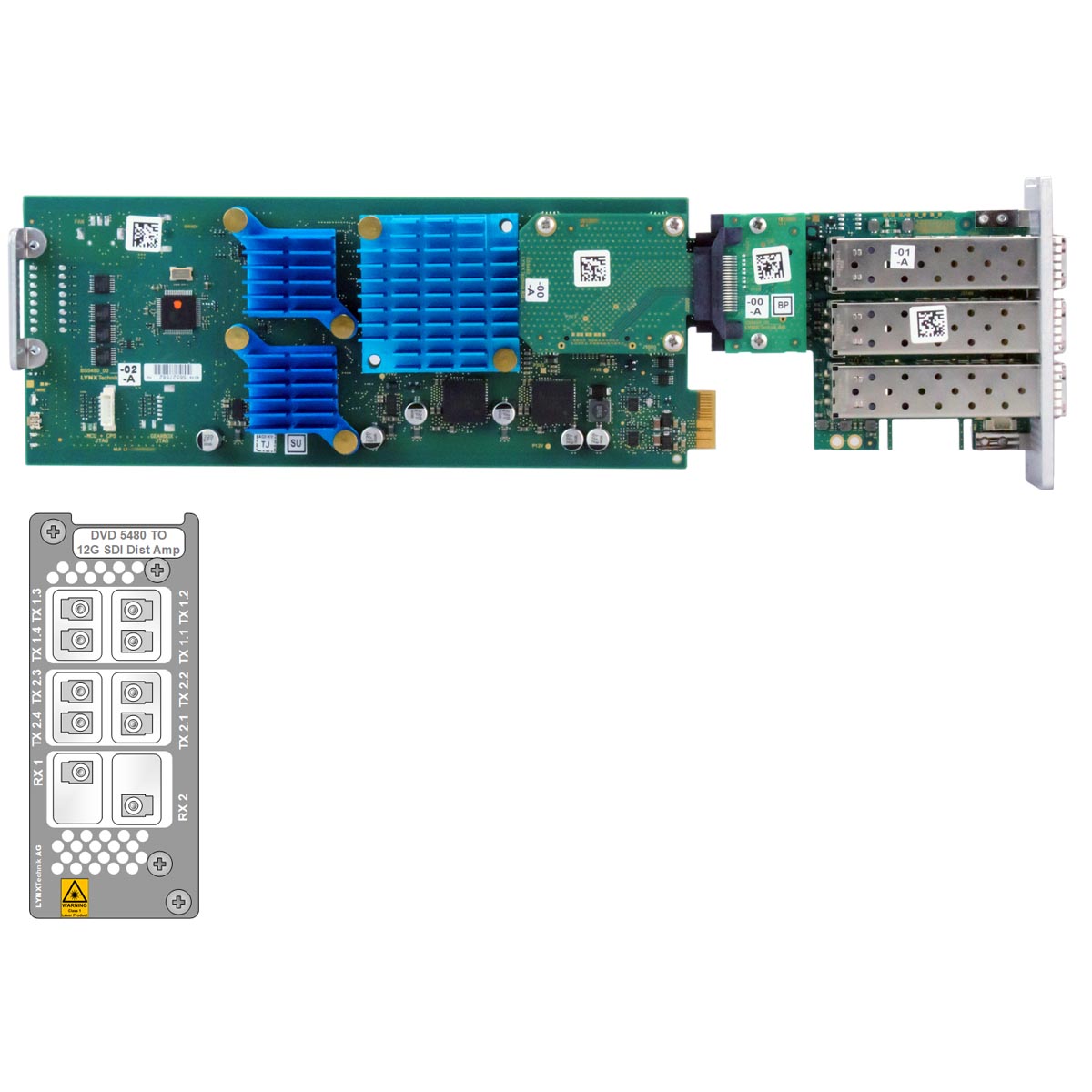

The DVD 5480 TO module is a high performance dual channel 12Gbit/s SDI distribution amplifier with optical interfaces and Single Link to Quad Link (2SI) conversion.
This module can be used as a single 1>8 or a dual channel 1>4 device. DVD 5480 TO is ideally suited for demanding high quality broadcast and professional video applications.

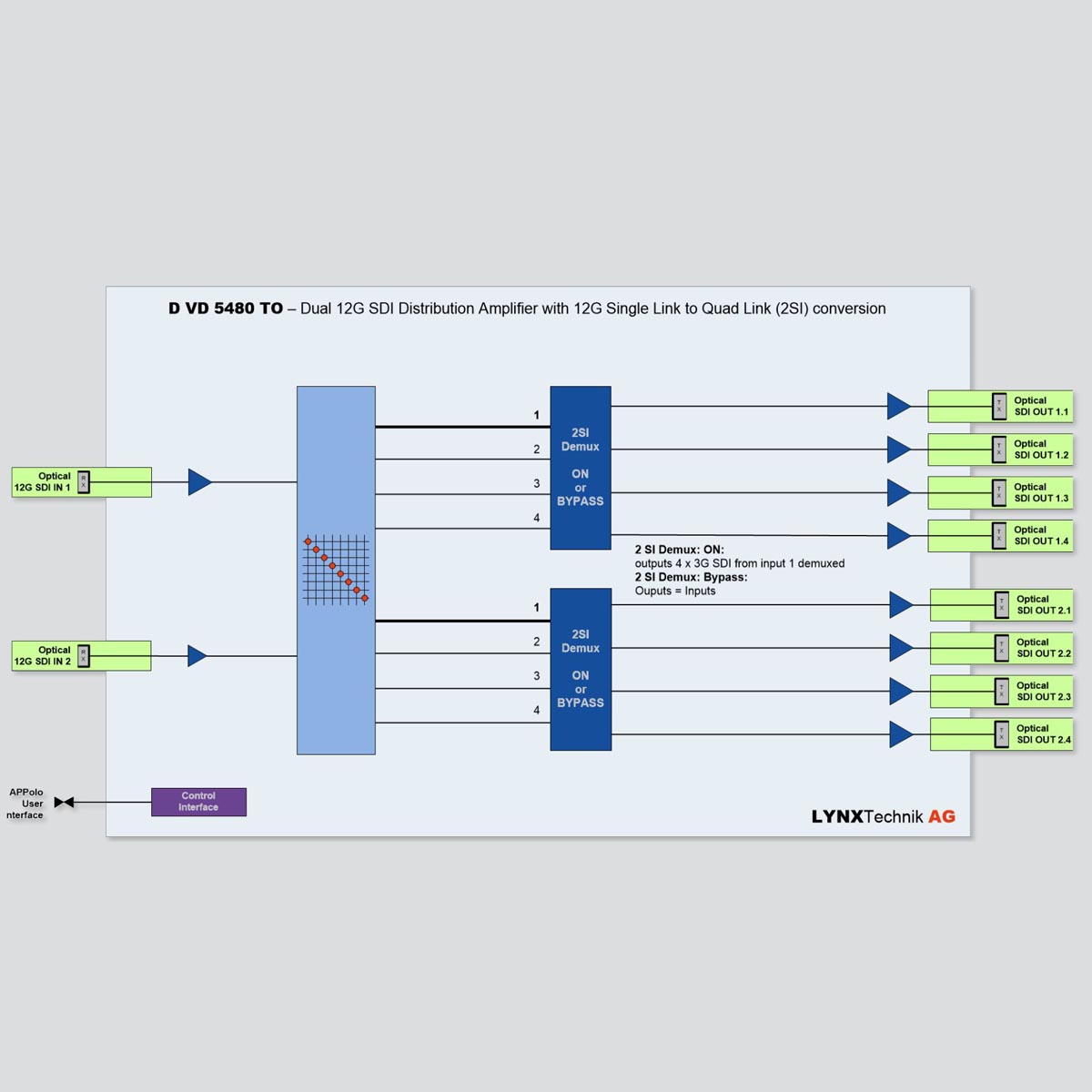

In DVD 5480 TO module, the two fiber input ports provided can be switched by the user individually to the internal channels. Each internal channel has a switchable single Link to quad Link (2SI) converter, which can be set to bypass. In bypass mode, the module acts as an optical distribution amplifier.
In “demux” mode, the module will act as a demultiplexer in which the 12G SDI signal on input ports will be demultiplexed into 2SI quad link signal. The DVD 5480 TO module is part of the 5000 series of CardModules, which offers high quality, modularity and flexibility in a small form factor ideal for applications where space is at a premium. Like other 5000 series CardModules, this module is fully integrated into the LynxCentraal Control system which provides remote control, status monitoring and error reporting for the module.
No more pages to load
Key Features
- Supports 12Gbit/s on Optical inputs and outputs
- Auto-detect input video standard
- Dual Channel (2×1>4) or Single Channel (1>8) distribution amplifier
- 12G SDI input signals can be demultiplexed to quad link (2SI, 4x3G SDI)
- Input presence detection with LED indication
- Microprocessor controlled with internal flash ram for storing configuration
- Remote control, status monitoring and error reporting when used with the LynxCentraal control system
- Hot Swappable
Note. Fiber SFPs are NOT Included, please select from options table
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479326613 | DVD 5480 TO | Dual Channel 12G SDI Fiber Distribution Amp |
| Options | ||
| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
| Fiber Options | ||
| 4250479326330 | OH-TT-12G-LC | Dual Channel 12G SDI Transmitter |
| 4250479325043 | OH-RX-12-LC | 12G SDI Fiber Receiver (LC) |
| 4250479327511 | OH-RX-12-ST | 12G SDI Fiber Receiver (ST) |
Supported Video Formats
- 4K 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- UHD 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 2K 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080i 50, 59.94, 60
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2
- 8, 10, 12-bit
Video Input
- Signal type SMPTE 297M-2006
- SMPTE 292M, 424M, 259M, 2082-1
- Supported formats SDI formats up to 12Gbit/s
- No.of inputs 2 x Single Receiver (OH-RX-12G-LC)
- Connector LC/PC (single mode)
- Wavelength 1260nm – 1620nm (-14dBm sensitivity)
Video Outputs
- Signal Type SMPTE 297M-2006
- SMPTE 292M, 424M, 259M, 2082-1
- No. of outputs 8 –> 4 x Dual Transmitter (OH-TT-12G-LC)
- Output format Follows input format
- Connector LC/PC (single mode transmit/receive – duplex connection)
- Wavelength Standard: 1310nm (non-CWDM)
- Transmission power Standard: 1310nm (non-CWDM): -5dBm typ.
Performance
- 2SI Demux Two Converters for Single Link to Quad Link (2SI) Conversion can be activated
Electrical Specifications
- Operating voltage 12 VDC
- Power consumption 17W including optional Fiber SFPs
- Safety IEC 60950/ EN 60950/VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g, connector plate 100g
Ambient*
- Temperature 5°C to 40°C (41°F – 104°F) maintaining specifications
- Humidity 90% maximum, non-condensing
