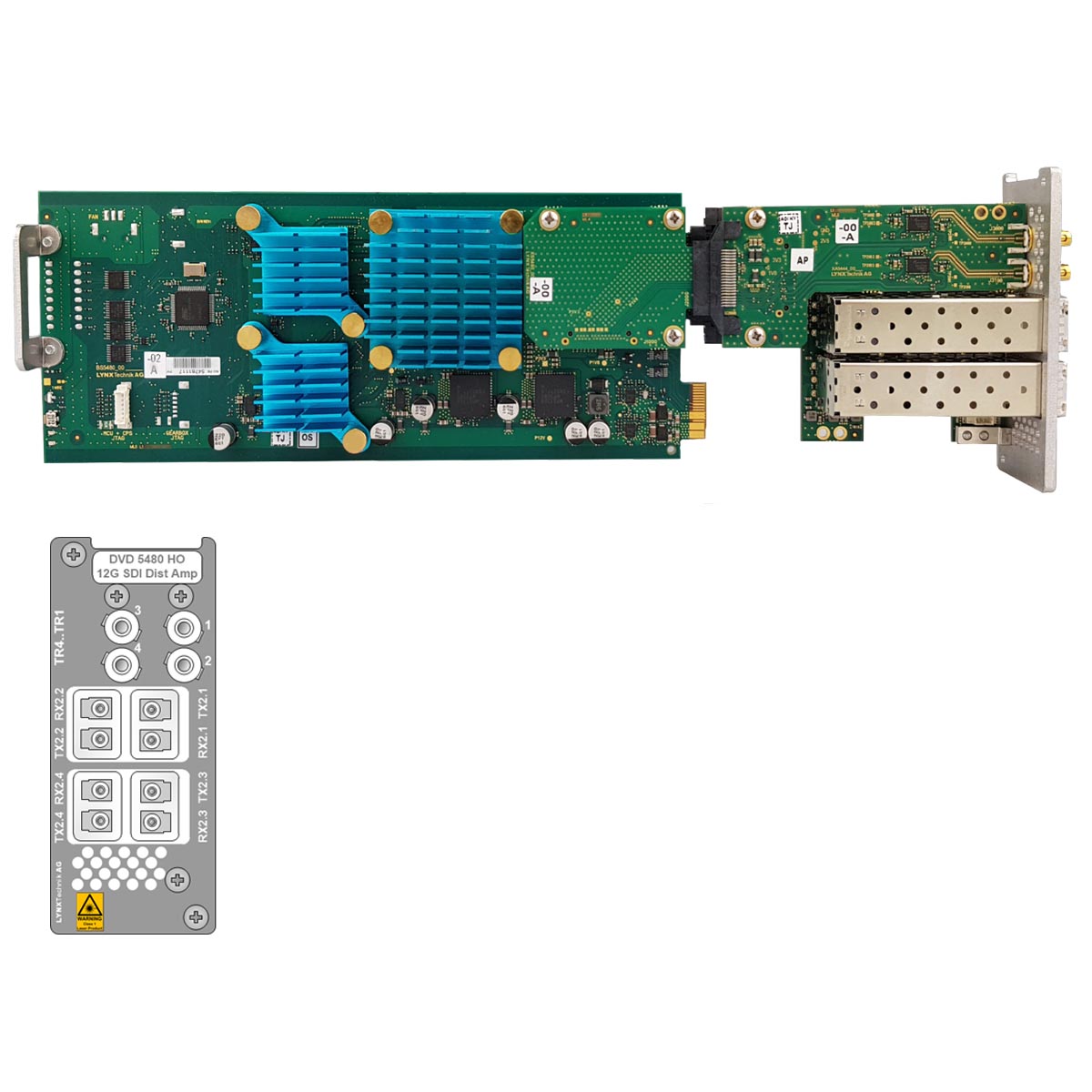

DVD 5480 HO
12G-SDI Distribution Amplifier with Fiber I/O

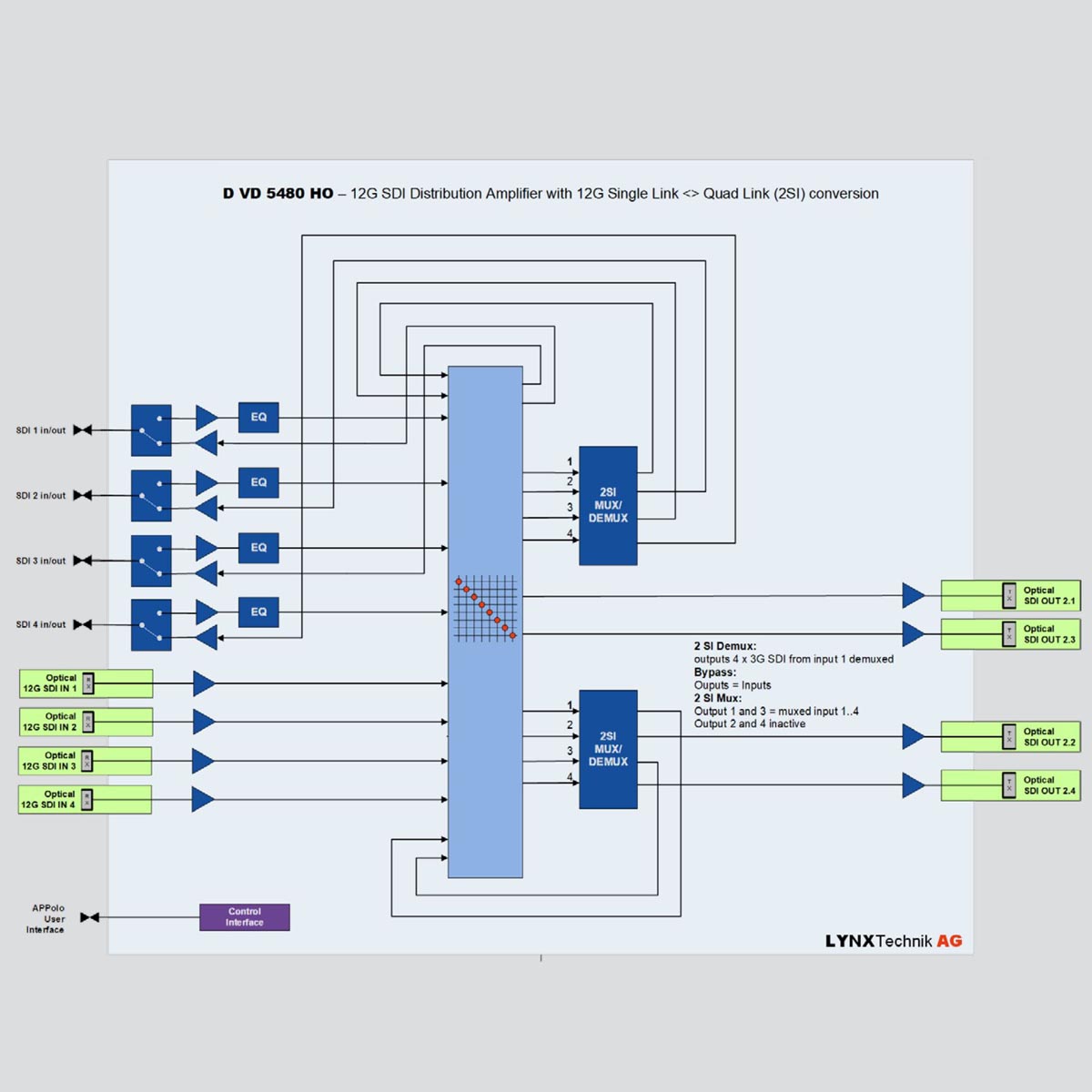

The DVD 5480 HO module is a high performance 12G SDI distribution amplifier with 12G Single Link <> Quad Link (2SI) conversion on optical and electrical interfaces. This module can be used in various applications depending on user settings:
- 12G SDI Distribution amplifier
- 12G SDI Single Link to Quad Link (2SI) converter (Demux)
- Quad Link (2SI) to 12G SDI Single Link Converter (Mux)

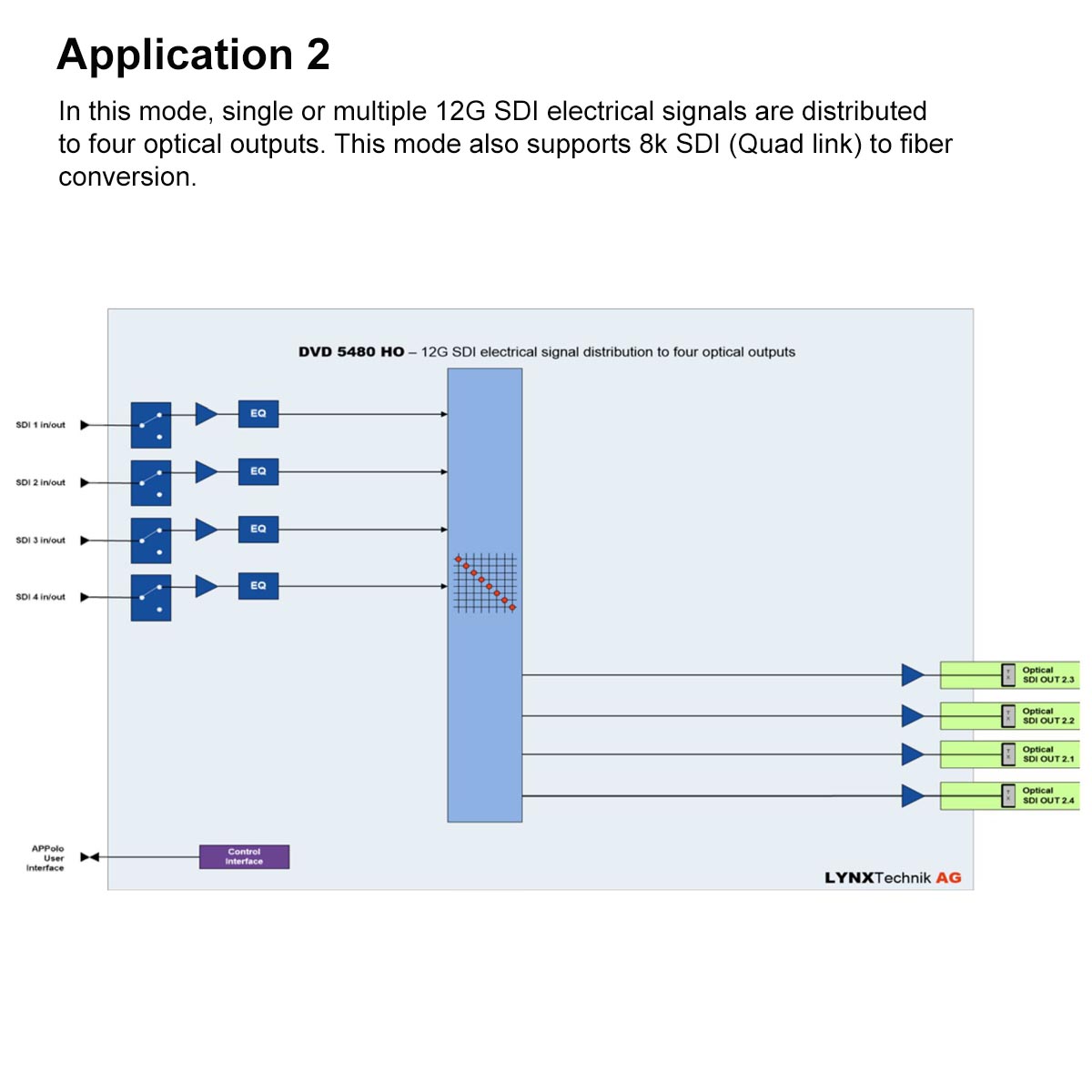

- 8K SDI <> Fiber converter
DVD 5840 HO is ideally suited for demanding high quality broadcast and professional video applications. The module provides four 12G SDI optical inputs and four 12G SDI optical outputs in four pairs of optical TR slots (Transmitter/Receiver, SFPs optional). In addition, four bi-directional electrical inputs/outputs (signal flow direction can be set by the user) on High Density MicroBNCs are available for optical<>electrical conversion.
DVD 5480 HO is part of the 5000 series of CardModules, which offers high quality, modularity and flexibility in a small form factor ideal for applications where space is at a premium. Like other 5000 series CardModules, this module is fully integrated into LynxCentraal Control system which provides remote control, status monitoring and error reporting for the module
No more pages to load
Key Features
- Supports four 12Gbit/s SDI Optical inputs and outputs each.
- Provides four bidirectional, electrical inputs/outputs on the high density MicroBNCs
- Different operation modes:
- 12G SDI single Link Input signal can be demultiplexed to quad link (2SI; 4x3G SDI)
- Quad Link (2SI) signal can be multiplexed to 12G SDI Single Link

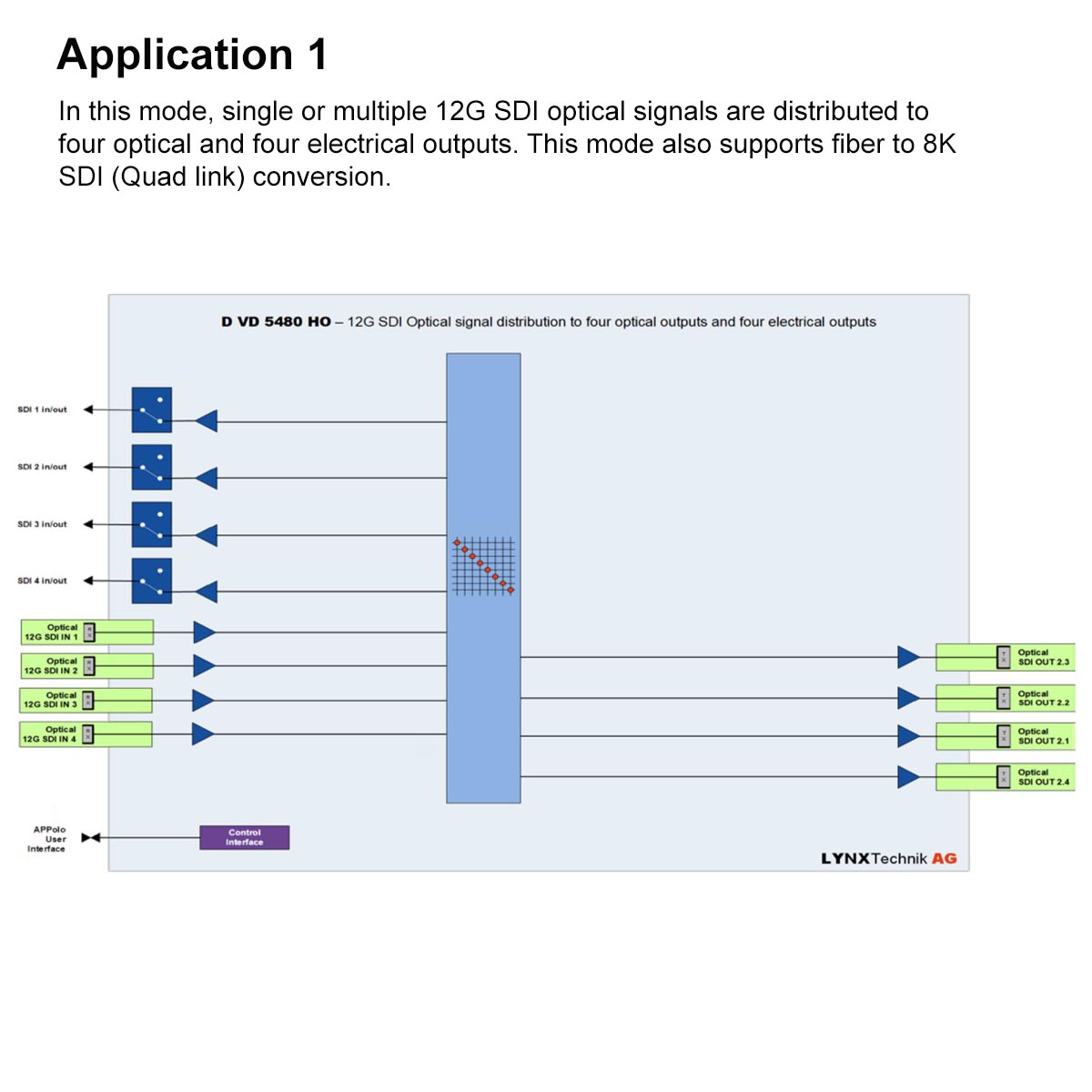

- 12G SDI optical signal can be distributed to four optical outputs and four electrical outputs
- Mixtures between the different operation modes
- Input presence detection with LED indication
- Microprocessor controlled with internal flash RAM for storing configuration
- Remote control, status monitoring and error reporting when used with LynxCentraal Control system
- Hot swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479326606 | DVD 5480 HO | 12G SDI Distribution Amplifier |
| Options | ||
| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
| Fiber Option | ||
| 4250479325029 | OH-TR-12 | SDI TR Fiber SFP |
| CWDM Fiber Options | ||
| 4250479326552 | OH-TR-12-1270 | SDI TR Fiber SFP (CWDM) 1270nm |
| 4250479326569 | OH-TR-12-1290 | SDI TR Fiber SFP (CWDM) 1290nm |
| 4250479326576 | OH-TR-12-1310 | SDI TR Fiber SFP (CWDM) 1310nm |
| 4250479326583 | OH-TR-12-1330 | SDI TR Fiber SFP (CWDM) 1330nm |
| 4250479326682 | OH-TR-12-1350 | SDI TR Fiber SFP (CWDM) 1350nm |
| 4250479326699 | OH-TR-12-1370 | SDI TR Fiber SFP (CWDM) 1370nm |
| 4250479326705 | OH-TR-12-1390 | SDI TR Fiber SFP (CWDM) 1390nm |
| 4250479326712 | OH-TR-12-1410 | SDI TR Fiber SFP (CWDM) 1410nm |
| 4250479326729 | OH-TR-12-1430 | SDI TR Fiber SFP (CWDM) 1430nm |
| 4250479326736 | OH-TR-12-1450 | SDI TR Fiber SFP (CWDM) 1450nm |
| 4250479326743 | OH-TR-12-1470 | SDI TR Fiber SFP (CWDM) 1470nm |
| 4250479326750 | OH-TR-12-1490 | SDI TR Fiber SFP (CWDM) 1490nm |
| 4250479326767 | OH-TR-12-1510 | SDI TR Fiber SFP (CWDM) 1510nm |
| 4250479326774 | OH-TR-12-1530 | SDI TR Fiber SFP (CWDM) 1530nm |
| 4250479326781 | OH-TR-12-1550 | SDI TR Fiber SFP (CWDM) 1550nm |
| 4250479326798 | OH-TR-12-1570 | SDI TR Fiber SFP (CWDM) 1570nm |
| 4250479326804 | OH-TR-12-1590 | SDI TR Fiber SFP (CWDM) 1590nm |
Supported Video Formats
- 4K 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- UHD 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 2K 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080i 50, 59.94, 60
- RGB 4:4:4
- YCbCr 4:4:4/4:2:2
- 8, 10, 12-bit
Video Input (Fiber) – Optional
- Signal type SMPTE 297M-2006
- SMPTE 292M, 424M, 2082-1
- Supported formats SDI formats up to 12Gbit/s* (see table)
- No. of inputs 4 x Receiver (OH-TR-12G-LC or OH-RX-12G-LC)
- Connector LC/PC (single mode)
- Wavelength 1260nm – 1620nm (-14dBm sensitivity)
Video Input (microBNC)
- Signal Type SMPTE 292M, 424M, 2082-1
- No. of inputs 4 x bi-directional microBNC port
- Return Loss >4dB upto 12 Gbit/s
Video Outputs (Fiber) – Optional
- Signal Type SMPTE 297M-2006
- SMPTE 292M, 424M, 259M, 2082-1
- No. f outputs 4 x Transmitter (OH-TR-12G-LC or OH-TX-12G-LC)
- Connector LC/PC (single mode transmit/receive – duplex connection)
- Wavelength Standard: 1310nm (non-CWDM)
- Transmission power Standard: 1310nm (non-CWDM): -5dBm typ.
Video Outputs (MicroBNC)
- Signal Type SMPTE 292M, 424M, 2082-1
- No. of outputs 4 x bi-directional microBNC port
- Connector LC/PC (single mode transmit/receive – duplex connection)
- Return Loss >4dB upto 12 Gbit/s
Performance
- 2SI Demux Two Converters for 12G SDI Single Link to Quad Link (2SI) Conversion or
- Quad Link (2SI) to 12G SDI Single Link can be activated
Electrical Specifications
- Operating voltage +12 VDC
- Power consumption 18W including optional Fiber SFPs
- Safety IEC 60950/ EN 60950/VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g, connector plate 100g
Ambient
- Temperature 5°C to 40°C (41°F – 104°F) maintaining specifications
- Humidity 90% maximum, non-condensing
