DVD 5410
12G-SDI 1 to 8 Distribution Amplifier

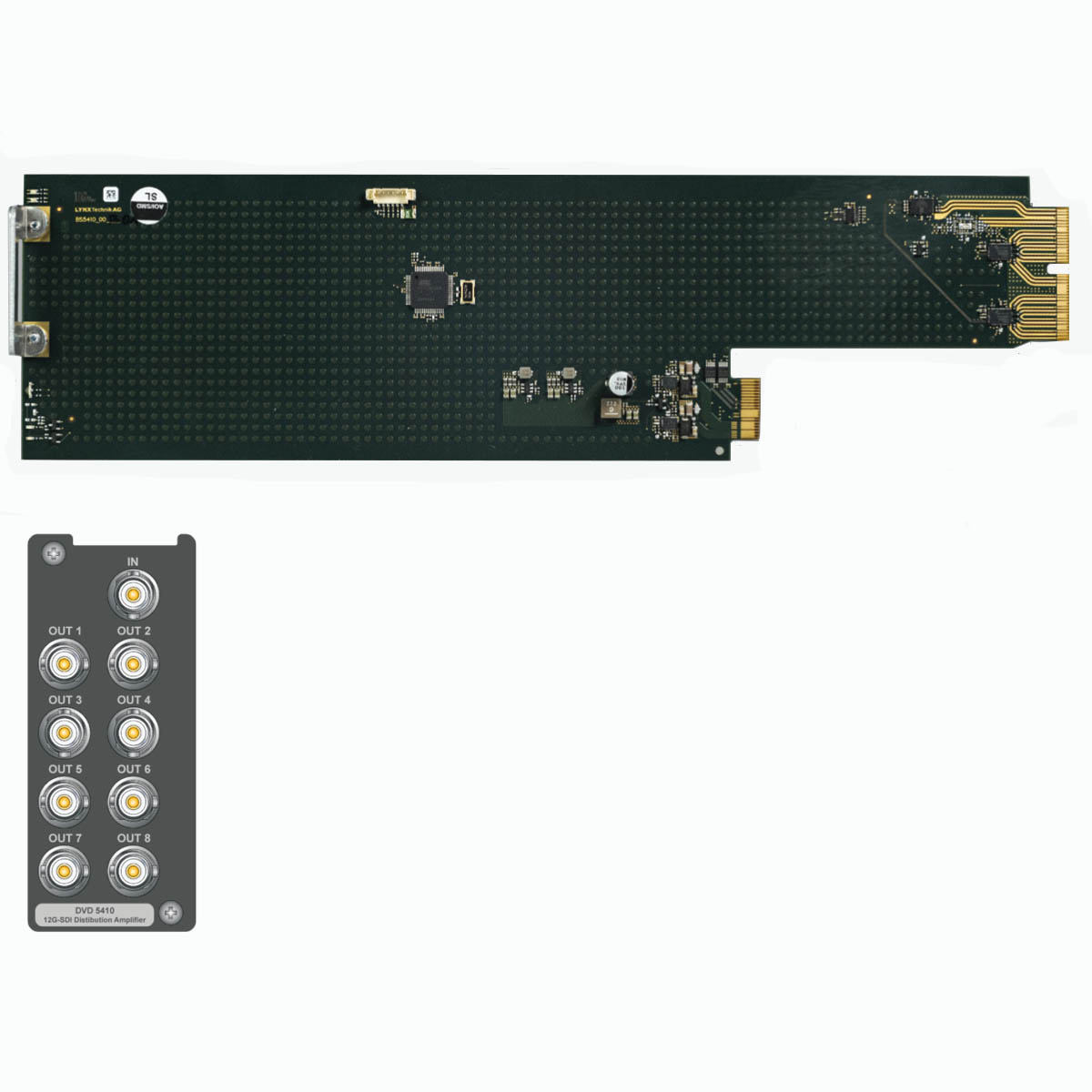

The DVD 5410 is a low cost fixed 1×8 utility distribution amplifier.
The module auto-detects the input video standard with support for video formats up to 12G-SDI. The module always reclocks to its SDI input.
This module is ideally suited for demanding digital multi-format broadcast and professional applications.
The card module is fully compatible with LynxCentraal. It can be controlled and updated using Windows or MacOS.
Key Features
- Supports 12G/6G/3G/1.5G/SD-SDI and ASI/DVB Formats
- 1×8 Distribution Mode
- Always Reclocking to SDI Input
- Auto-detect input video standard
- Input Status LED
- Status monitoring and error reporting when used with LYNX control system
- Full SNMP support when used with RCT 5023 controller
- Hot Swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479329607 | DVD 5410 | 1>8 12G SDI Distribution Amplifier |
| Options | ||

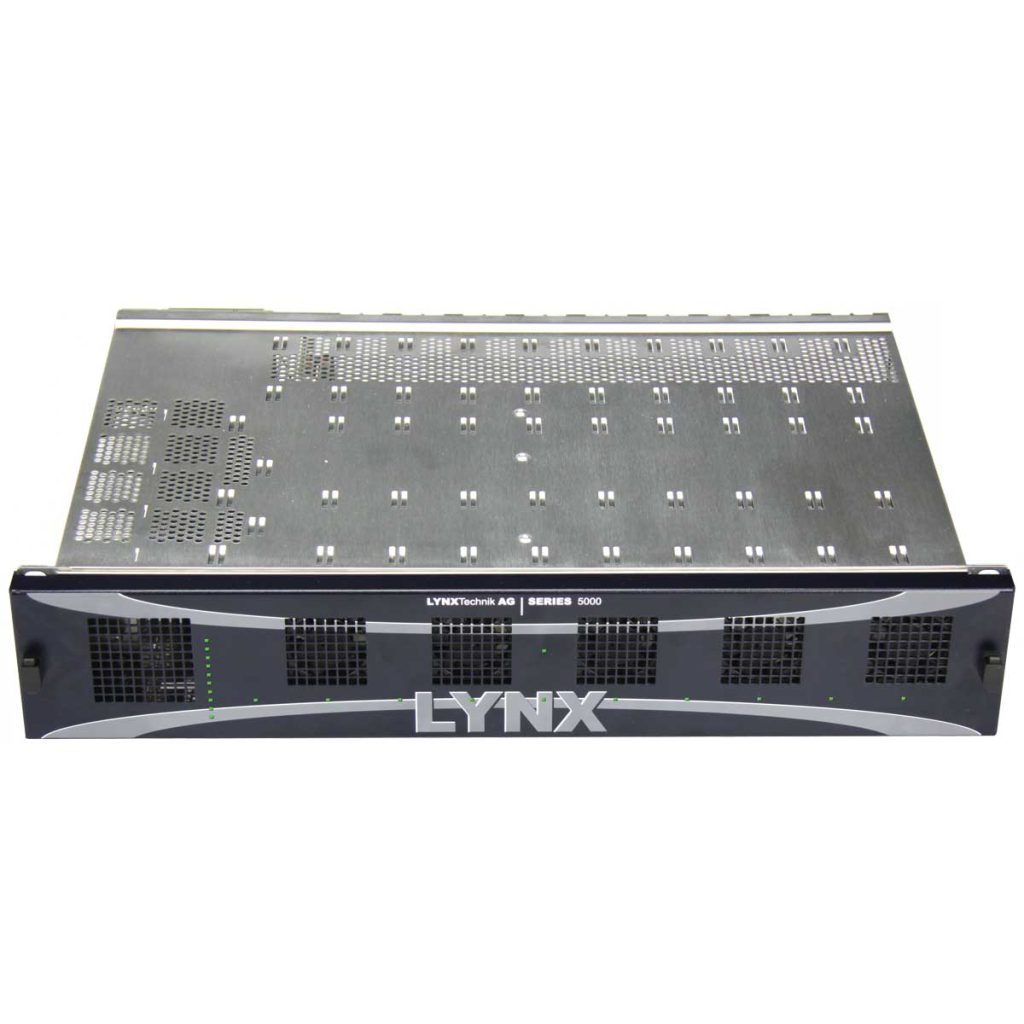

| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
Video Inputs
- Signal Type SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081-1, SMPTE 2082-1
- Video Standard All formats up to 4K DCI 60fps
- Input level 0.8V peak to peak
- Input Impedance 75 Ohms
- Of inputs 1
- Connector BNC
- Return loss
- > 15dB (1.485Gbit/s)
- > 10dB (2.97Gbit/s)
- > 4dB (11.88Gbit/s)
- > 4dB (11.88Gbit/s)
Video Outputs
- Signal Type SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081-1, SMPTE 2082-1
- Video standard Follows input
- Output level 0.8V peak to peak
- Output impedance 75 Ohm
- Of Outputs 8
- Connector BNC
- Return loss > 15dB (1.485Gbit)
- > 10dB (2.97Gbit)
- Jitter
- < 0.20 UI (270Mbit)
- < 1.0 UI – Timing Jitter – (1.485Gbit – 2.97Gbit)
- < 2.0 UI – Timing Jitter – (11.88Gbit)
- < 0.20 UI – Alignment Jitter – (1.485Gbit – 2.97Gbit)
Performance
- Cable equalization Up to 320m using Belden 8281 (270Mbit)
- Up to 150m using Belden 1694A (1.485Gbit)
- Up to 120m using Belden 1694A (2.97Gbit)
- Up to 40m using Belden 1694A (11.88Gbit)
- Control Remote control via LynxCentraal
- Status monitoring (LED) Module edge LED indicators
Operation modes
- Single channel Fixed 1×8 operation
- Re-clocking Always re-clocking
Electrical Specifications
- Operating Voltage 12V DC
- Power Consumption 8W
- Safety IEC 60950/ EN 60950/ VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g, connector plate 50g
Ambient
- Temperature 5 to 40 °C (41 – 104 °F) Maintaining specifications
- Humidity 90% Max non condensing
