DVA 5760 L
1 to16 Analog Video/Sync Distribution Amplifier

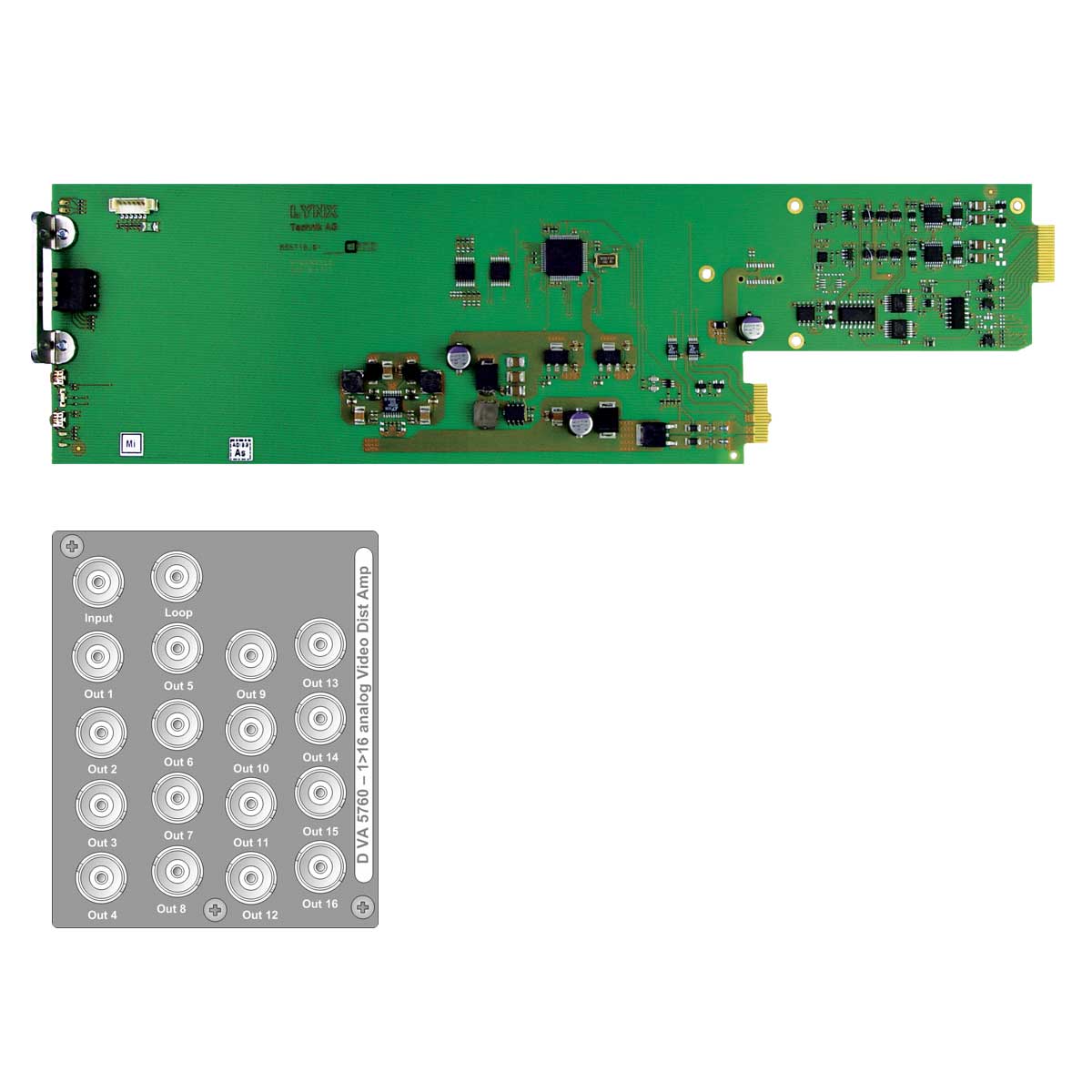

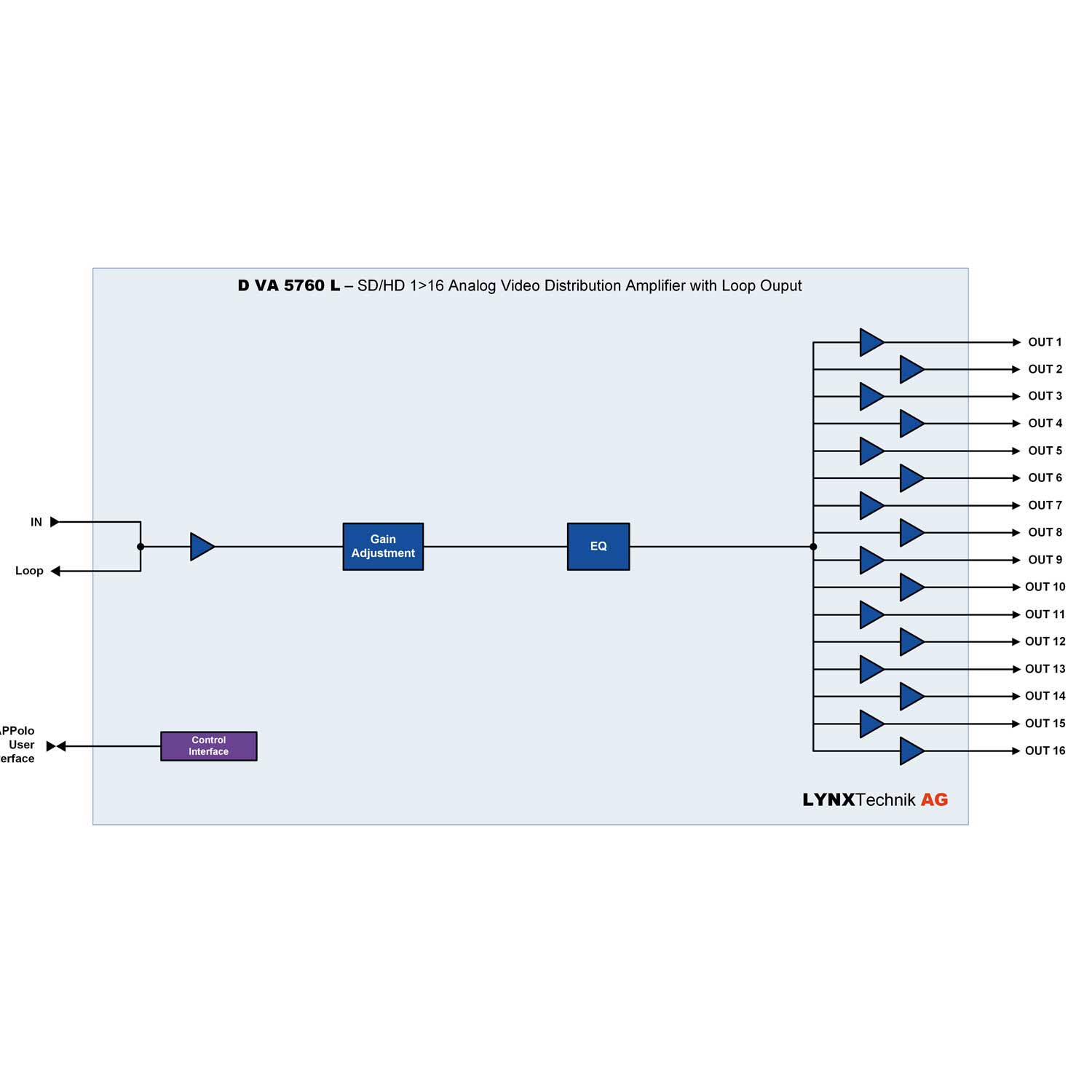

The D VA 5760 L is a flexible and cost-effective solution for high quality SD and HD analog video or sync distribution. The module has one input with passive loop through and 16 outputs. This module is ideally suited for demanding high quality broadcast and professional video applications.
Adjustable video gain and equalization is provided for system calibration. Inputs can be AC or DC differential coupled with or without input clamping (selected via the LYNX Centraal control system)
The module also functions as a Sync Distribution Amplifier for HD tri-level or SD bi-level sync inputs.
Microprocessor control and on board flash ram enable configurations and settings to be stored within the module (through power cycles and module removal). Local control capability is provided via the integrated dip switch.
The LYNX Centraal Control System manages remote control, status monitoring, and error reporting for the module.
Note. This module has a double width back-panel and will occupy 2 slots in the RFR 5018 US Rack Frame
Key Features
- High quality 1>16 distribution amplifier
- 30MHz wide band distribution amplifier for both SD and HD analog video sources
- Supports SD bi-level and HD tri-level analog sync
- Passive input loop through
- Signal presence detection
- Adjustable video gain
- Adjustable cable equalization
- Selectable input clamp (via control system)
- Selectable AC or DC coupled differential inputs (via control system)
- Microprocessor controlled with internal flash ram for storing settings
- Remote control, status monitoring and error reporting possible when used with LYNX Centraal control system.
- Hot Swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479321625 | DVA 5760 L | 1>16 Analog Video/Sync Distribution Amplifier |
| Options | ||
| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
Video Inputs
- Signal Type
- Video: SD or HD Analog video
- Sync: SD or HD (tri-level) Sync
- Input coupling Differential AC or DC (selectable via on-board jumpers)
- Input Impedance 75 Ohms
- Of inputs 1 (with passive loop through)
- Connector BNC
- Input clamp ON/OFF selection via on-board jumpers
- Return loss > 31dB to 10MHz
- Common mode rejection > 65dB to 10KHz
- Max input Level 2v (peak to peak)
Video Outputs
- Of Outputs 16 amplified and equalized, with 1 passive loop through of input.
- Signal Type SDTV/HDTV Analog video / Tri-level or Bi-level sync
- Return loss 46.5dB to 10MHz
- Phase match < 0.1 degrees at 4.43MHz
- Response variation < 0.15dB to 8 loads
- Connector BNC
- Output Impedance 75 Ohms
- Adjustment range -3.2dB to +3.6dB in 256 increments
Performance
- Frequency response +/- 0.1dB to 30MHz, -3dB at 66MHz
- Differential gain < 0.60%
- Differential phase < 0.4 degrees
- Hor / vert tilt < 0.5%
- Signal to noise ratio > 69dB to 17MHz (RMS noise/700mv, unweighted)
- Hum < 0.5 mv
- Gain -3.2dB to +3.6dB in 256 increments
- Cable Equalization Adjustable for up to 200m SDTV or 100m HDTV using Belden 8281
Electrical Specifications
- Operating Voltage 12 VDC
- Power Consumption < 3W
- Safety IEC 60950/ EN 60950/ VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g, connector plate 100g
Ambient
- Temperature 5°C to 40°C Maintaining specifications
- Humidity 90% Max non condensing
