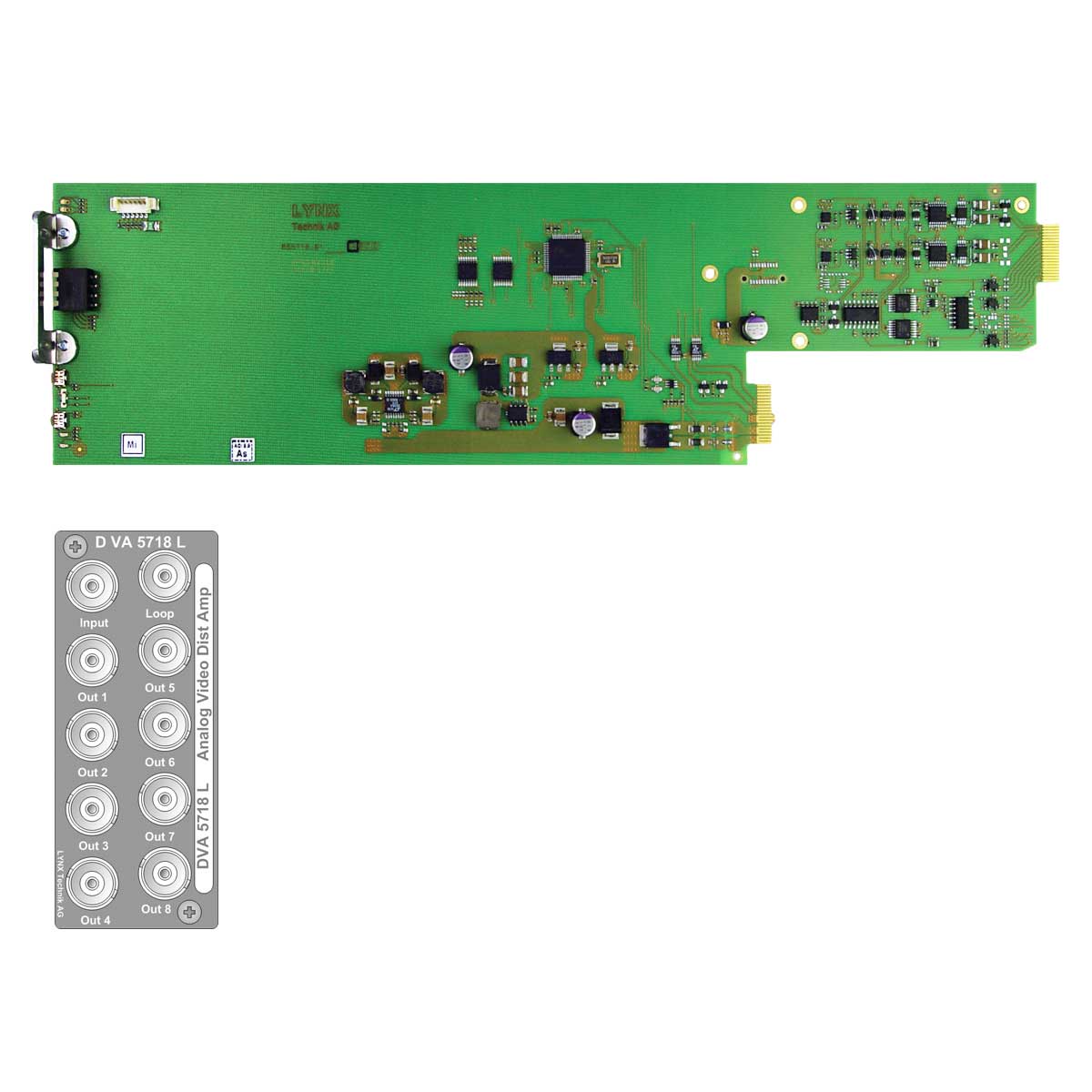

DVA 5718 L
1 to 8 Analog Video/Sync Distribution Amplifier

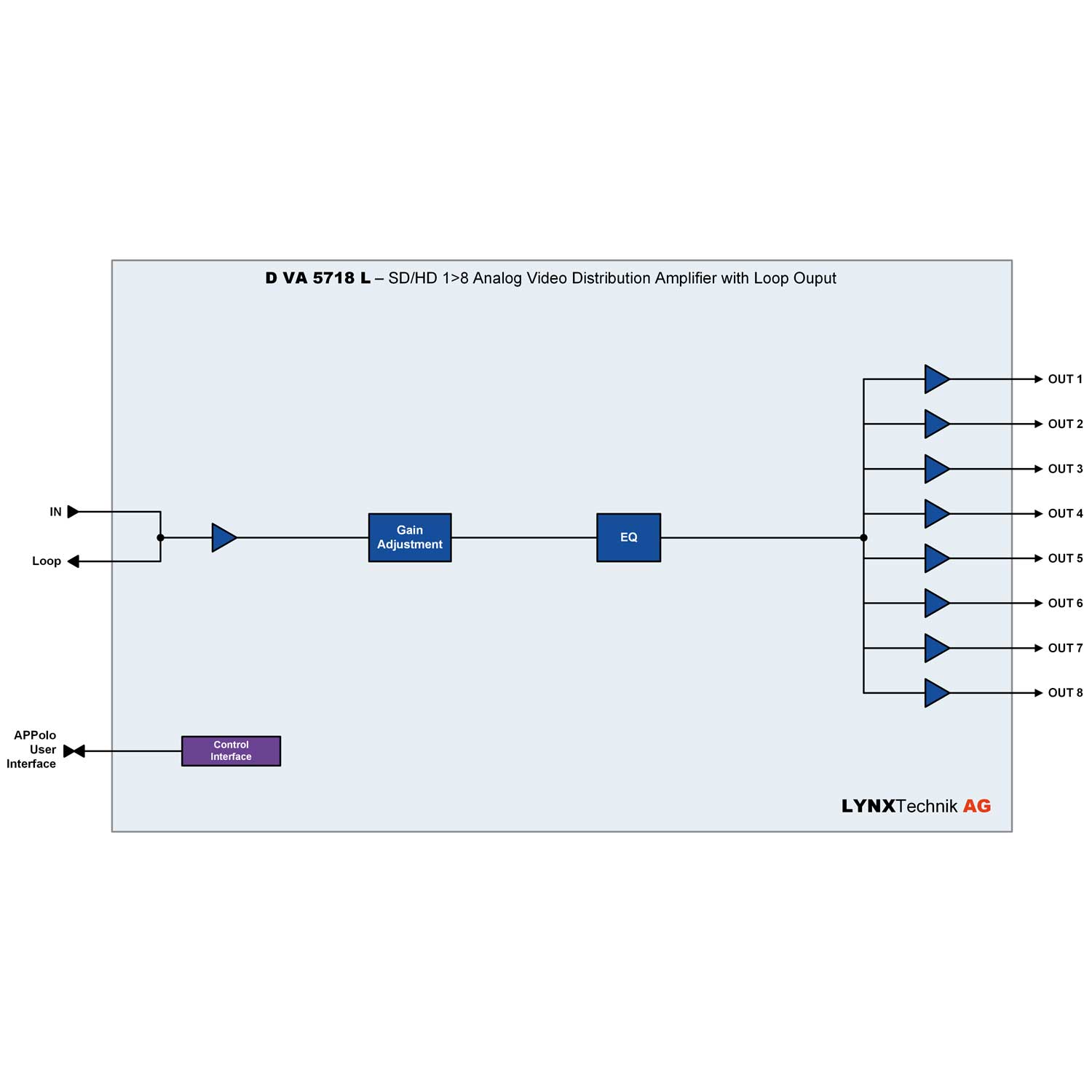

The D VA 5718 L is a flexible and cost effective solution for high quality SD and HD analog video or sync distribution. The module is a single channel 1>8 analog distribution amplifier with a passive loop through input. This module is ideally suited for demanding high quality broadcast and professional video applications.
Digitally adjustable video gain and equalization is provided for system calibration with input signal presence detection for SD or HD video. Inputs can be AC or DC differential coupled with or without input clamping (selected via control system)
The module can also function as a Sync DA, handling both tri-level HDTV sync or bi-level SDTV sync inputs.
Microprocessor control and on board flash ram enable configurations and settings to be stored within the module (through power cycles and module removal).
Local control capability is provided via the integrated dip switches. Remote control, status monitoring and error reporting is possible when using the LYNX Centraal control system.
Key Features
- High quality 1>8 video distribution
- Wide band amplifier for both SD and HD analog video
- Also use as sync DA, for tri-level and Bi-level sync
- Passive loop through input
- Signal presence detection
- Adjustable video gain
- Adjustable Cable equalization
- Selectable input clamp. (via control system)
- Selectable AC or DC coupled inputs (via control system)
- Remote control and status monitoring possible when used with the LYNX Centraal control system
- Hot Swappable.
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479321601 | DVA 5718 L | 1>8 Analog Video/Sync Distribution Amplifier (SD/HD) |
| Options | ||
| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
Video Inputs
- Signal Type
- Video: SD or HD Analog video
- Sync: SD or HD (tri-level) Sync
- Input coupling Differential AC or DC (selectable via on-board jumpers)
- Input Impedance 75 Ohms
- Of inputs 1 (with passive loop through)
- Connector BNC
- Input clamp ON/OFF selection via on-board jumpers
- Return loss > 31dB to 10MHz
- Common mode rejection > 65dB to 10KHz
- Max input Level 2v (peak to peak)
Video Outputs
- Of Outputs 8 amplified and equalized, with 1 passive loop through of input.
- Signal Type SDTV/HDTV Analog video / Tri-level or Bi-level sync
- Return loss 46.5dB to 10MHz
- Phase match < 0.1 degrees at 4.43MHz
- Response variation < 0.15dB to 8 loads
- Connector BNC
- Output Impedance 75 Ohms
- Adjustment range -3.2dB to +3.6dB in 256 increments
Performance
- Frequency response +/- 0.1dB to 30MHz, -3dB at 66MHz
- Differential gain < 0.60%
- Differential phase < 0.4 degrees
- Hor / vert tilt < 0.5%
- Signal to noise ratio > 69dB to 17MHz (RMS noise/700mv, unweighted)
- Hum < 0.5 mv
- Gain -3.2dB to +3.6dB in 256 increments
- Cable Equalization Adjustable for up to 200m SDTV or 100m HDTV using Belden 8281
Electrical Specifications
- Operating Voltage 12 VDC
- Power Consumption < 3W
- Safety IEC 60950/ EN 60950/ VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g, connector plate 50g
Ambient
- Temperature 5°C to 40°C Maintaining specifications
- Humidity 90% Max non condensing
