DAD 5220
Dual AES Audio Distribution Amplifier

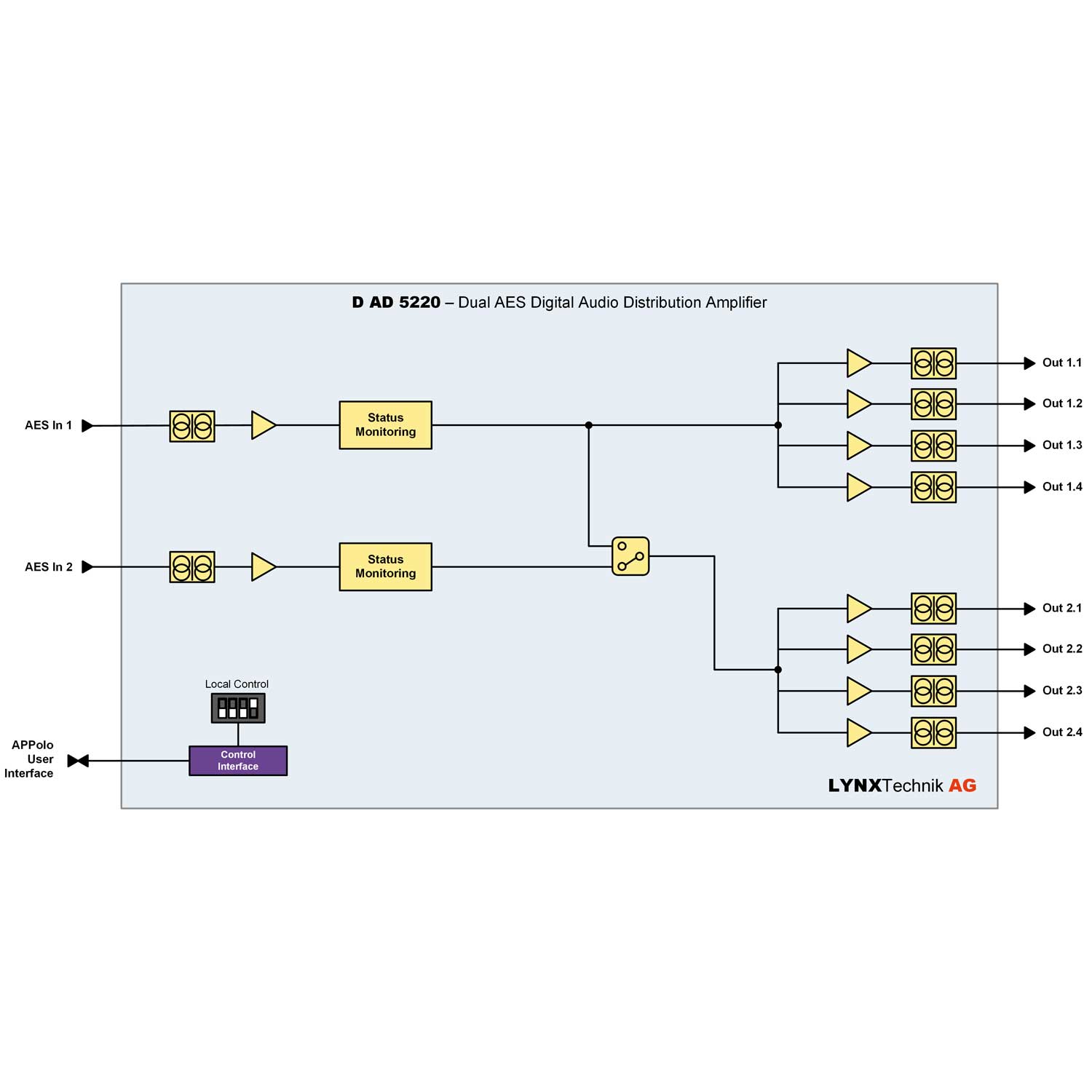

Featuring dual mode operation the D AD 5220 is a flexible and cost effective solution for AES digital audio distribution. The D AD 5220 can be used as a single 1>8 amplifier or a dual channel 1>4 device. This module is ideally suited for the demanding requirements of broadcast and professional audio applications.
Each AES input can have independent sample rates ranging between 32KHz to 108KHz. Flexible back plane options allow for three connectivity choices, SubD or Weco for balanced AES3 signals and BNC for single ended AES3id signals. All inputs and outputs are isolated using transformers.
Microprocessor control and on board flash ram enable configurations and settings to be stored within the module (through power cycles and module removal). Local control capability is provided via the integrated dip switch. Remote control, status monitoring and error reporting is possible when using the LYNX Centraal control system.
Key Features
- Dual mode operation 1>8 or dual 1>4
- Signal presence detection
- Supports sample rates between 32KHz and 108KHz (independent for each input channel)
- Three connection panel options
- Balanced AES3 or single ended AES3id connectivity
- Fully isolated transformer coupled inputs and outputs
- Remote control and status monitoring when used with the LYNX Centraal control system
- Hot Swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479321755 | DAD 5220 B | Dual 1>4 or 1>8 AES Audio Distribution Amplifier (unbalanced BNC) |
| 4250479321786 | DAD 5220 D | Dual 1>4 or 1>8 AES Audio Distribution Amplifier (Balanced – SubD) |
| 4250479321793 | DAD 5220 S | Dual 1>4 or 1>8 AES Audio Distribution Amplifier (Balanced – Weco) |
| Options | ||
| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
Audio Inputs
- Signal Type
- DAD 5220 S/D = AES3 balanced
- DAD 5220 B = AES3id single ended
- of inputs 2
- Input coupling Isolated with Transformers
- Input Impedance
- DAD 5220 S/D = 110 Ohms
- DAD 5220 B = 75 Ohms
- Connector
- DAD 5220 S = Weco screw terminal
- DAD 5220 D = 15 pin SubD female
- DAD 5220 B = BNC
- Return loss < 25dB (32KHz to 100KHz)
Audio Outputs
- Signal Type
- DAD 5220 S/D = AES3 balanced
- DAD 5220 B = AES3id single ended
- of outputs 8
- Output coupling Isolated with Transformers
- Output Impedance
- DAD 5220 S/D = 110 Ohms
- DAD 5220 B = 75 Ohms
- Connector
- DAD 5220 S = Weco screw terminal
- DAD 5220 D = 25 pin SubD female (tascam pinout)
- DAD 5220 B = BNC
Performance
- Sample rate 32KHz to 108KHz independent for each channel
- Jitter < 0.025%
- Status monitoring (LED) AES parity / Signal presence
- Operating Modes
- Dual 2 independent audio input channels with 4 outputs each
- Single 1 audio input channel with 8 outputs
Electrical Specifications
- Operating Voltage 12 VDC
- Power Consumption < 3W
- Safety IEC 60950/ EN 60950/ VDE 0805
Mechanical
- Size 283mm x 78mm
- Weight CardModule 120g, connector plate 50g
Ambient
- Temperature 5°C to 40°C Maintaining specifications
- Humidity 90% Max non condensing
