DAA 5320
Dual Analog Audio Distribution Amplifier
Featuring dual mode operation the D AA 5320 is a flexible and cost effective solution for high quality analog audio distribution. The D AA 5320 can be used as a single 1>8 or a dual channel 1 > 4 device. Balanced audio inputs and outputs ensure high quality low noise performance ideal for demanding broadcast and professional audio applications.
Digitally adjustable analog gain adjustments are provided for system calibration with input presence detection provided for each channel. Two back-panel configurations provide convenient choices for system connectivity.
Microprocessor control and on board flash ram enable configurations and settings to be stored within the module (through power cycles and module removal).
Local control capability is provided via the integrated dip switch and multifunction switch. Remote control, status monitoring and error reporting is possible when using the LYNX Centraal control system.
Key Features
- Dual mode operation 1>8 mono or dual 1>4 stereo
- Balanced analog audio inputs and outputs
- Input presence detection
- Independently adjustable gain for each input channel

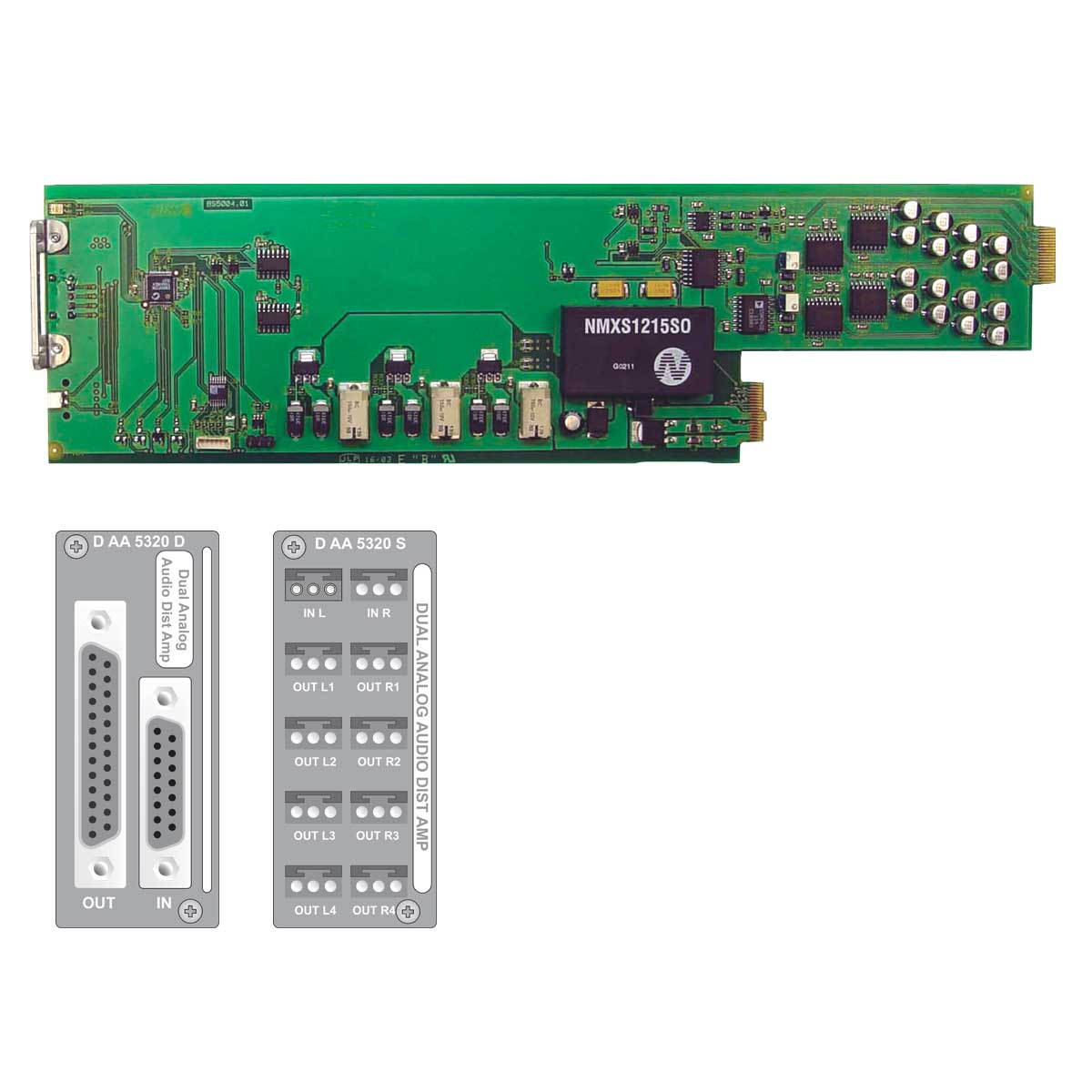

- Two back-panel (connection) options – Screw terminal (Weco) or Sub D
- Remote control and status monitoring when used with the LYNX Centraal control system
- Hot Swappable
Ordering Information
| UPC / EAN | Model | Description |
|---|---|---|
| 4250479321717 | DAA 5320 D | Dual 1>4 or 1>8 Analog Audio Distribution Amplifier (SubD) |
| 4250479321724 | DAA 5320 S | Dual 1>4 or 1>8 Analog Audio Distribution Amplifier (Weco) |
| Options | ||
| 4250479324411 | RFR 5018 US | 2RU 19″ Rack Frame + PSU for up to 10 Modules |
Audio Inputs
- Signal Type: Balanced analog audio
- Input coupling: AC
- Input Impedance: 20K Ohms
- Of inputs: 2
- Connector
- D version – Female 15 pin Sub D connector
- S version – Individual screw terminal type connections (Weco)
- Max input Level + 28 dBu
- Connector
Audio Outputs
- Of Outputs 8
- Signal Type Balanced analog audio
- Connector
- D version – Female 25 pin Sub D connector (Tascam pinout)
- S version – Individual screw terminal type connections (Weco)
- Output Impedance 50 Ohms
- Max output level + 28 dBu (into 10K Ohms)
- Connector

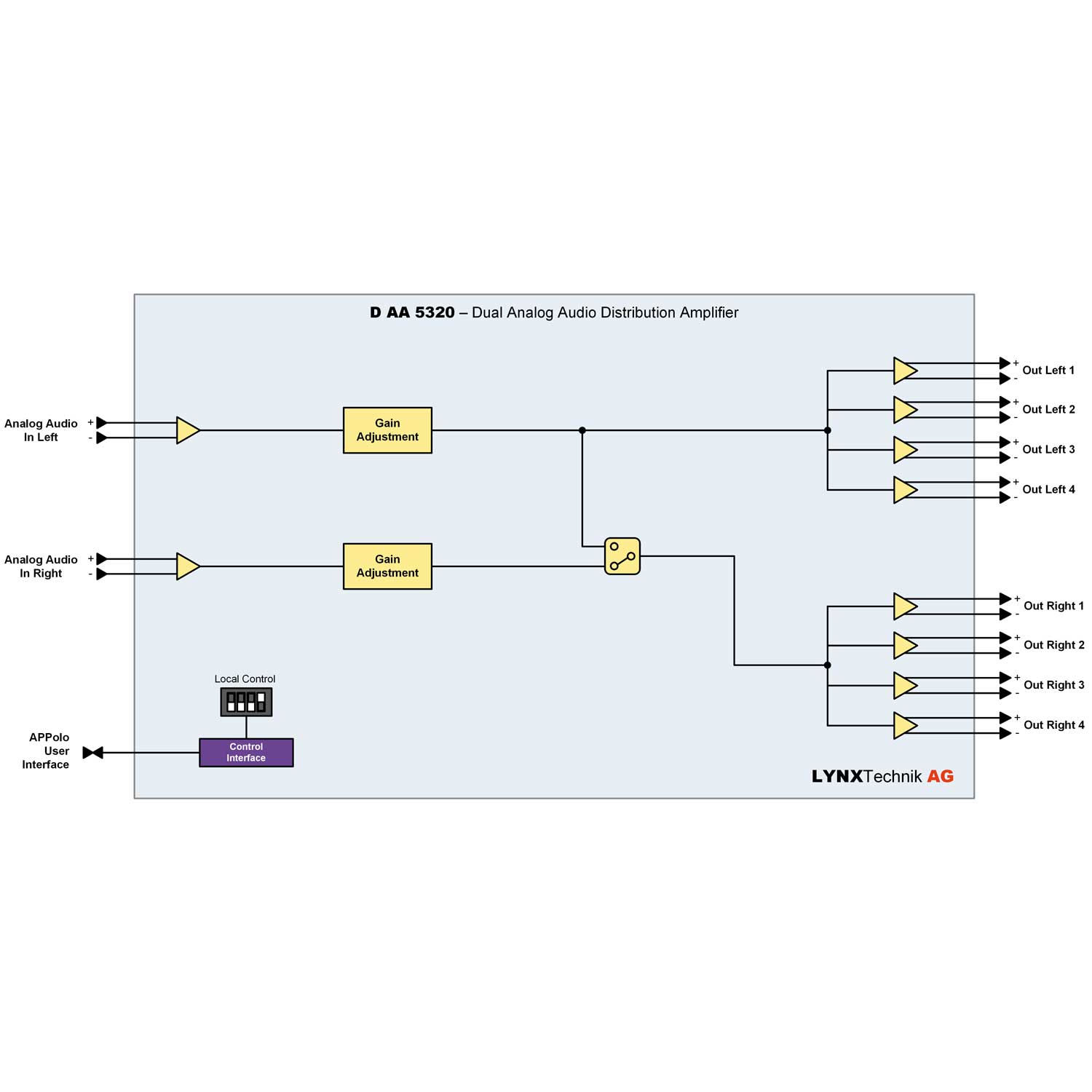

Operation Modes
- Single (Mono) Single 1>8 distribution amplifier
- Dual (Stereo) Dual 1>4 distribution amplifier
Performance
- Gain adjustment range – 80dBu to + 30dBu (in steps of 0.5dB)
- Noise floor < -90dBu (20Hz to 20KHz “A” weighted)
- Distortion < 0.002% (20Hz to 20KHz @ 24 dBu)
- Frequency Response +\- 0.1dB (20Hz to 20KHz @ 24 dBu)
- Crosstalk < -90dBu (20Hz to 20KHz)
- Common mode rejection > – 75dB (20Hz to 20 KHz
Electrical Specifications
- Operating Voltage 12 VDC
- Power Consumption < 3W
- Safety IEC 60950/ EN 60950/ VDE 0805
Mechanical
- Size: 283mm x 78mm
- Weight: CardModule 120g, connector plate 50g
Ambient
- Temperature 5°C to 40°C Maintaining specifications
- Humidity 90% Max non condensing
