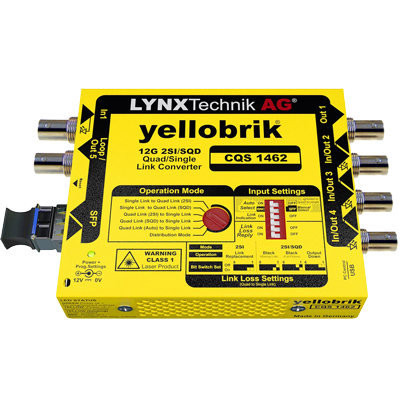

The CQS 1462 replaces the popular CQS 1441 yellobrik and is the perfect bridge between single link 12G SDI and quad 3G SDI signals. Typical applications include the conversion between legacy quad 3G 4K transport systems (SQD or 2SI) into single link 12G SDI signals.
Five conversion modes are supported:
- Single 12G-SDI to Quad 3G-SDI Level A
- Single 6G-SDI to Quad 1.5G-SDI
- Quad 3G-SDI Level A to Single 12G-SDI
- Quad 1.5G-SDI to Single 6G-SDI
- Distribution Amplifier mode (1×4) 12G, 6G, 3G, 1.5G
This new yellobrik supports both Square Division (SQD) and Two Sample Interleave (2SI) input pixel mapping. The optional fiber I/O allows for additional connectivity possibilities, which include CWDM options.
This compact yellobrik includes local controls directly on the module itself, which removes the need for a PC to make basic settings. However, it is also fully compatible with the intuitive and user-friendly yelloGUI and LynxCentraal software, which gives users access to a host of advanced settings, adjustments, configuration, and monitoring features. yelloGUI and LynxCentraal are complementary to all yellobrik users.
For larger and more integrated system solutions, the new CQS 1462 yellobrik can be rack mounted in the RFR 1000-1 or the new RFR 1200 rack frames. Adding the RCT 1012 Rack Controller connected to a network allows the RCT 1012 to automatically discover the connected yellobriks and display them in the LynxCentraal control software. Further integration is achieved by adding the SVR 1000 Server module to the system which allows an unlimited number of workstations access to the system for configuration and monitoring. The SVR 1000 module also facilitates integration with third-party SNMP automation systems.
