Built for Systems.
Ready for Throw-Down.

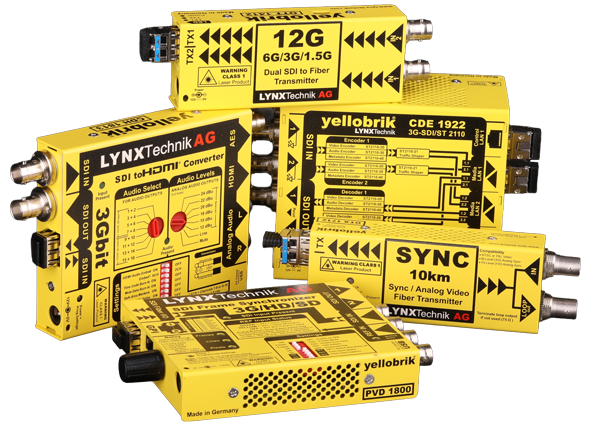

Professional Signal Processing with yellobrik®
From permanent installations to rapid field deployment, yellobrik delivers reliable, broadcast-quality performance in any environment.
Not Just Another “Brick”
Most modular converters are designed only for throw-down use – then awkwardly adapted to mount in a rack.
yellobrik was conceived and engineered from day one to be a system solution:
- 19” Rack frame for up to 14 yellobriks
- Centralized AND redundant power
- Remote monitoring and control
- Professional, clean installations
- Industry leading reliability and performance
One Platform.
Two Workflows
Use yellobrik as:
A Scalable System
Rack-mounted, centrally powered, fully managed
A Portable Solution
Standalone, fast to deploy, ready anywhere
No compromises. No workarounds
Used worldwide in broadcast, post, live production, and professional AV.
- Robust, broadcast-grade reliability
- Long-term product support
- Made in Germany
- Thousands of installations

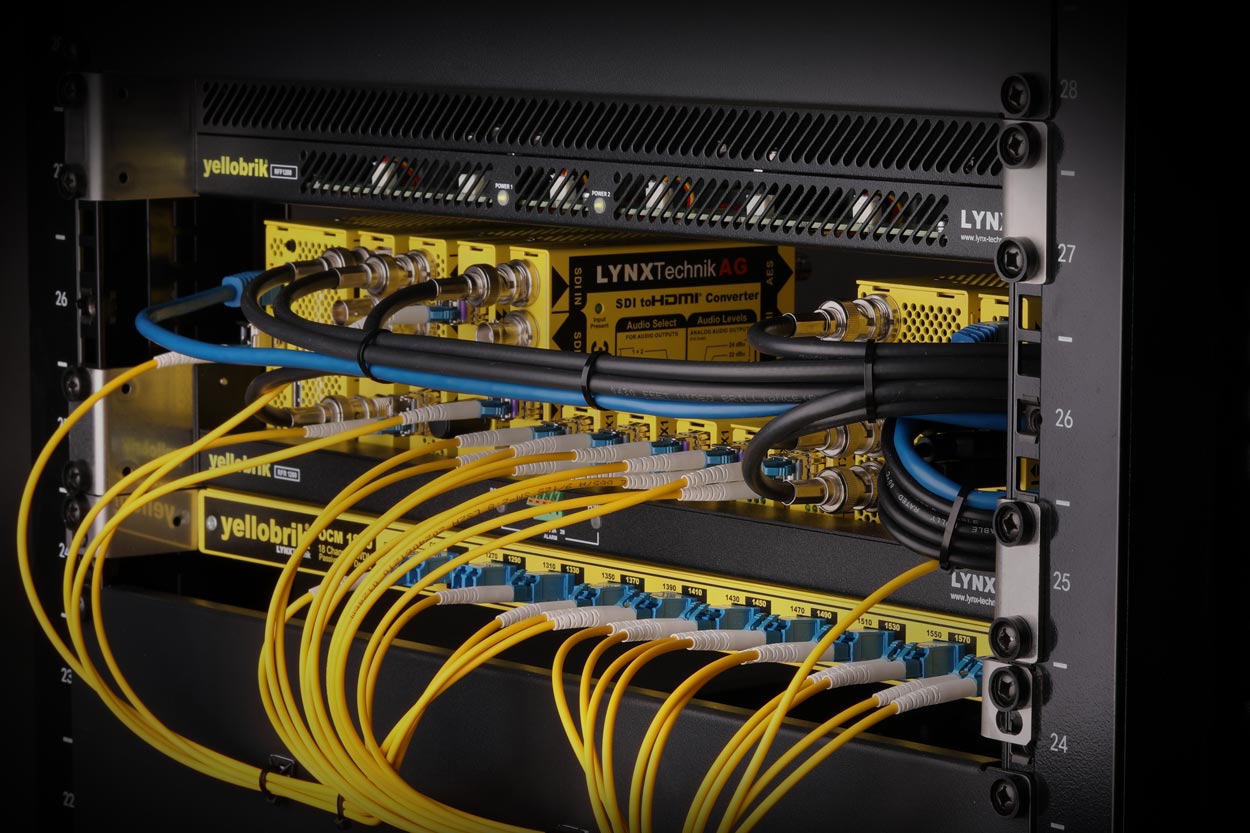

The yellobrik System
Fan Tray
Top down cooling
for high power systems
Rack
Controller
for remote control
and monitoring
Power Supply
Mounting
For Primary
and Redundant
power in rear
Rack Frame
For up to 14 modules
with central and
redundant power
Optical Multiplexers
with front side
connectors
Recessed Rack
for frontside connections
Rack Mountable
The RFR 1200 19” rack frame forms the backbone of a yellobrik installation, supporting up to 14 modules in a compact 1RU design. An integrated central power bus provides direct plug-in connections – simply slide modules into place and secure them with the supplied mounting clips for fast, reliable deployment.

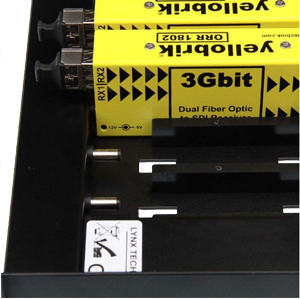

Rack Power Connector

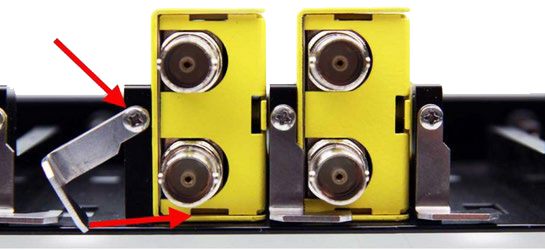

Modules clamped in place using supplied brackets.
Centralized power distribution supports optional full redundancy with automatic changeover and external alarm triggering for system monitoring. Power options include the RPS A100 US 100W and higher-capacity RPS A200 US 200W supplies for high-power configurations.
Power supplies can be mounted remotely or secured within the rack using optional RXT 1001 mounting brackets, keeping the rear of the frame clean while maintaining the 1RU footprint.
For higher-density systems with increased power consumption and heat output, the optional RFF 1200 fan tray provides active cooling, directing airflow down through the modules to help maintain optimal operating temperatures.
2 x RXT 1001 shown with RFR 1200 Frame
(replaces existing rack ears)
Supporting Fiber Installations

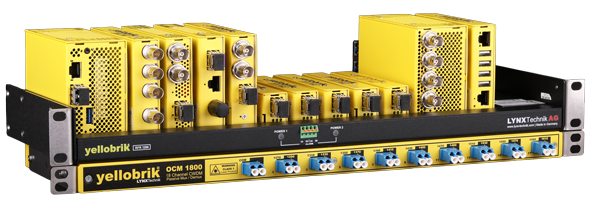

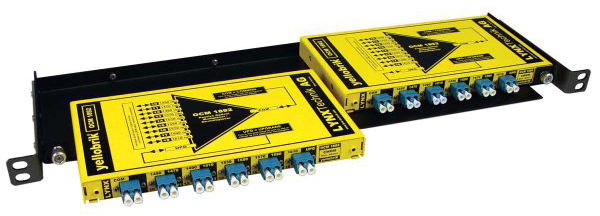

We also offer compact, rack-mount optical multiplexers designed for fiber installations. These units mount neatly below the rack frame with front-facing connections that align with the modules’ fiber ports. Both the rack and multiplexers can be recessed within the frame to help protect fiber connections and maintain a clean installation.
Remote Control and Monitoring

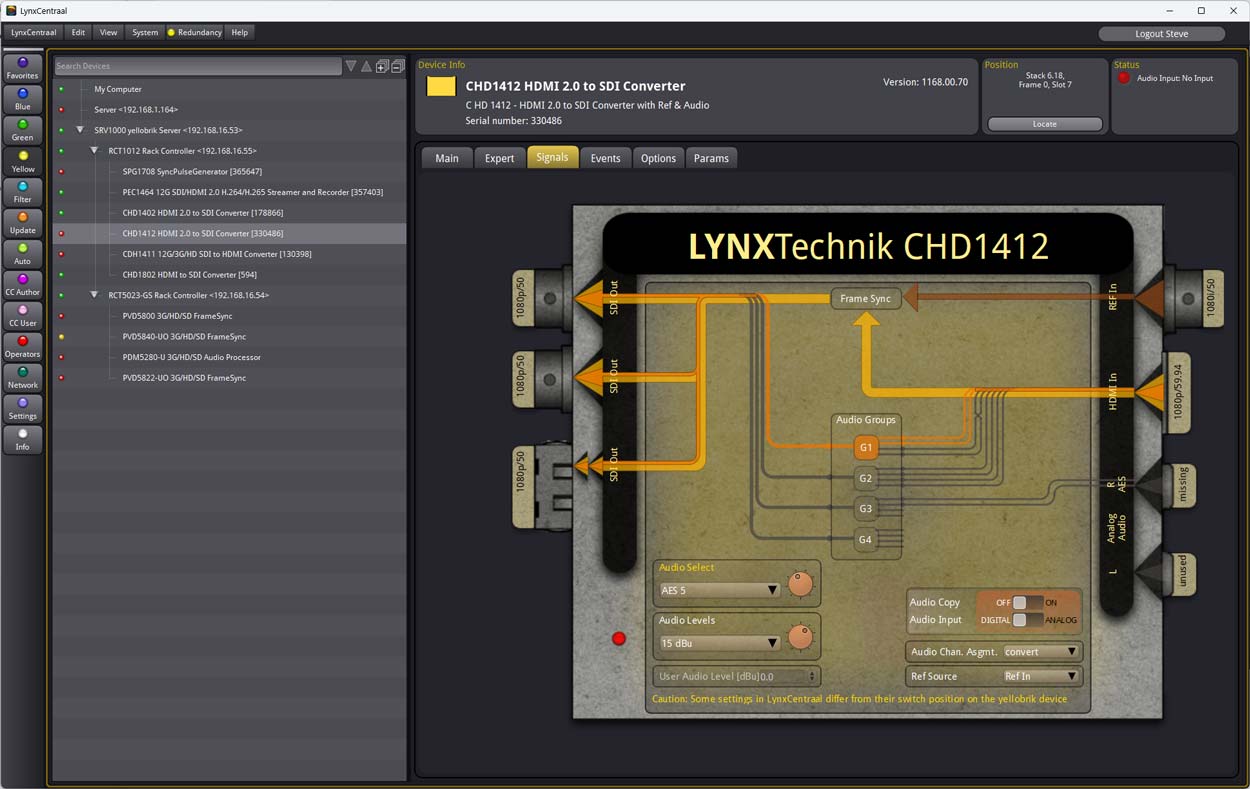

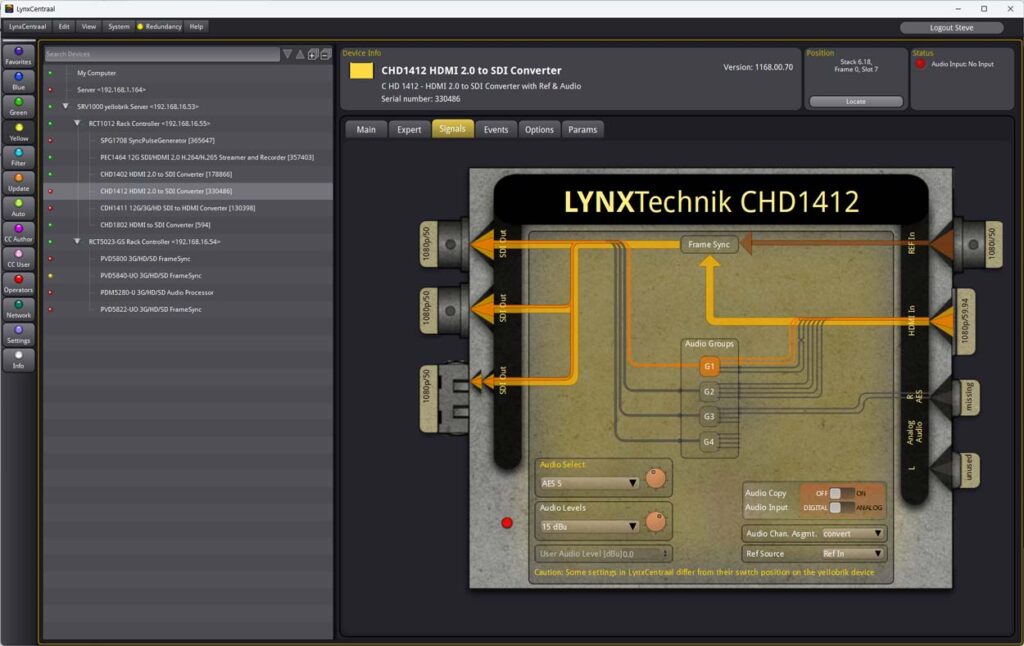

The more complex yellobrik modules have many settings, external switches, and internal software settings. With the addition of our RCT 1012 rack controller all module settings can be accessed and changed via our LYNX Centraal control software.
For larger systems, a server module SRV 1000 can be added to a system allowing central control of up to 256 frames and SNMP third party interfacing. This also includes access to AutoControl and CustomControl in LYNX Centraal.
Build Your Next System with Confidence
Whether you need one module or a full infrastructure, our team can help you configure the right solution.
