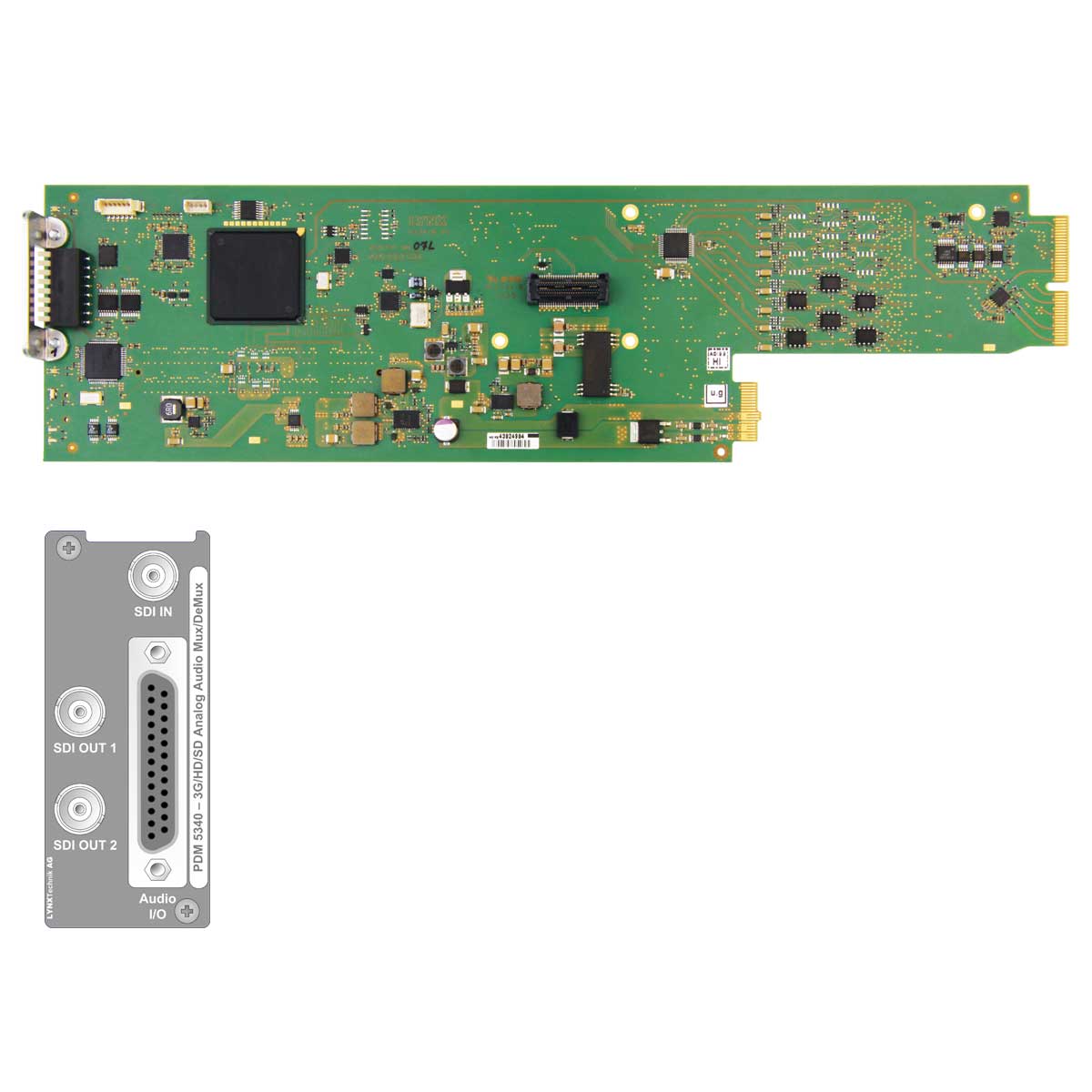

PDM 5340

4 Channel Analog Audio Embedder / De-embedder (SD/HD/3G)

Specialty

Analog Audio, De-embedder, embedder

Documentation

Features

  • Supports SDI formats up to 3Gbit (auto-detect)
  • Switch between 4 channel embedder or de-embedder
  • 20 channel audio processing stage with adjustable gain, phase invert, mute and stereo to mono mixdown. Also provides overload and silence detection
  • 20 x 4 mono output crossbar for external audio channel assignment
  • 20 x 16 mono crossbar for embedder audio assignments
  • Remote control and status monitoring with LYNX APPolo control system
  • Hot swappable

Description

The P DM 5340 is a versatile 4 channel analog audio embedder or de-embedder, which can be used to address a variety of audio issues in broadcast. The module offers multi-format SDI support up to 3Gbit/s (auto-detect).

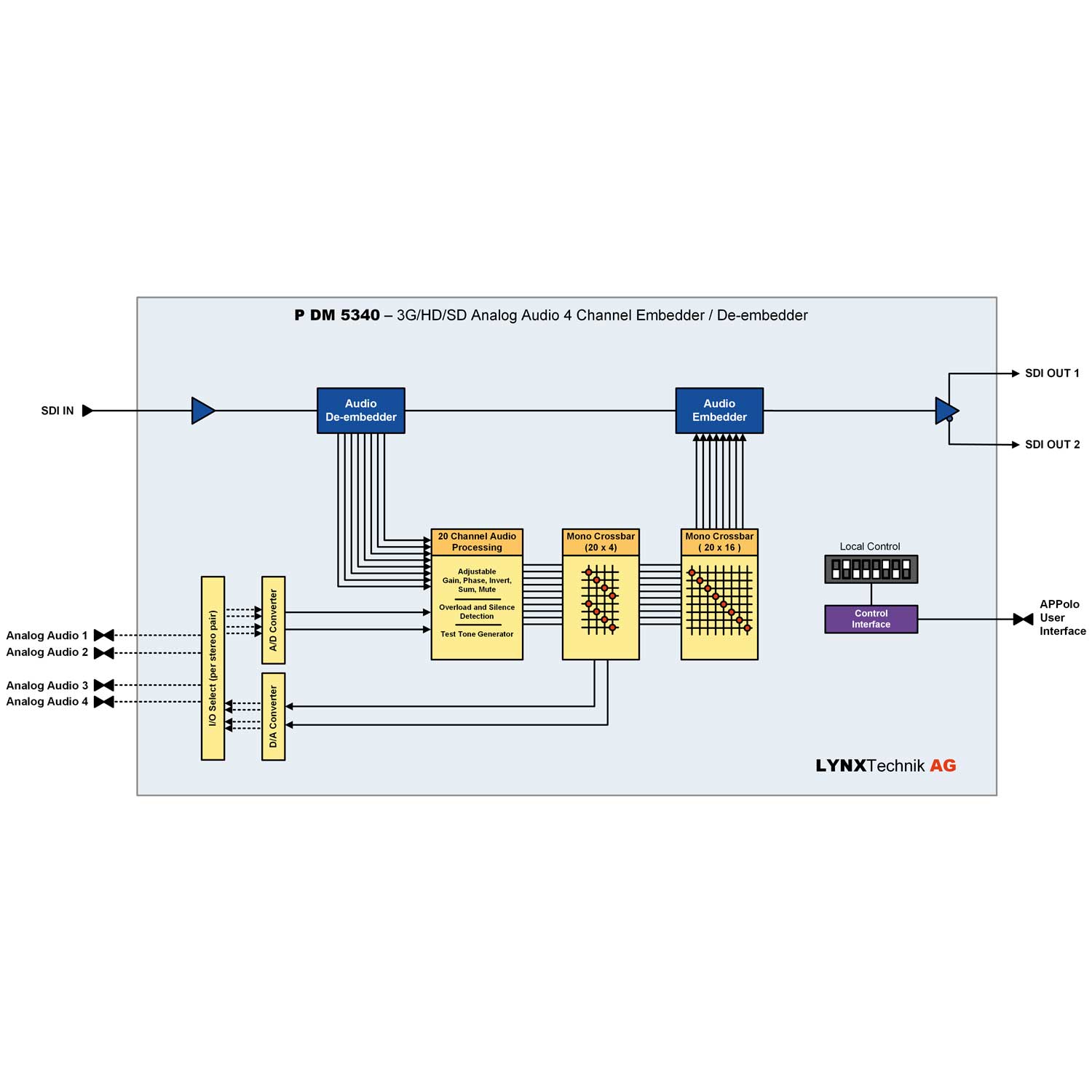

The module can be switched between a 4 channel embedder or de-embedder, or used as a combination of both. 16 channels of audio are always de-embedded from the SDI input signal and passed into an audio processing stage. In embedder mode, 4 channels of external audio are passed into the audio processing stage. Audio processing includes adjustable gain, phase invert and mute for all 20 channels as well as a selectable mono mixdown function for each left and right pair.
The processed audio is passed into further crossbars where the audio for the embedder, and / or audio for the external outputs can be user mapped.

Microprocessor control and on-board Flash RAM enable configurations and settings to be stored within the module.

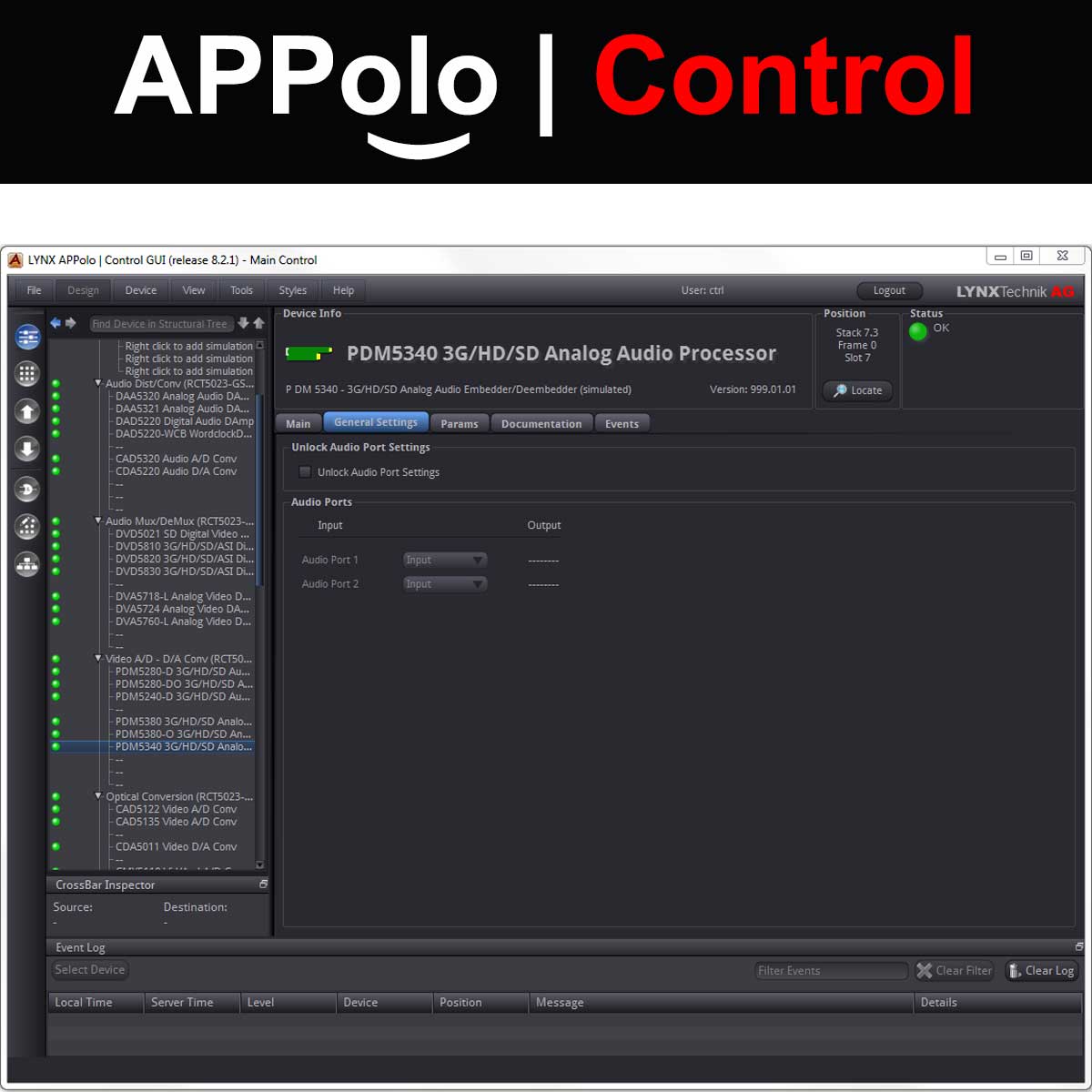

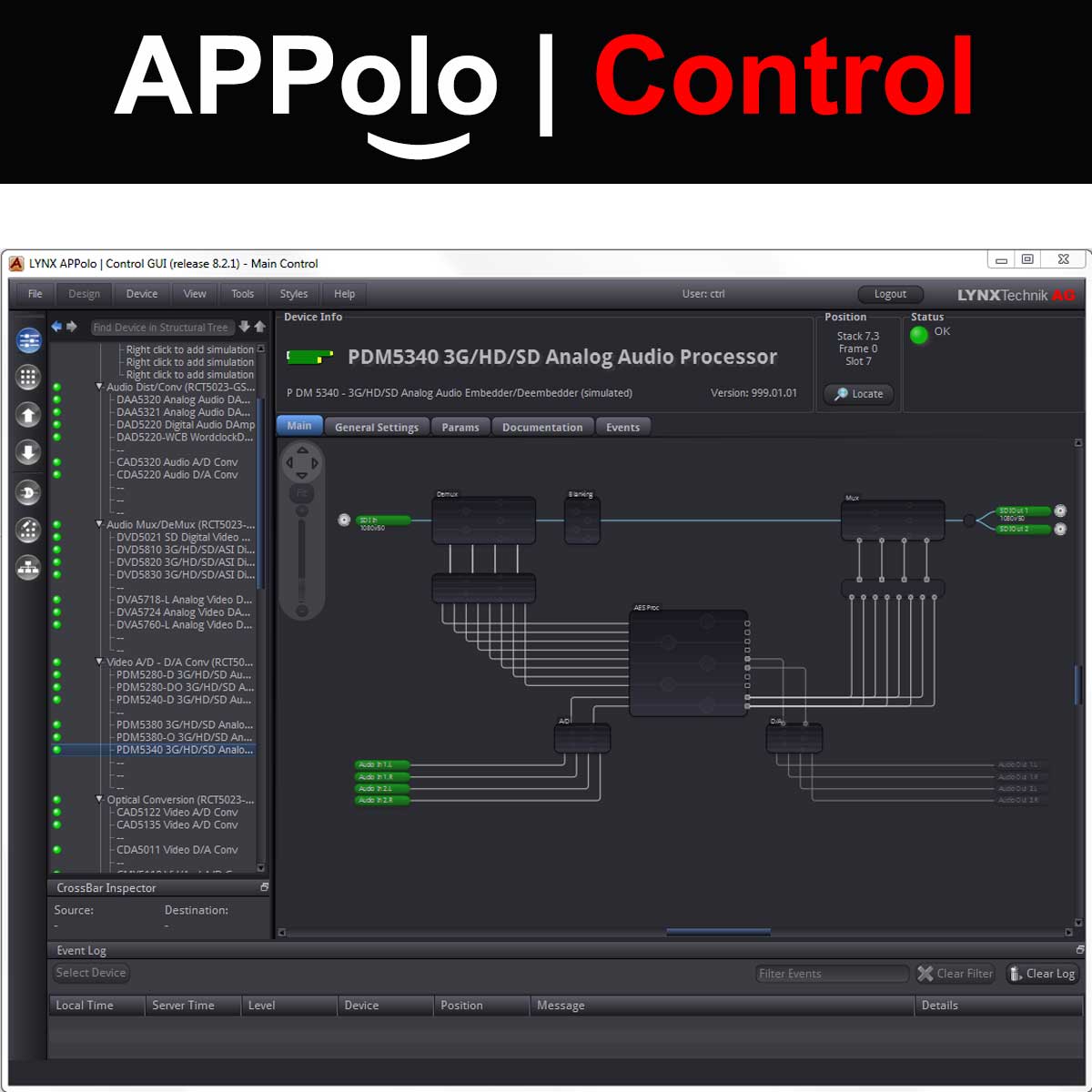

Remote control, status monitoring and error reporting is possible with the LYNX APPolo Control System.

Accessories

Ordering Information

UPC / EANModelDescription
4250479321939PDM 53404 Channel Analog Audio Embedder / De-embedder
Options
4250479321410RFR 5041 US19" 1RU Rack Frame for 4 Modules + PSU
4250479324411RFR 5018 US2RU 19" Rack Frame + PSU for up to 10 Modules
