OSP 5818

1 > 8 Fiber Optic Splitter (8 x 12.5% Outputs)

Additional information

Specialty

Fiber

Documentation

Product Documentation

Features

  • Precision 1>8 optical splitter
  • 12.5% / 12.5% / 12.5% / 12.5% / 12.5% / 12.5% / 12.5% / 12.5% split ratio
  • LC – PC connections (singlemode)
  • Compatible will all Series 5000 rack frames (2RU and 1RU)
  • Occupies one card slot

Description

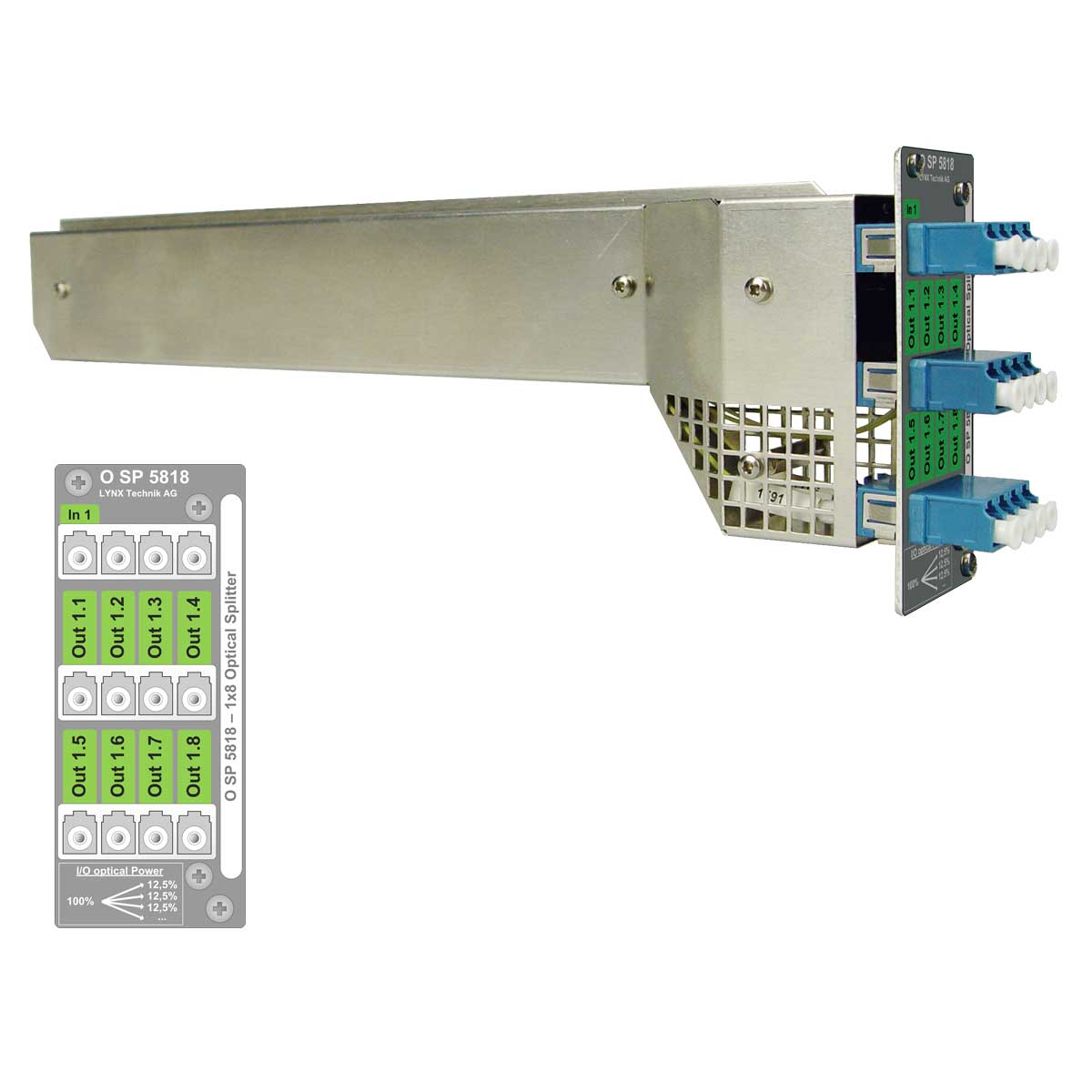

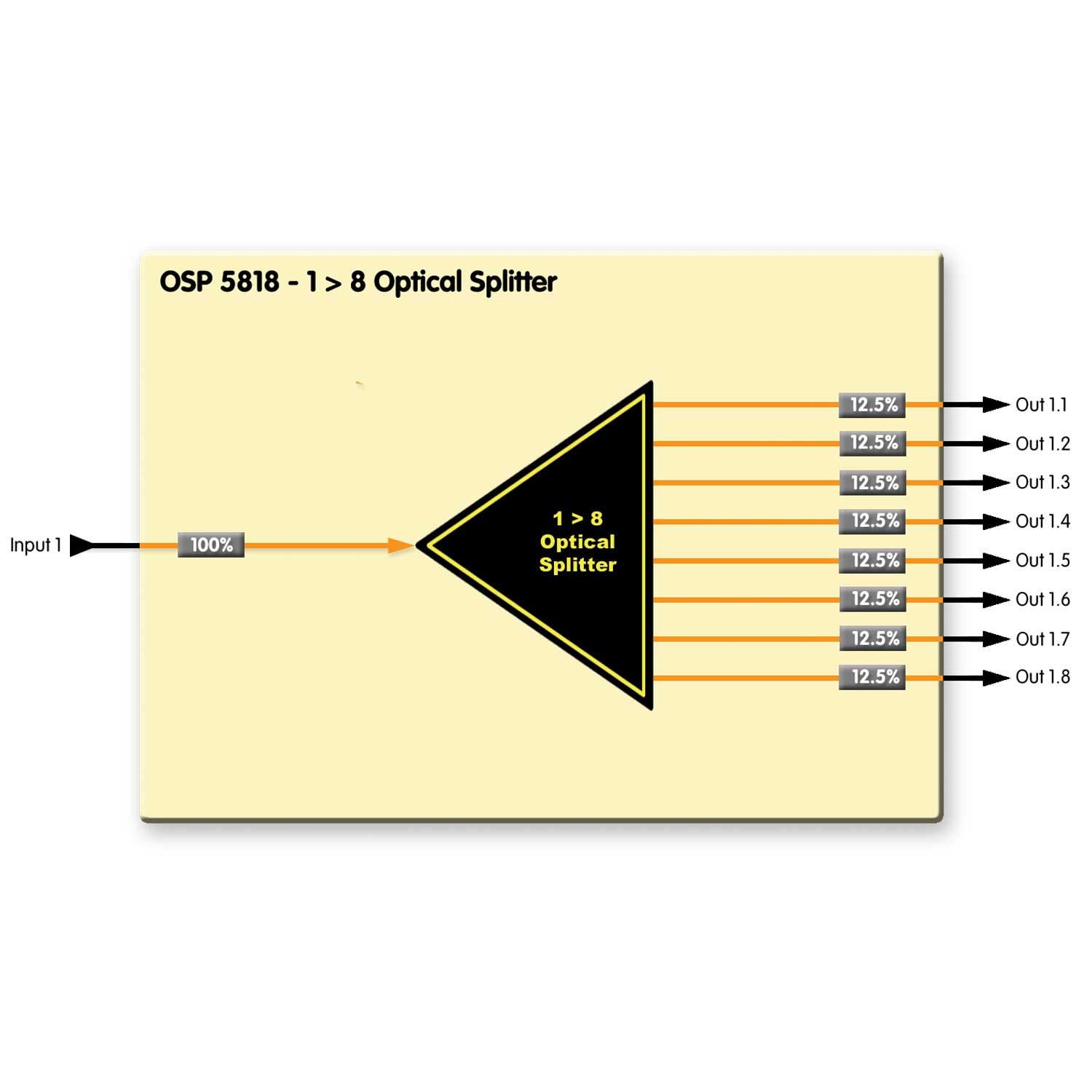

The OSP 5818 is a 1 > 8 optical splitter / combiner. The optical input is split into 8 outputs, each one having 12.5% of the input power.

The module is passive in operation, meaning it requires no power, and is mechanically compatible with all Series 5000 rack frames and installs from the rear of the rack.

Accessories

RFR 5013

19″ 2RU Rack Frame for Passive Fiber Modules

Ordering Information

UPC / EANModelDescription
4250479322332OSP 58181>8 Optical Splitter (8 x 12.5%)
Options
4250479321373RFR 501319" 2RU Rack Frame for Passive Fiber Modules
4250479318182LC/LC SIMLC to LC Fiber Patch Cable (0.5m)
